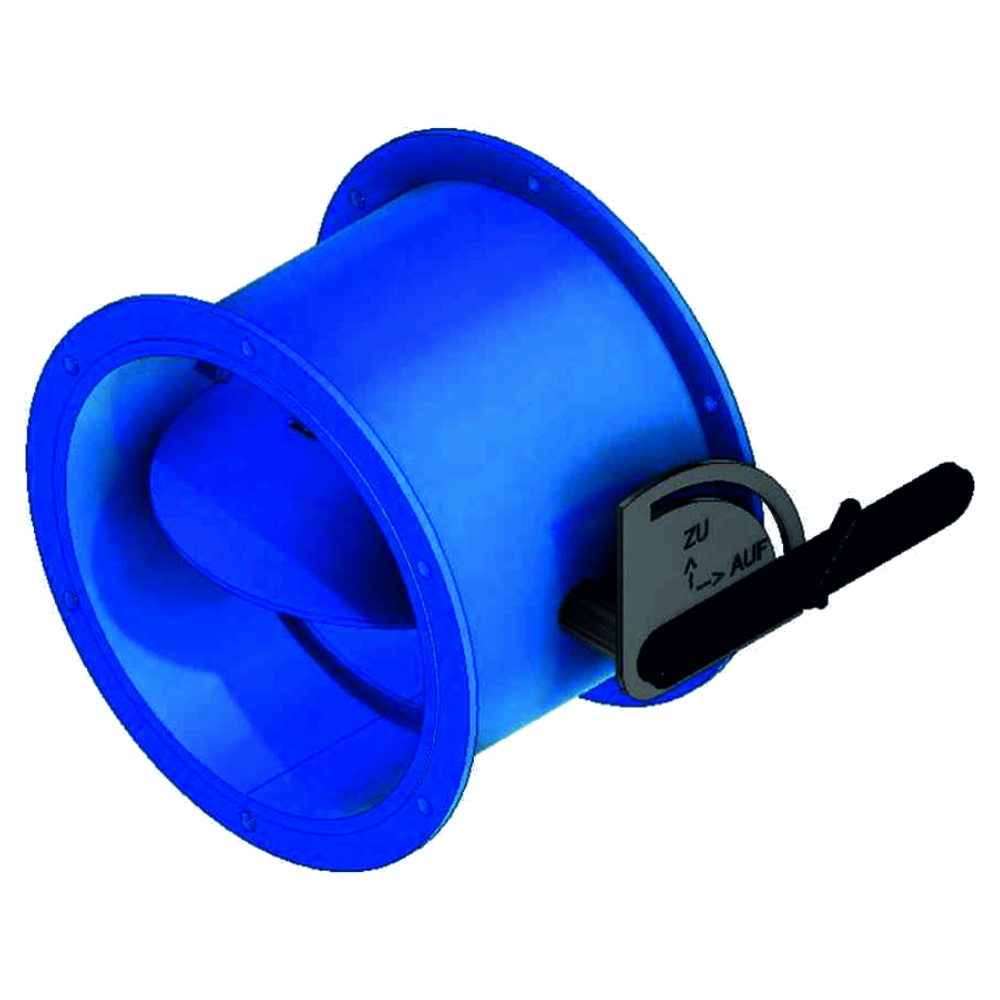

Valve standard type Helix-air

Price on request or after logging in

  • priming coated
  • flanges RII DIN 24154
  • manual acutator for tightening
  • with loose flange connection

SKU: N/A Category:

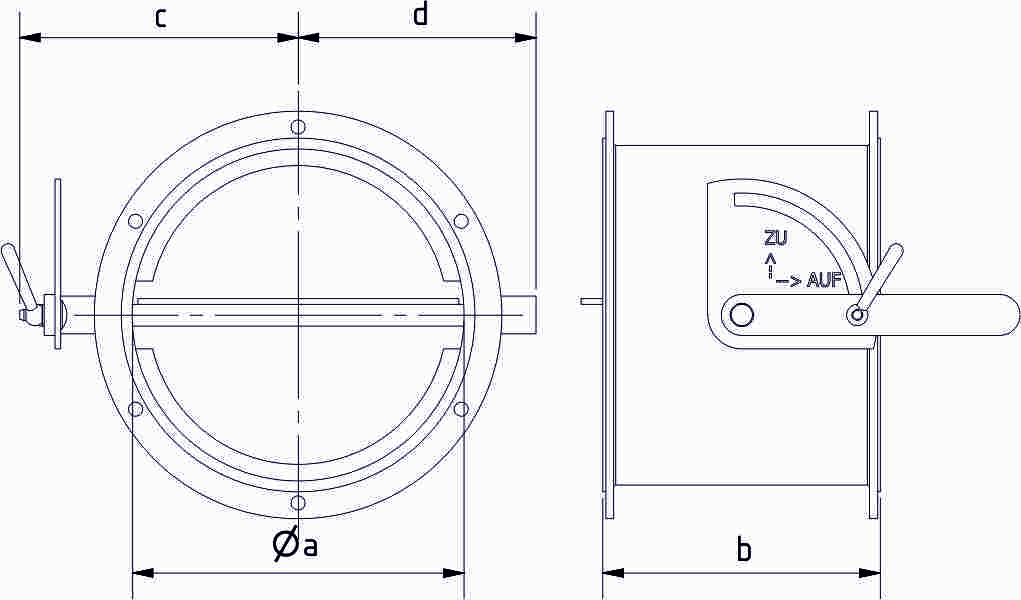

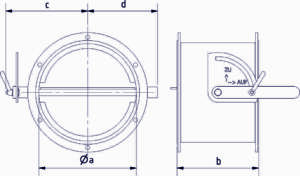

TypeArticlenumberOld Articlenumberabcdtkg
DN 160 1002616 4006030015664 159 mm 200 mm 239 mm 129 mm 2 mm 7,0
DN 180 1002617 4006030015665 179 mm 200 mm 249 mm 249 mm 2 mm 7,7
DN 200 1002618 4006030015666 200 mm 200 mm 260 mm 150 mm 2 mm 8,4
DN 250 1002619 4006030015667 250 mm 200 mm 285 mm 175 mm 2 mm 10,3
DN 280 1002620 4006030015668 280 mm 200 mm 300 mm 190 mm 2 mm 17,1
DN 315 1002621 4006030015669 315 mm 500 mm 317 mm 207 mm 2 mm 22,3
DN 355 1002622 4006030015670 355 mm 500 mm 337 mm 227 mm 2 mm 23,7
DN 400 1002623 4006030015671 401 mm 500 mm 360 mm 250 mm 2 mm 25,2
DN 450 1002624 4006030015672 451 mm 500 mm 385 mm 275 mm 2 mm 26,8
DN 500 1002625 4006030015673 501 mm 500 mm 410 mm 300 mm 2 mm 31,0
DN 560 1002626 4006030015674 561 mm 500 mm 440 mm 330 mm 2 mm 38,0
DN 630 1002627 4006030015675 631 mm 500 mm 475 mm 365 mm 2 mm 42,0
DN 710 1002628 4006030015676 711 mm 500 mm 515 mm 405 mm 2 mm 48,0
DN 800 1002629 4006030015677 801 mm 500 mm 560 mm 450 mm 2 mm 54,0
DN 900 1002630 4006030015678 901 mm 500 mm 610 mm 500 mm 2 mm 65,0
DN 1000 1002631 4006030015679 1002 mm 500 mm 661 mm 551 mm 2 mm 85,0

You can find instruction manuals under the following link: Instruction manuals
