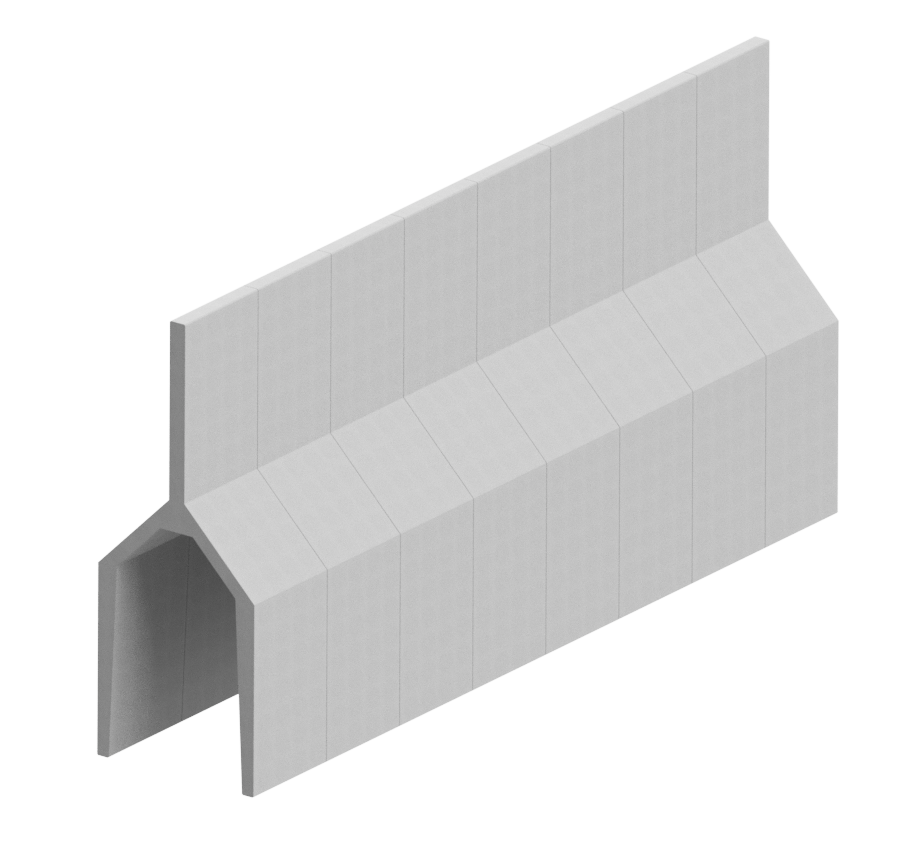

Main air duct made from concrete

Price on request or after logging in

plus shipping charges; plus VAT

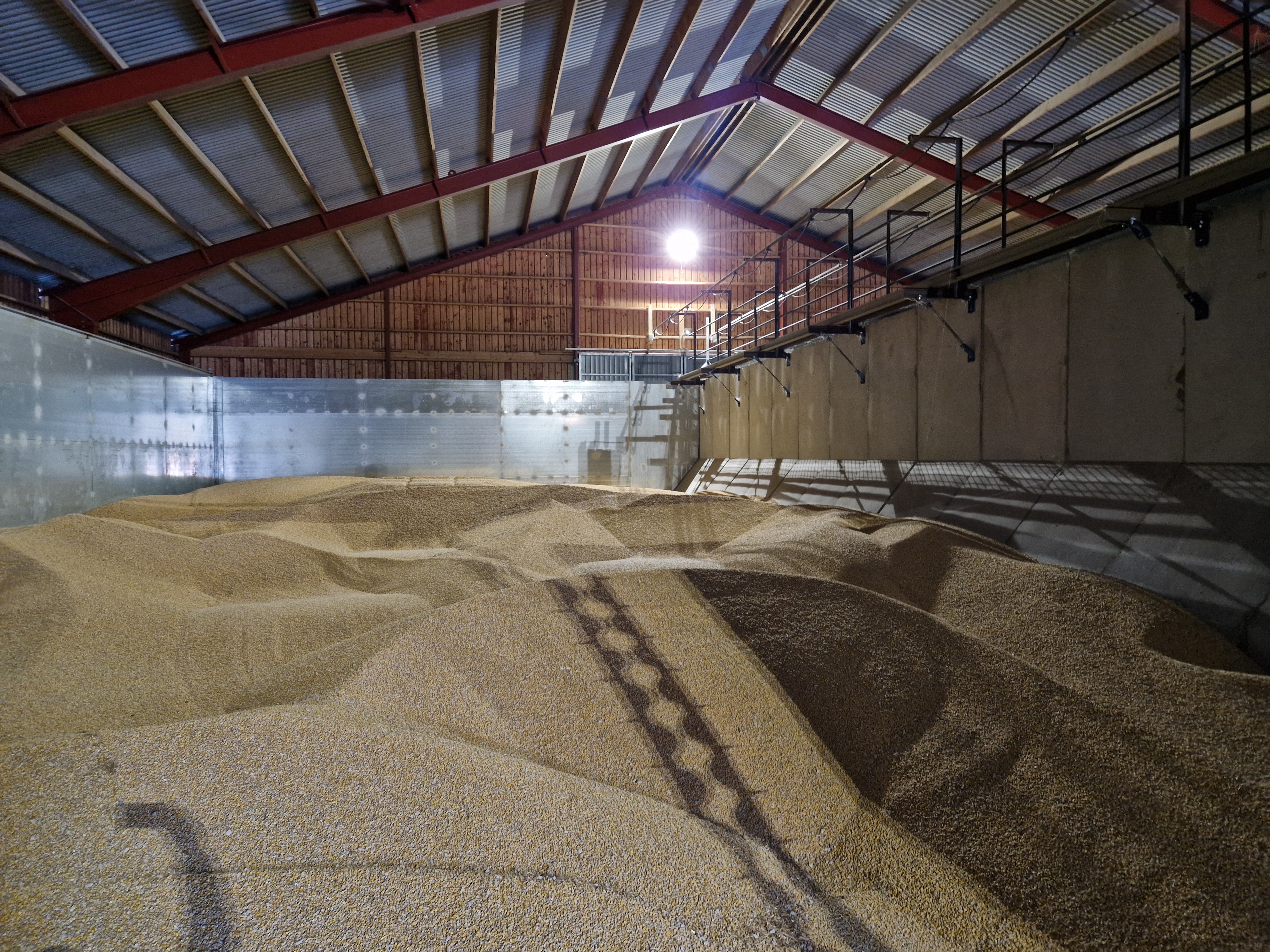

  • Used as the main air duct for central installation
  • More than 100,000 m³/h total air volume
  • Available in different heights
  • Ventilation of the flat store possible with internal flaps
  • Subsequently installed on the finished floor

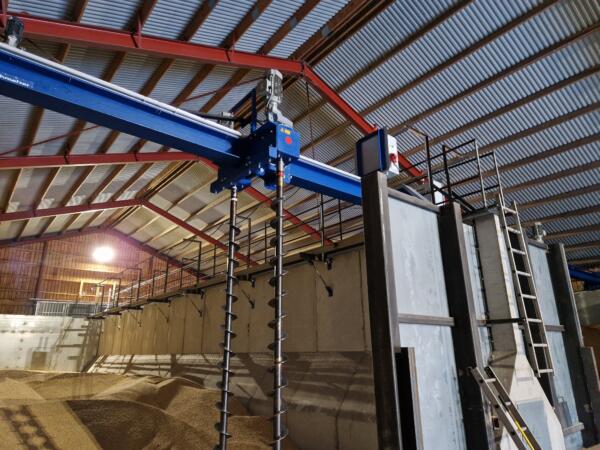

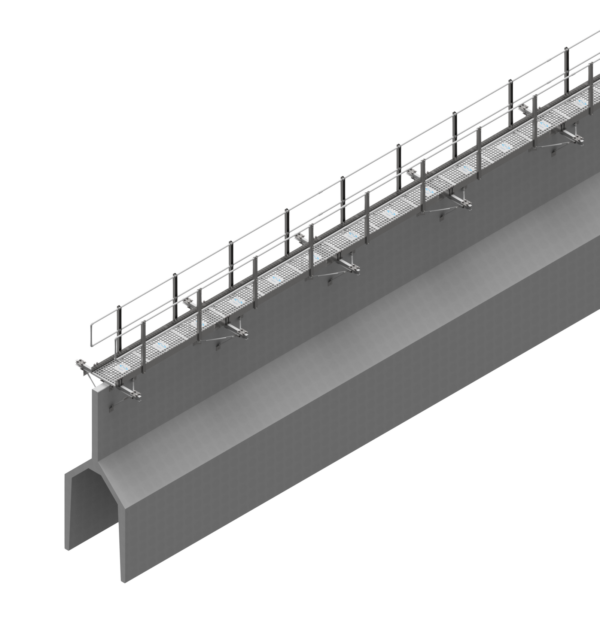

  • Can be supplemented with a screw conveyor and / or additional walkway
SKU: N/A Category:

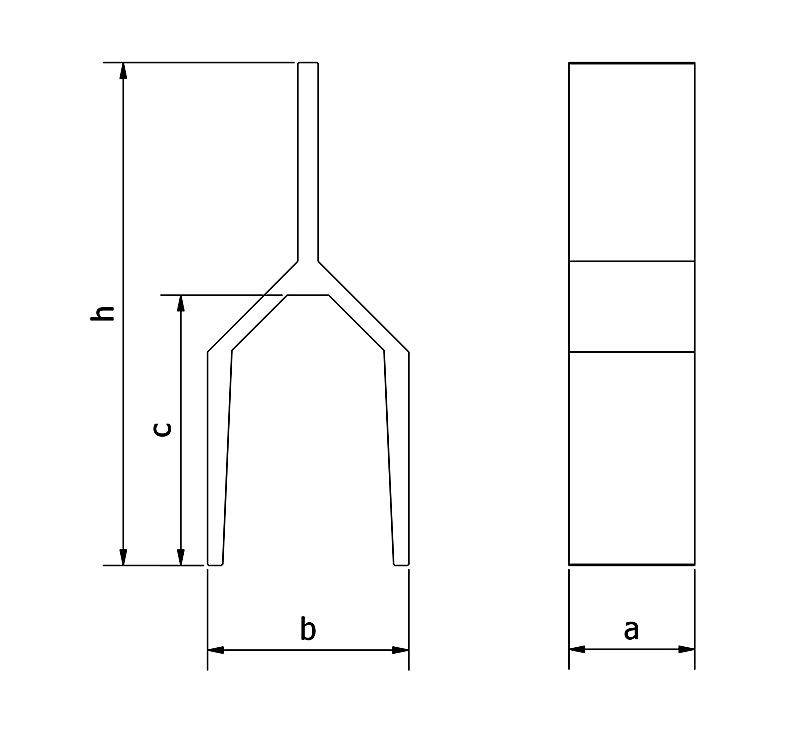

Typeabchkg
BK 3 1000 mm 1600 mm 2100 mm 3000 mm ca. 2300
BK 4 1000 mm 1600 mm 2100 mm 4000 mm ca. 2700

You can find instruction manuals under the following link: Instruction manuals
