UNDERFLOOR VENTILATION

Underfloor ventilation systems are the most effective available ventilation systems on the market.

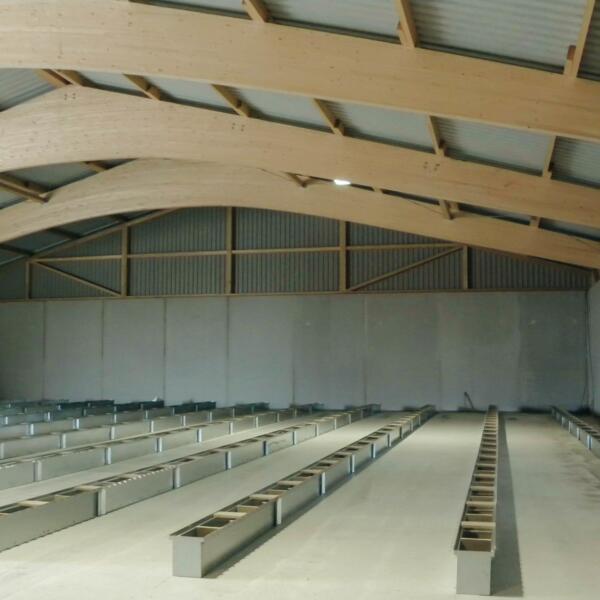

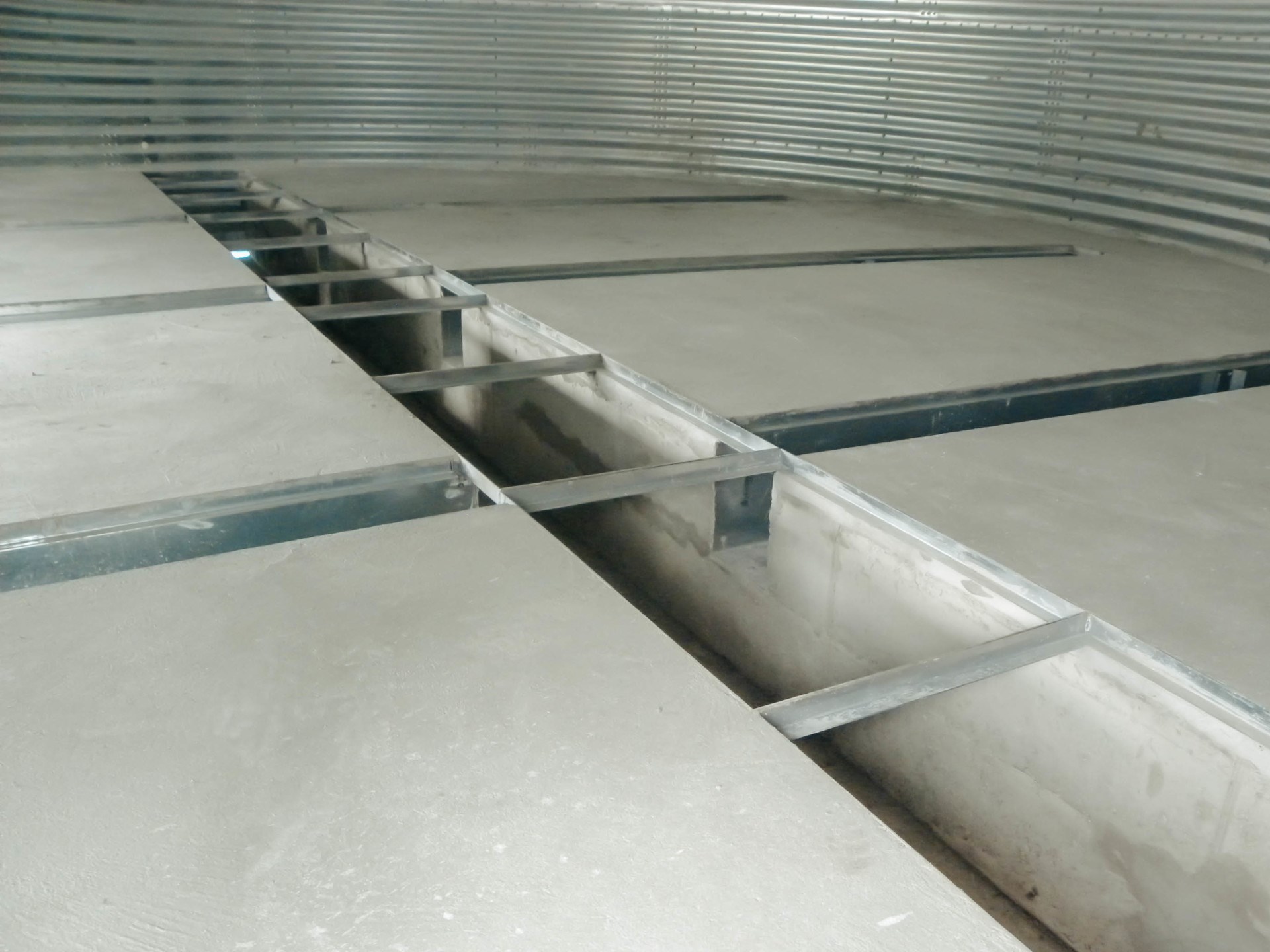

They are characterized by a very individual system which can be tailored to specific customer needs. Underfloor systems always consist of a semi-circular duct and an underfloor cover. It has to be noticed that the concrete ground should in general be higher than the grate so that the loader shovel can be safely slide on the ground.

The underfloor covers are available in a large number of variants.

Advantages:

  • different covers available, e.g. for rape or navigable
  • easy cleaning due to a flat surface
  • wide air outlet area
  • high air volumes possible thanks to a duct height of 500 mm
  • blower and pipe connections available
ventilation technology

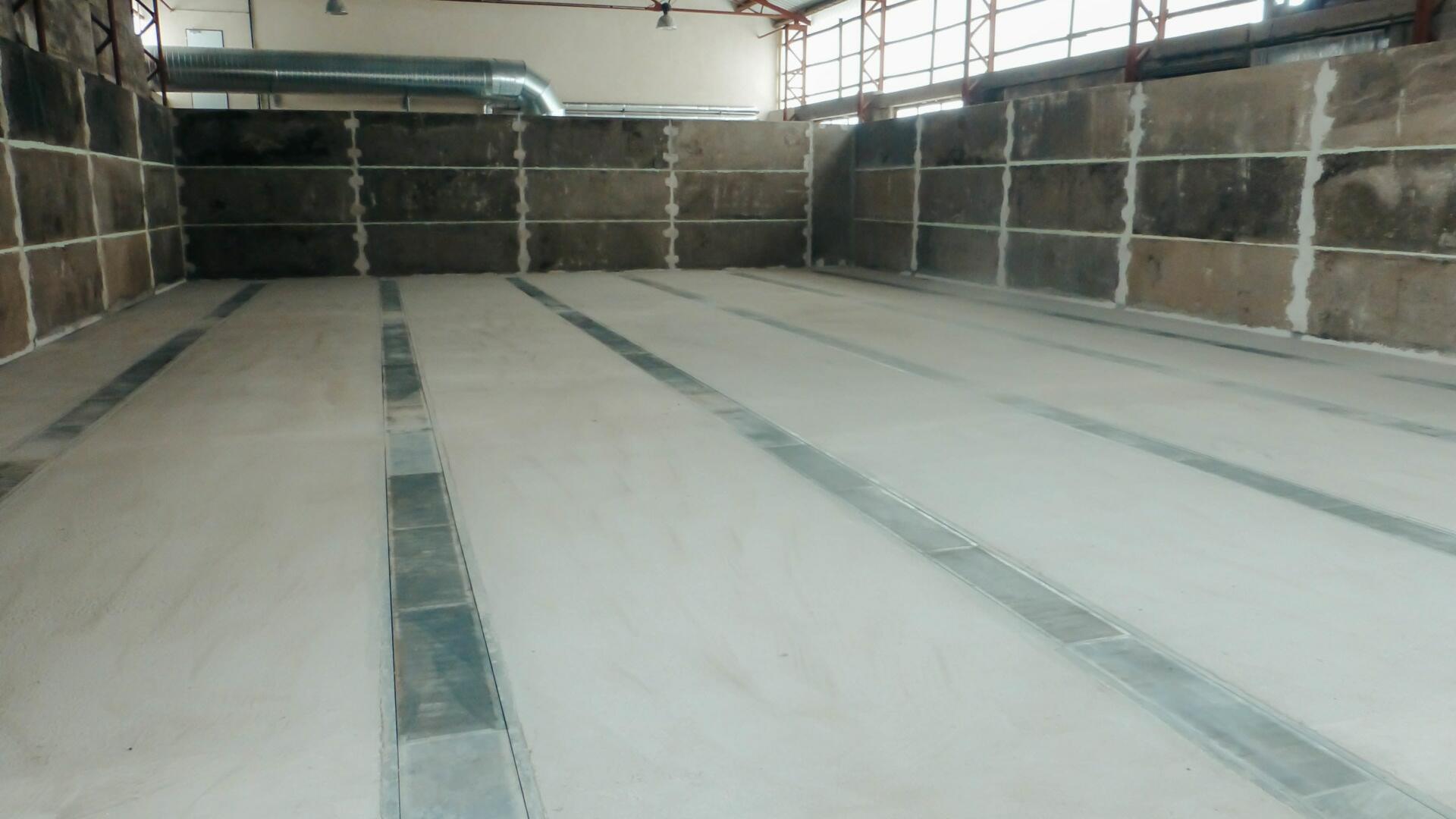

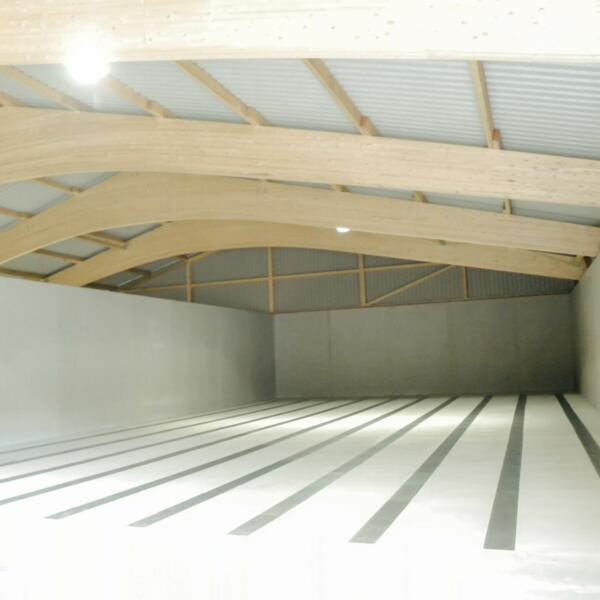

Underfloor ventilation

Loads on the covers with low contact area

underfloor ventilation

fitting products

Permanent formwork, one-piece 300

Price on request or after logging in

plus shipping charges

Permanent formwork, split design with slots 250

Price on request or after logging in

plus shipping charges

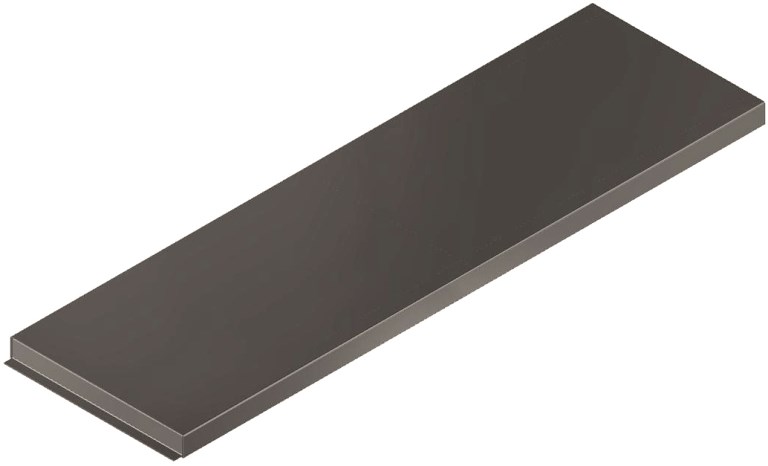

Blind cover 300

Price on request or after logging in

plus shipping charges

Perforated metal cover 300

Price on request or after logging in

plus shipping charges
