Perforated metal cover 300
Perforated metal cover 300 - Image 2

Perforated metal cover 300

Price on request or after logging in

plus shipping charges; plus VAT

  • navigable grille cover
  • air outlet area approx. 22%
  • no edges in the upper area
  • suitable for rapeseed
  • Different wheel loads:
    • wheel load 2,0t (load class CAR: 200 x 200mm)
    • wheel load 4,0t (load class 30: 200 x 400mm)
    • wheel load 7,0t (load class 60: 200 x 600mm)

SKU: N/A Category:

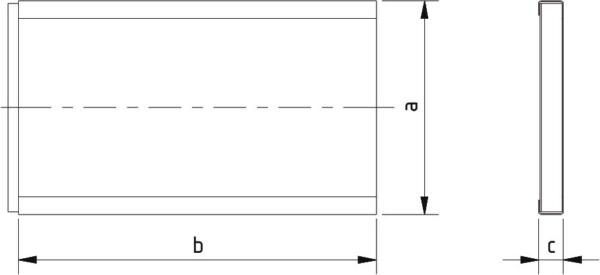

TypeArticlenumberOld Articlenumberabckg
0,5 / 1,25 1002512 4009003015830 299 mm 500 mm 35 mm 6,2
1 / 1,00 1004032 299 mm 1000 mm 35 mm 12,4
1 / 1,25 1002511 4009003015829 299 mm 1000 mm 35 mm 12,4

You can find instruction manuals under the following link: Instruction manuals

File
4009003015829-Lochblechabdeckung 1m (241.18 KB)
4009003015830-Lochblechabdeckung 0,5m (236.38 KB)
