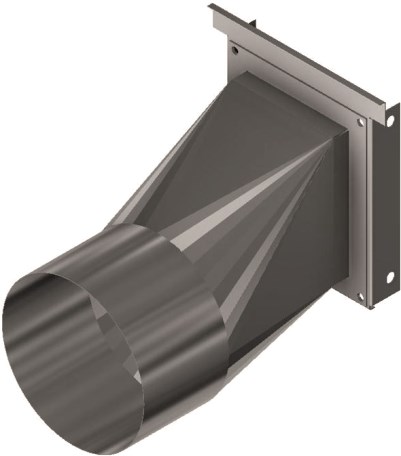

Air connector for KG-pipe
Price on request or after logging in
plus shipping charges
- end cover with air connection
- sendzimir galvanized
- thickness 1mm
- including screw material

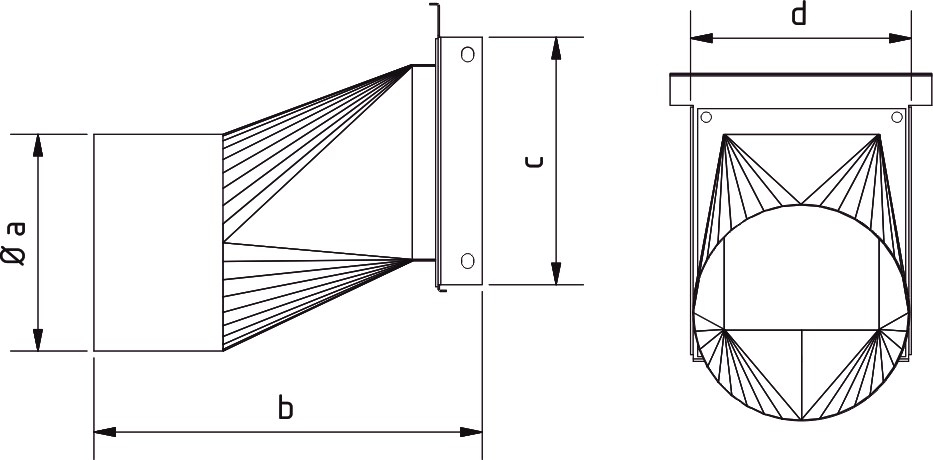

| Type | Articlenumber | Old Articlenumber | a | b | c | d | kg |
|---|---|---|---|---|---|---|---|
| 250 | 1002284 | 4009003016836 | 252 mm | 451 mm | 250 mm | 250 mm | 1,5 |
| 250.1 | 1002285 | 4009003016837 | 319 mm | 451 mm | 250 mm | 250 mm | 1,5 |
| 300 | 1002439 | 4009003016551 | 252 mm | 451 mm | 300 mm | 300 mm | 1,5 |
| 300.1 | 1002440 | 4009003016552 | 319 mm | 451 mm | 300 mm | 300 mm | 1,5 |
| 500 | 1002225 | 4009003016711 | 405 mm | 451 mm | 487 mm | 250 mm |
You can find instruction manuals under the following link: Instruction manuals
