AIR-PILLAR
- suckingly usable
- suitable for minimal ventilation
- no condensation due to suction mode
- storage height up to 5 m
- convertible fan

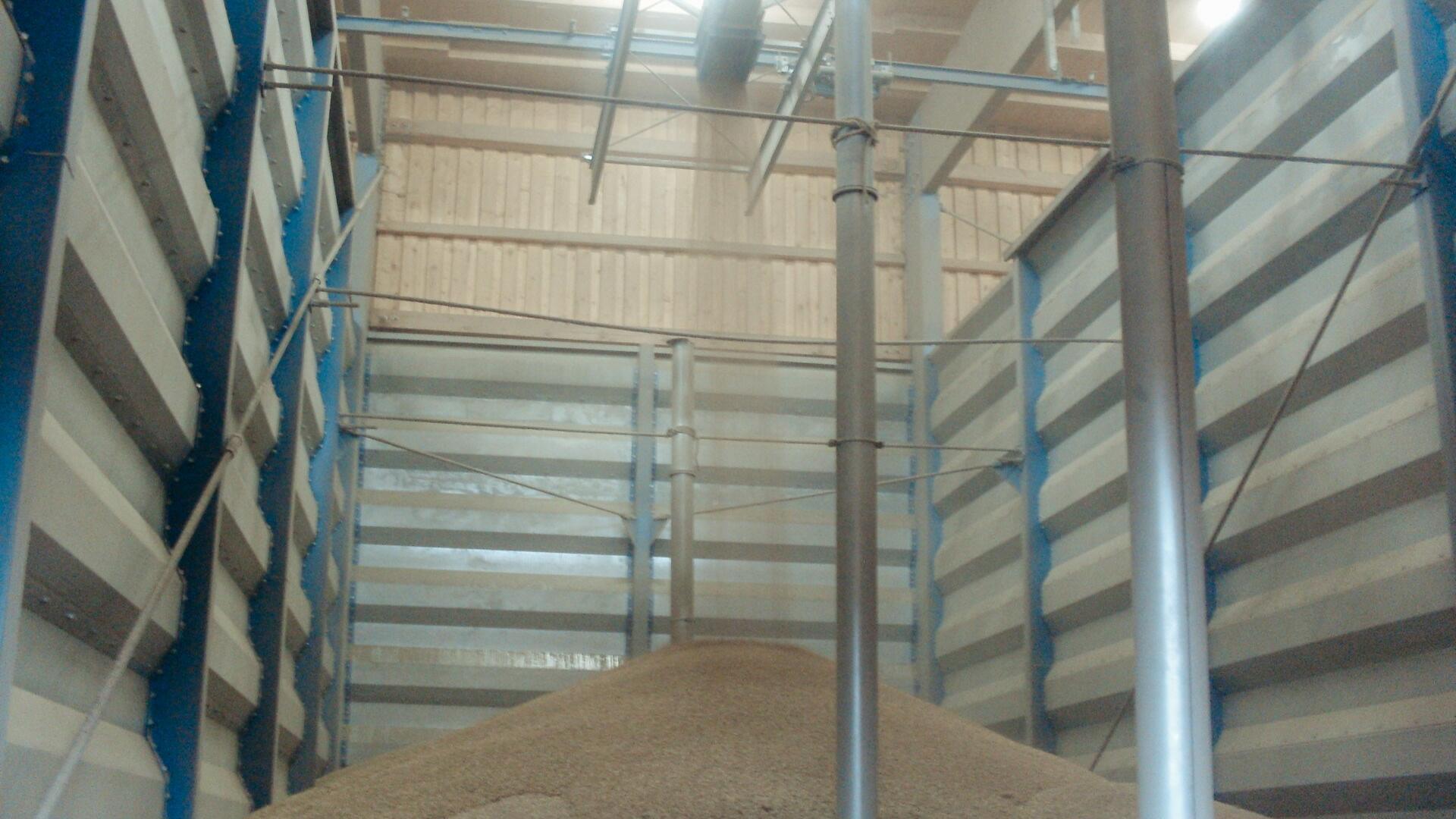

The Air-Pillar 150 and 200 ventilation lances combined with the LC 1.5 T or LC 2.2 T fan provide a quick and even ventilation of all types of grain.
Advantages:
The functionality is very simple: The air is sucked from the bottom to the top. The air volume flows through the grain on the outside of the perforated pipe located at the lower end of the ventilation lances. The suction side sucks the hot air out of the storage and the fan blows it out into the open air.
The ventilation lances are easy to position thanks to their broad base. Their height can be adjusted by means of a telescopic pipe and the available extension. A single fan can be used for several ventilation lances.
suckingly usable
connection diameter: 400 mm
max. air flow: 7.500 m³/h
dumping height: up to 4 m
convertible fan
Axialfan with 1,1 kW power, relocatable fan
