SUPERIOR ROUNDNESS

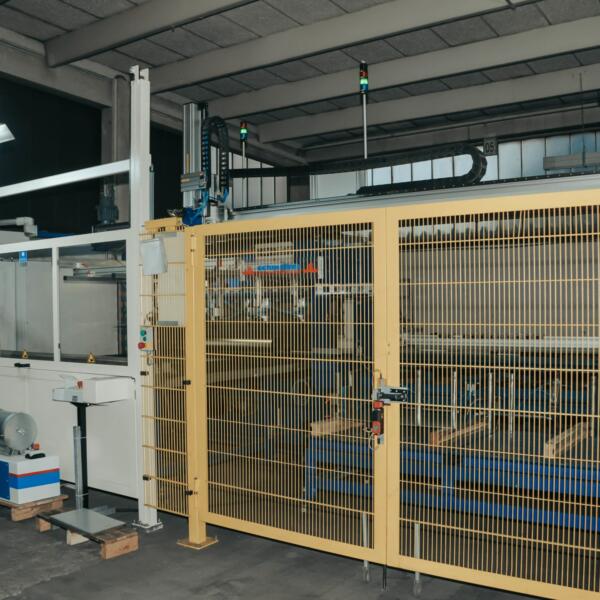

We ensure a superior roundness thanks to our equipment with modern machinery in combination with the calibration after welding.

SCHMELZER FLANGED EDGE

After the pipe connection, turbulences often cause problems in the pipeline. We avoid this by using sharp and rectangular flanged edges.

CALIBRATED INSIDE

We avoid unnecessary complications and provide all pipes and fittings with the same inside diameter, independent of the material thickness .
MODULAR PIPEWORK SYSTEMS

YOUR ADVANTAGE WITH OUR PIPEWORK SYSTEM

Sophisticated products which have proven their worth in different plants over the last years – that is what the name Schmelzer stands for.

Our modular pipework systems with precise flanged edges are especially used for the transportation of grain and multiple bulk goods. Longitudinal welded pipes with foil weld offer you high dimensional accuracy and corrosion protection. The modular system makes it possible that pipe parts can be exchanged as well as that an already existing pipe system can be extended as needed. Pipe parts with diameters ranging from 100-400mm are available fast from stock. Thanks to high-tech machinery an additional delivery can be realized promptly. Our pipe range is also available with abrasion protection in tougher cases.

These pipes are equipped with an abrasion-resistant plastic lining. As a result, service life can be increased by 10 times. Also the lining can be exchanged in a few easy steps. We can also provide Helix-pipes for your pipeline. With this spirally welded pipe system we are able to realise lengths up to 12m.

MATERIALS OF OUR PIPES

We produce with the materials DX51 moulded parts metal sheet DC01 or DD11. Other materials are available on request.

DIMENSIONS/NOMINAL DIMENSIONS

The diameters and pipe lengths in the article description are nominal lengths. The usable length or the diameter are indicated in the dimensional drawings.

TOLERANCES

Diameter and roundness of the pipes according to DIN EN 10296-1. Length tolerance of pipes according to DIN ISO 2768-1. Angular tolerance of segments +/-2°.

SURFACES

We use hot-dip galvanized pipes with a layer of 150g/m². The exact layer thicknesses are dependent on the material thickness and material structure.

All moulded parts such as segments, fork pieces, outlets, sliders, T-pieces, rotary distributors, transitions, two way valves, swivel heads and grain breaks are galvanized with a layer of 150g/m². Other surface coatings are available on request.

SPECIAL COMPONENTS

The production of pipe parts and accessories in special design is of course possible. The price is on request.

CONNECTING ELEMENTS

The connection of the clamping rings is designed for conveying pipelines with a material thickness of 1-3 mm and in the diameters of 100-400mm. Alternative connection elements are available on request.
