60° degree asymmetrical two way valve

General:

• Application: For free-flowing bulk materials for two-way distribution in free-fall pipelines
• Galvanized design
• Base body and transitions in hot-dip galvanized design
• Increased tightness thanks to flap seal made of food-safe silicone
• Shaft bearing with ball bearing
• Stop strips made of food-safe plastic
• Two inspection openings
• Stainless steel flap and shaft, can be replaced later
• Add-on kits can be retrofitted, exchanged, and adjusted
• Upper transition can be exchanged or replaced with a symmetrical transition
• Transition can be rotated in the other direction

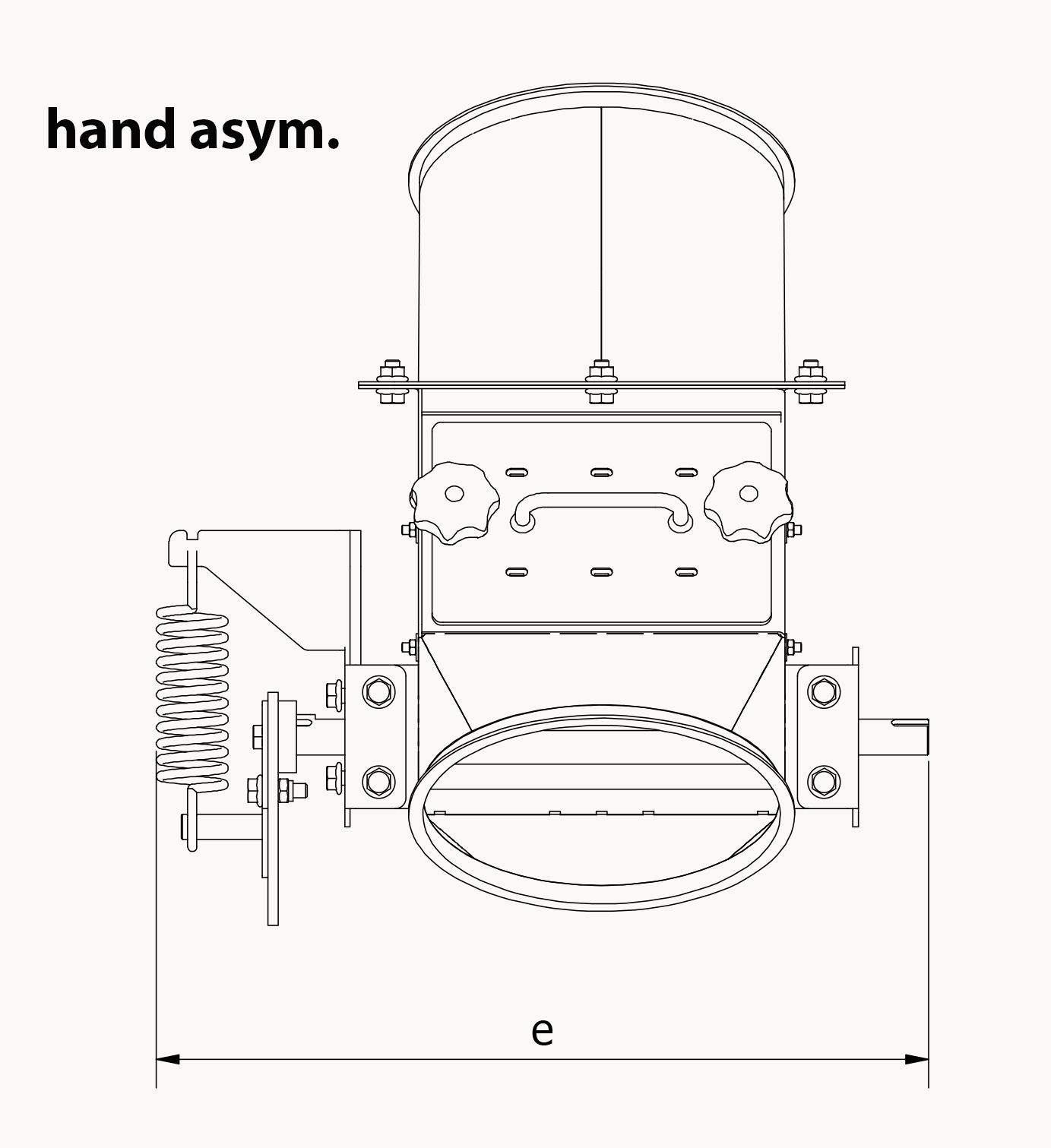

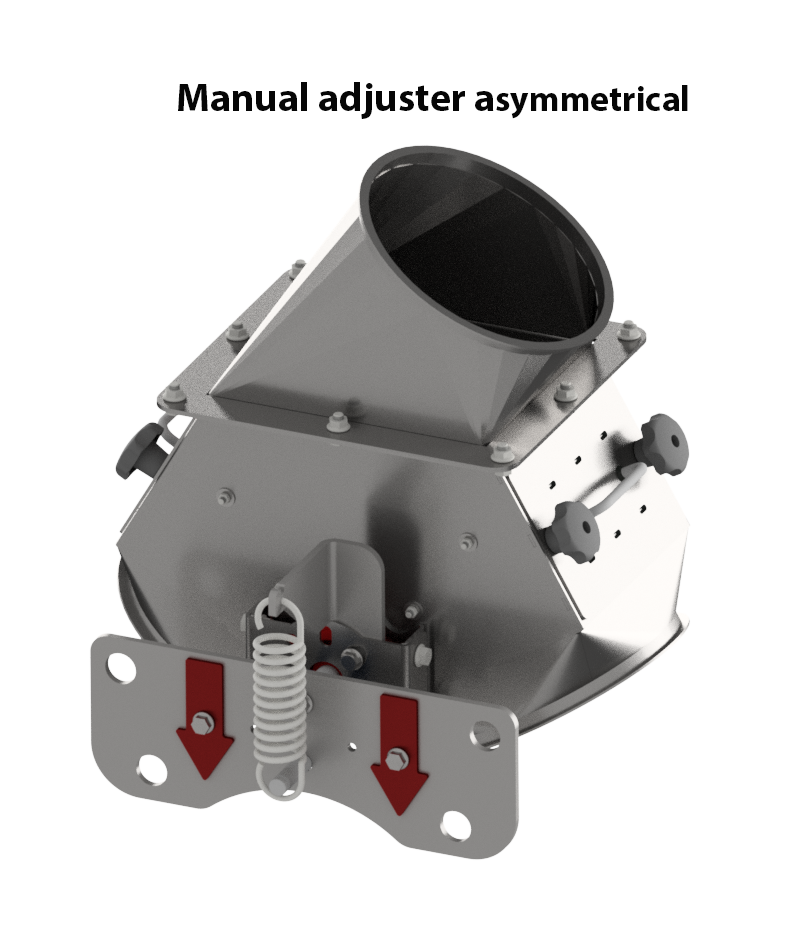

Manually operated H

• Pre-assembled
• Manually adjustable, also using a rope
• End position lock with tension spring

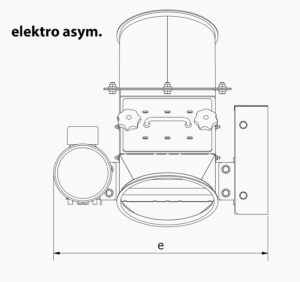

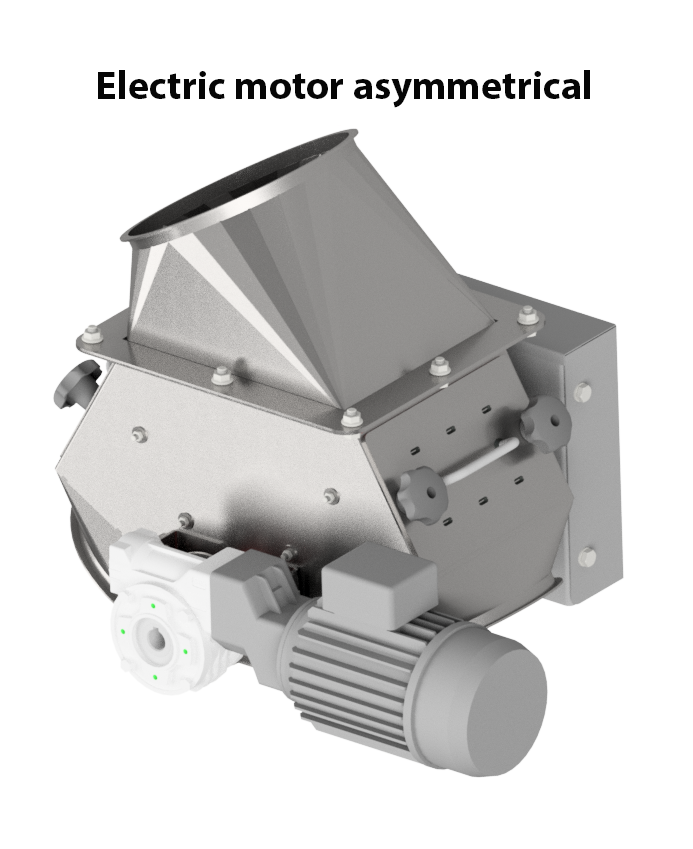

Electric motor E

• Pre-assembled with electric motor, limit switch bracket, limit switch cover
• Motor can be rotated at a 45° angle
• Adjustment with 230/400V electric motor IP55
• Please order 2 limit switches separately for each folding box:
• Mechanical limit switches 1000801
• Inductive limit switches 1000800
• Cabling and integration into a higher-level control system not included

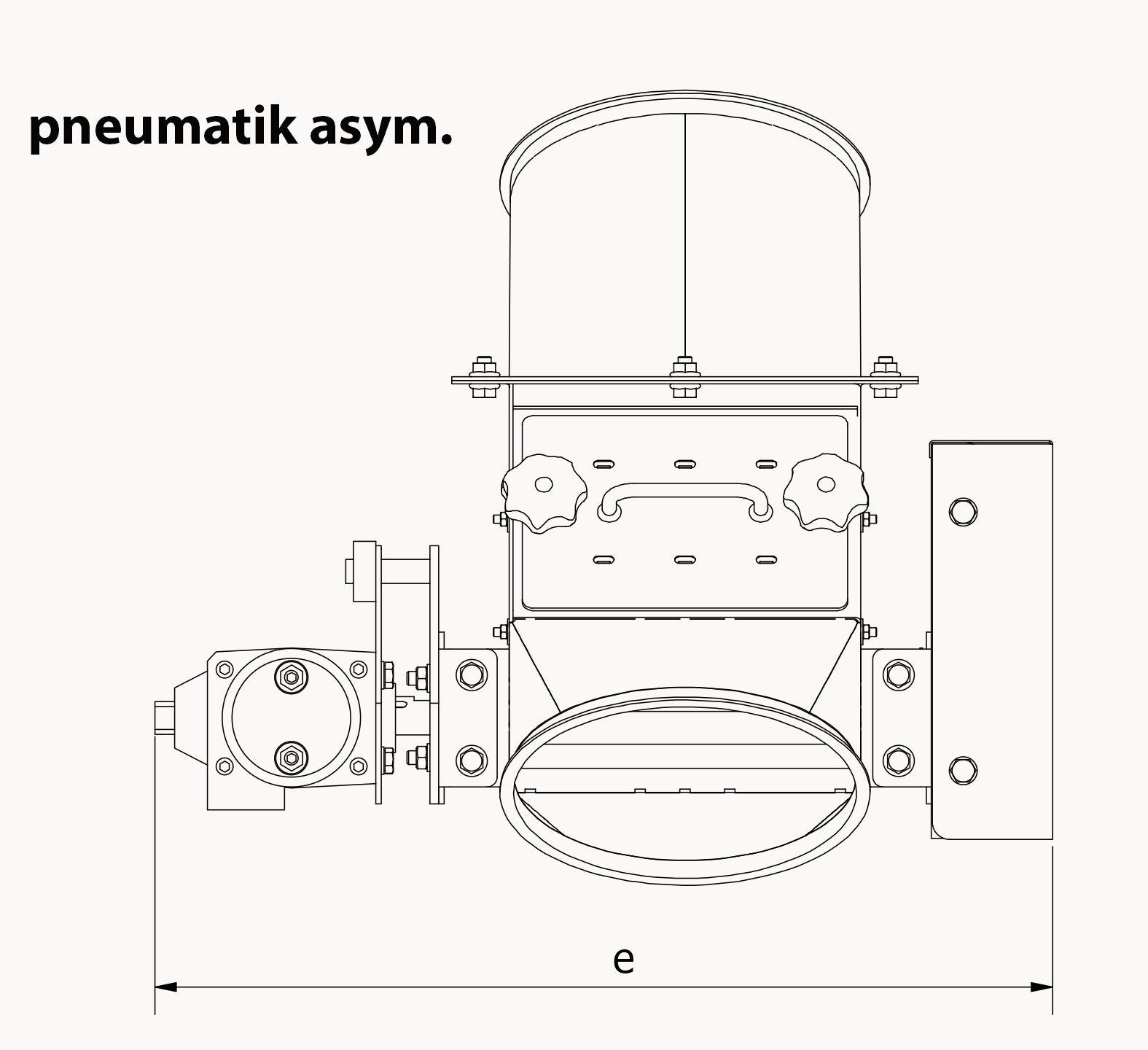

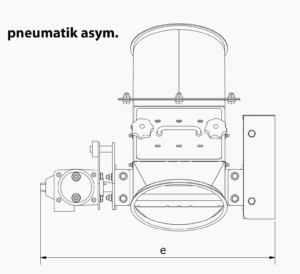

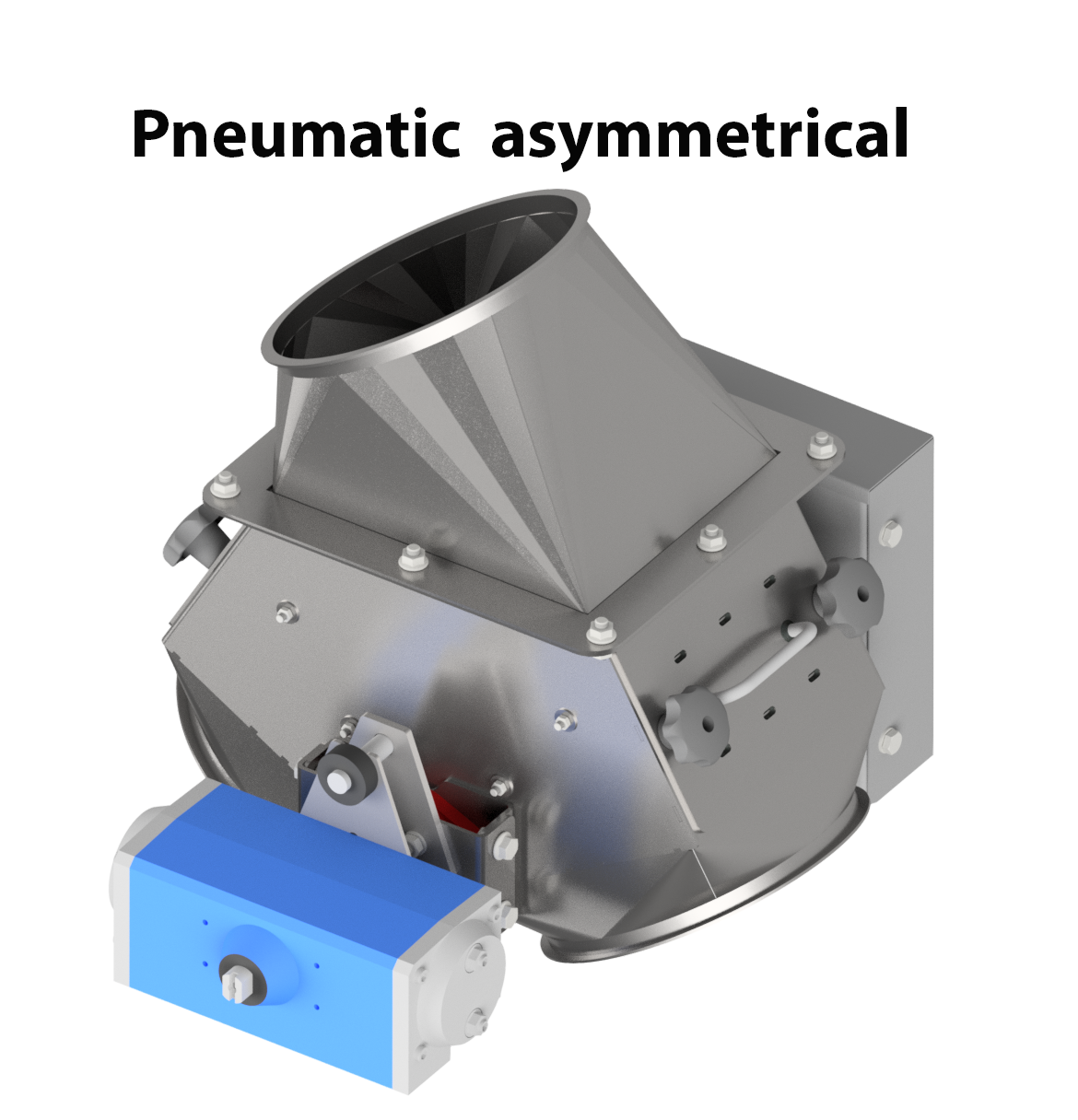

Pneumatic drive P

• Pre-assembled with pneumatic drive, limit switch bracket, limit switch cover
• Adjustment by means of double-acting pneumatic drive 6 bar
• Please order 2 limit switches separately for each folding box:
• Mechanical limit switches 1000801
• Inductive limit switches 1000800

Without magnetic valve, exhaust air throttle, etc.
