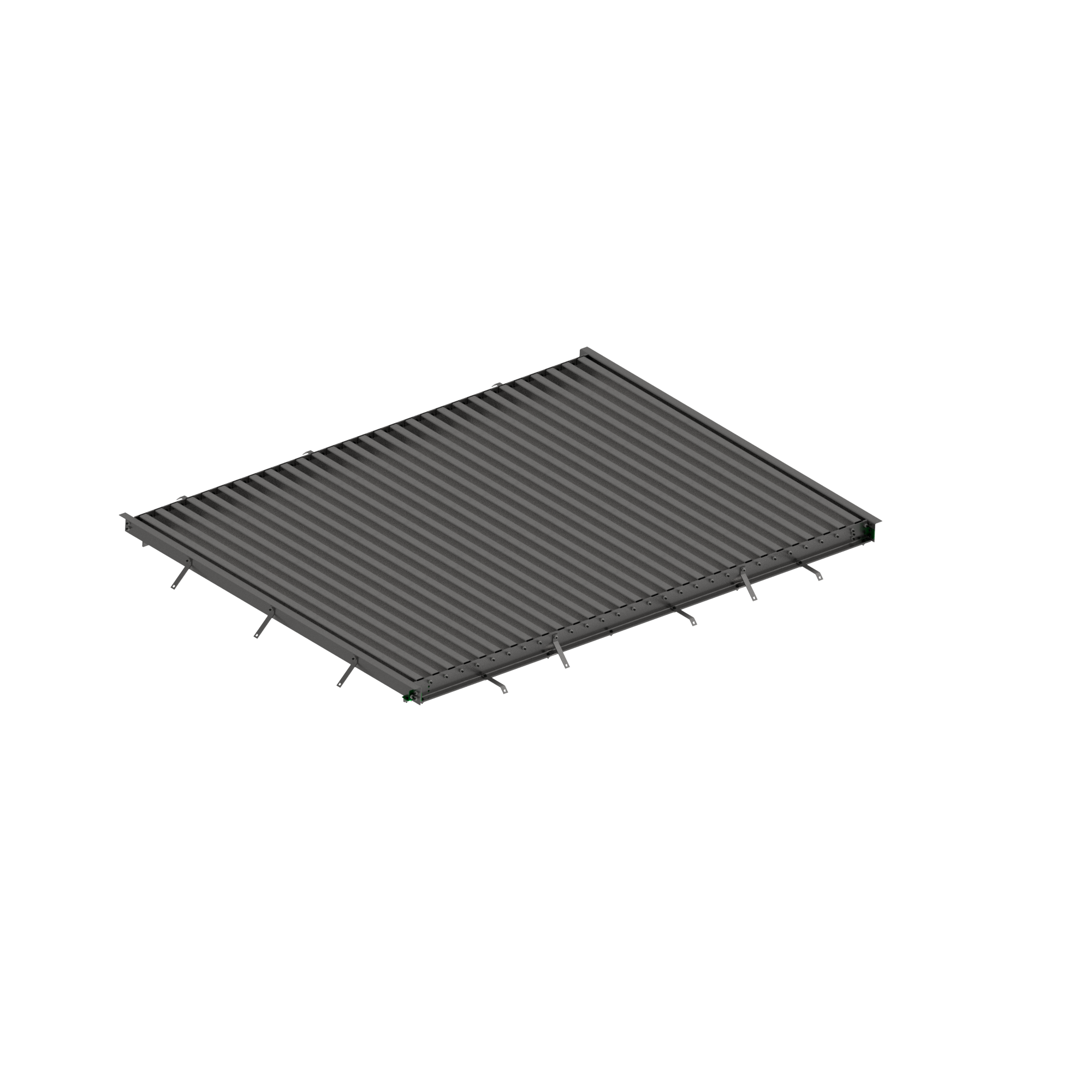

Gutter Cover

Price on request or after logging in

  • Hot-dip galvanised version
  • Can be extended by the length L in each case
  • Clearance between the gutter covers 50mm
  • Can be installed in the formwork on site
  • Incl. concrete anchor
  • Clear width of the gutter in the standard version approx. 2m
  • Kit for easy assembly on site
  • Incl. screw material and mounting bracket
  • Gutter covers incl. Plastic end caps
  • In the standard width (2150mm), can be driven on up to 5 tonnes (40x40cm)

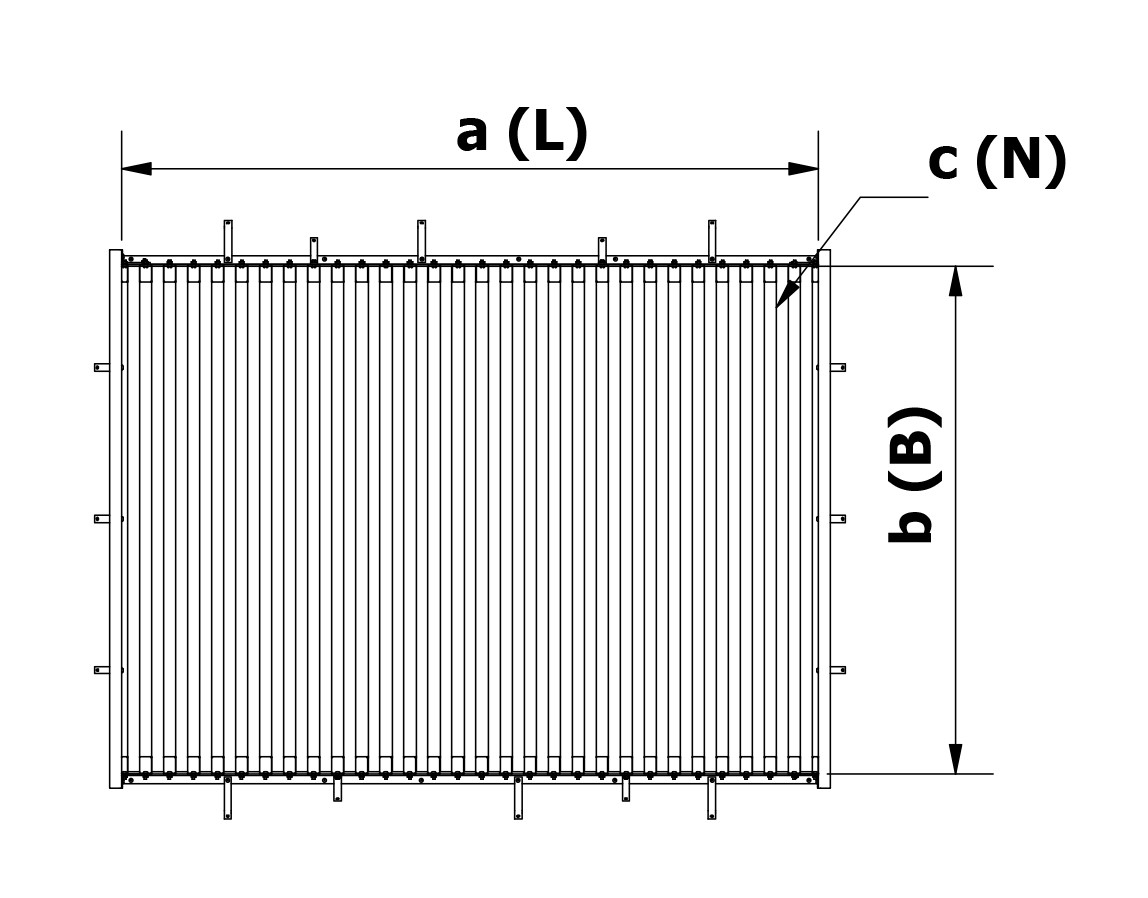

L = side member
B= Cross beam
N = Gutter cover ReRo (29 pcs. / side member)

SKU: N/A Category:
TypeArticlenumberabc
side member L 1003931 2950 mm
Cross beam B 1003932 2150 mm
Gutter cover N 1003933 29 Stk. / L mm

You can find instruction manuals under the following link: Instruction manuals
