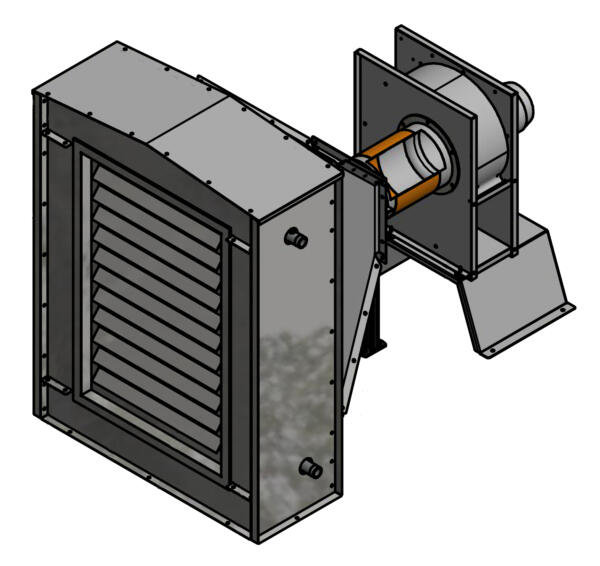

Heat exchanger

Price on request or after logging in

plus shipping charges; plus VAT

  • Copper-aluminum version
  • Flow temperature: 80° C
  • Return temperature: 60° C

Price and dimensions on request

SKU: N/A Category:

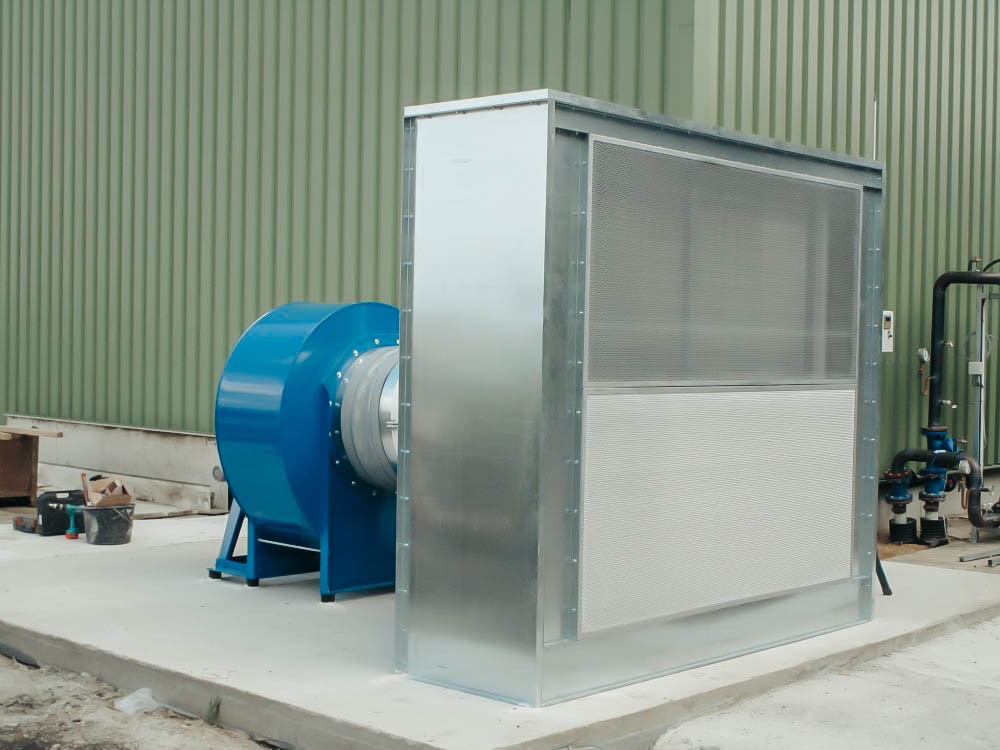

Compact unit for waste heat utilisation

The Heat exchanger is perfectly tailored to the utilisation of waste heat attained from biogas and combined heat power plants.

The completely individual combination of fan and heating coil enables us to meet all the demands of our customers. This has been especially compiled to allow a quick and easy air-heating for container-drying and storage ventilation drying. At a flow temperature of 80° C and a return flow temperature of 65°C, the air temperatures shown in the table in °C obtain at an ambient temperature of 20°C at the output side of the Heat exchanger.

The control system is adjusted and fitted according to your plant.

TypeArticlenumberOld ArticlenumberkwV m³/hAir (1000 Pa)
100 / 150kW 4000376 4015005015689 100 / 150 8000 / 12000 59 / 117
200 / 300kW 4000375 4015005015688 200 / 300 12000 / 22000 61 / 89
400 / 500 / 650kW 4000372 4015004015672 400 / 500 / 650 32000 / 40000 61 / 89

You can find instruction manuals under the following link: Instruction manuals
