Pipe system Helix-air with flange nominal length 500
Price on request or after logging in
plus shipping charges
- superior roundness
- priming coated
- available from NW 500 – 3mm wall thickness
- lower quantities are longitudinal welded
- flanges RII DIN 24154
- with loose flange connection

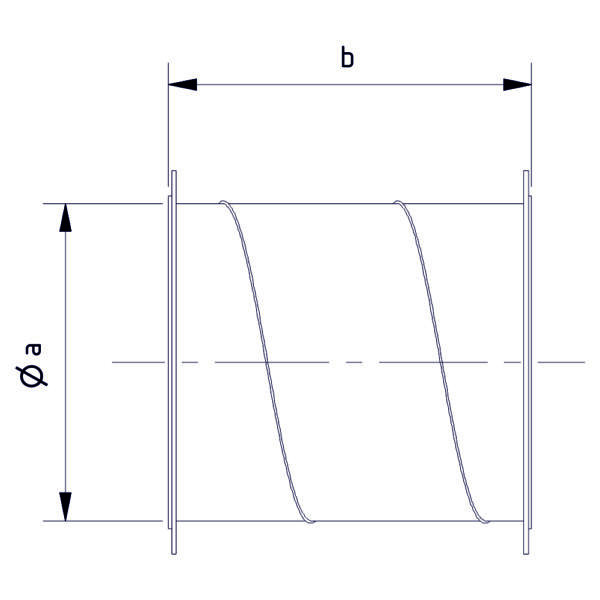

Type | Articlenumber | Old Articlenumber | a | b | t | kg |
---|---|---|---|---|---|---|
DN 160 | 1003012 | 4006014016038 | 246 mm | 500 mm | 2 mm | 6,1 |
DN 180 | 1003013 | 4006014016039 | 176 mm | 500 mm | 2 mm | 6,8 |
DN 200 | 1003014 | 4006014016040 | 196 mm | 500 mm | 2 mm | 7,5 |
DN 250 | 1003015 | 4006014016041 | 246 mm | 500 mm | 2 mm | 9,3 |
DN 280 | 1003016 | 4006014016042 | 276 mm | 500 mm | 2 mm | 12,1 |
DN 315 | 1003017 | 4006014016043 | 311 mm | 500 mm | 2 mm | 13,6 |
DN 355 | 1003018 | 4006014016044 | 351 mm | 500 mm | 2 mm | 15,2 |
DN 400 | 1003019 | 4006014016045 | 396 mm | 500 mm | 2 mm | 17,1 |
DN 450 | 1003020 | 4006014016046 | 446 mm | 500 mm | 2 mm | 19,1 |
DN 500 | 1003021 | 4006014016047 | 496 mm | 500 mm | 2 mm | 21,1 |
DN 560 | 1003022 | 4006014016048 | 556 mm | 500 mm | 2 mm | 26,1 |
DN 630 | 1003023 | 4006014016049 | 626 mm | 500 mm | 2 mm | 29,3 |
DN 710 | 1003024 | 4006014016050 | 706 mm | 500 mm | 2 mm | 32,9 |
DN 800 | 1003025 | 4006014016051 | 796 mm | 500 mm | 2 mm | 36,9 |
DN 900 | 1003026 | 4006014016052 | 896 mm | 500 mm | 2 mm | 41,4 |
DN 1000 | 1003027 | 4006014016053 | 996 mm | 500 mm | 2 mm | 45,9 |
DN 1120 | 1003028 | 4006014016054 | 1114 mm | 500 mm | 3 mm | 77,3 |
DN 1250 | 1003029 | 4006014016055 | 1544 mm | 500 mm | 3 mm | 86,0 |
DN 1400 | 1003030 | 4006014016056 | 1394 mm | 500 mm | 3 mm | 96,1 |
DN 1600 | 1003031 | 4006014016057 | 1594 mm | 500 mm | 3 mm | 109,6 |
DN 1800 | 1003032 | 4006014016058 | 1794 mm | 500 mm | 3 mm | 123,1 |
DN 2000 | 1003033 | 4006014016059 | 1944 mm | 500 mm | 3 mm | 136,5 |
You can find instruction manuals under the following link: Instruction manuals
