Round smooth wall silo

Price on request or after logging in

plus shipping charges

The round geometry of the silos is optimally designed for the load of the bulk material. Therefore components on the inside of the silo are mostly not necessary. As a result a smooth flow of the bulk material is guaranteed. The modular design allows different volumes of the silos so that the existing hall can be optimally used. The available outflow funnels are equipped with standard angles between 40 and 35°. Special outflow funnel heights and angles are possible as well as special heights of the design. Passable covers with access hatches for the round silos are optionally available.

SKU: N/A Category:

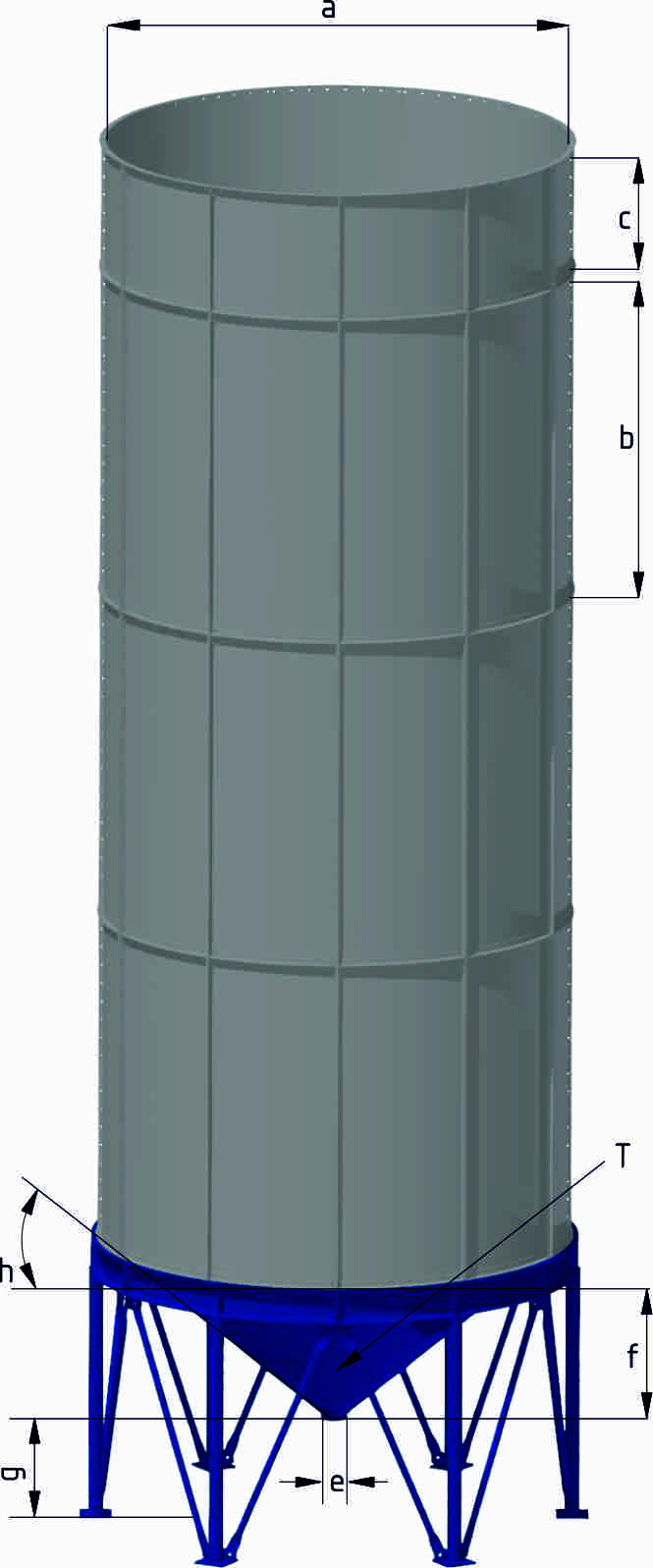

Typeabcefgh
1,9 1909 mm 2500 mm 1000 mm 250 mm 756 mm 750 mm 40°
22 2228 mm 2500 mm 1000 mm 250 mm 890 mm 750 mm 40°
2,6 2546 mm 2500 mm 1000 mm 250 mm 1023 mm 750 mm 40°
2,9 2864 mm 2500 mm 1000 mm 250 mm 1157 mm 750 mm 40°
3,2 3183 mm 2500 mm 1000 mm 250 mm 1290 mm 750 mm 40°
3,5 3501 mm 2500 mm 1000 mm 250 mm 1424 mm 750 mm 40°

You can find instruction manuals under the following link: Instruction manuals
