TAS
Price on request or after logging in
plus shipping charges
- including towing and traction cable
- subsequent retraction in bulk good is also possible
- simple and manually deposition of TAS
- easy pulling out by traction cable before discharge
- max. dumping height: 5m
- high-strength system

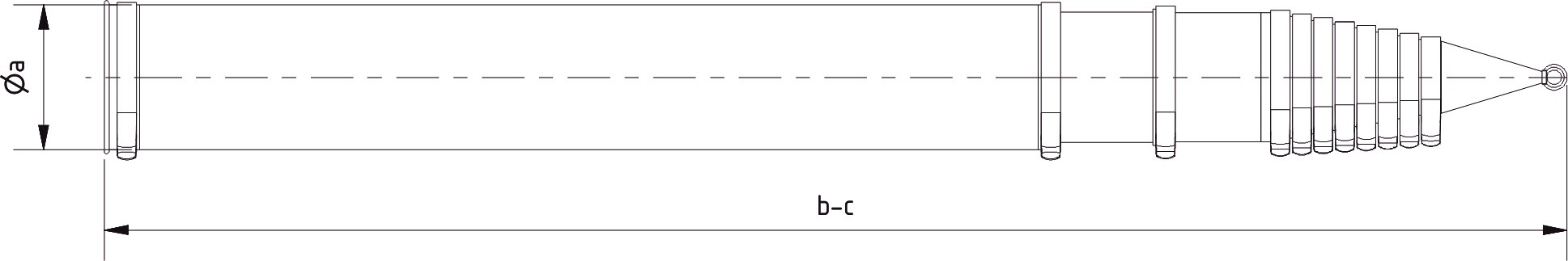

Type | Articlenumber | Old Articlenumber | Parts | a | b | c | kg |
---|---|---|---|---|---|---|---|
4 | 1002247 | 4009003016772 | 2 | 300 mm | 2000 mm | 3900 mm | 47 |
6 | 1002248 | 4009003016773 | 3 | 300 mm | 2100 mm | 5800 mm | 67 |
8 | 1002249 | 4009003016774 | 4 | 300 mm | 2100 mm | 7800 mm | 86 |
10 | 1002241 | 4009003016746 | 5 | 300 mm | 2200 mm | 9700 mm | 103 |
12 | 1002242 | 4009003016747 | 6 | 300 mm | 2200 mm | 11600 mm | 118 |
14 | 1002243 | 4009003016748 | 7 | 300 mm | 2240 mm | 13500 mm | 134 |
16 | 1002244 | 4009003016749 | 8 | 300 mm | 2280 mm | 15400 mm | 148 |
18 | 1002245 | 4009003016750 | 9 | 300 mm | 2320 mm | 17400 mm | 161 |
20 | 1002246 | 4009003016751 | 10 | 300 mm | 2360 mm | 19300 mm | 173 |
You can find instruction manuals under the following link: Instruction manuals
