Air Box Type 2,3

Price on request or after logging in

Box for ventilation and drying of grain and seed.

Air-Box without hopper! Hopper have to be ordered separately!

Advantages:

  • ventilation and drying with low pressure loss
  • storage of grain and seed
  • content: 2,3m³
  • 2 empty boxes stackable
  • hopper available made of perforated plates (1,5mm) or unperforated
  • centrical outlet
  • without fan and transition
  • made of galvanized sheet steel
  • transportation with a forklift

TL = hopper made of perforated plates
TU = hopper unperforated

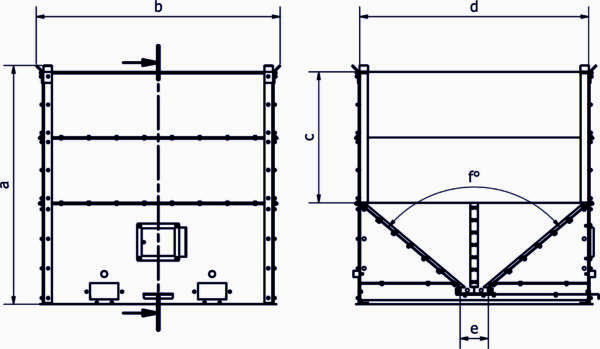

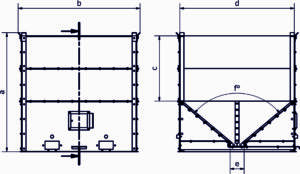

TypeArticlenumberOld Articlenumberabcdef
Air Box 2,3 1001614. 4009099016033 1550 mm 1585 mm 850 mm 1490 mm 183 mm 100°
TL 1001615. 4009099016035
TU 1001616. 4009099016036

You can find instruction manuals under the following link: Instruction manuals
