Air Box Type 3,2

Price on request or after logging in

plus shipping charges; plus VAT

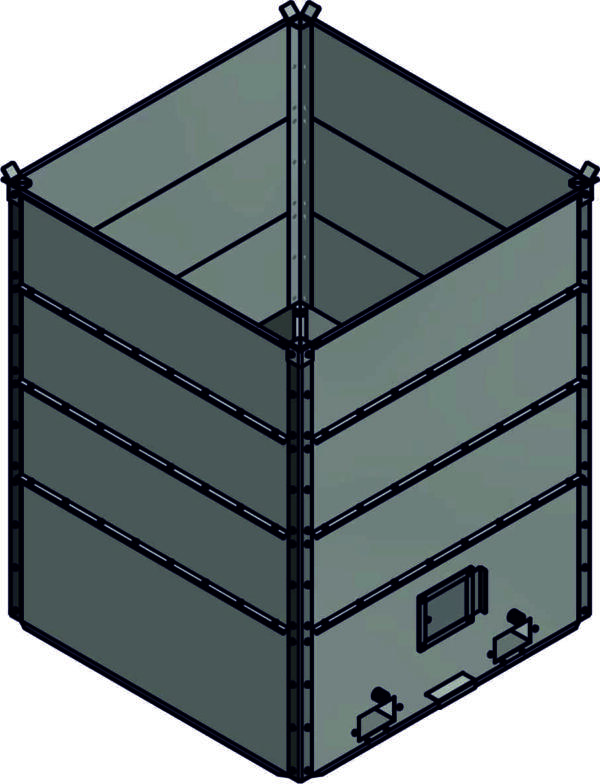

Box for ventilation and drying of grain and seed.

Air-Box without hopper! Hopper have to be ordered separately!
Air-Box is delivered in individual parts and must be assembled yourself!
Optional ventilation transition to 300mm spiral hose Item number: 4000575

Advantages:

  • ventilation and drying with low pressure loss
  • storage of grain and seed
  • content: 3,2m³
  • 2 empty boxes stackable
  • hopper available made of perforated plates (1,5mm) or unperforated
  • centrical outlet
  • without fan and transition
  • made of galvanized sheet steel
  • transportation with a forklift

TL = hopper made of perforated plates
TU = hopper unperforated

SKU: N/A Category:

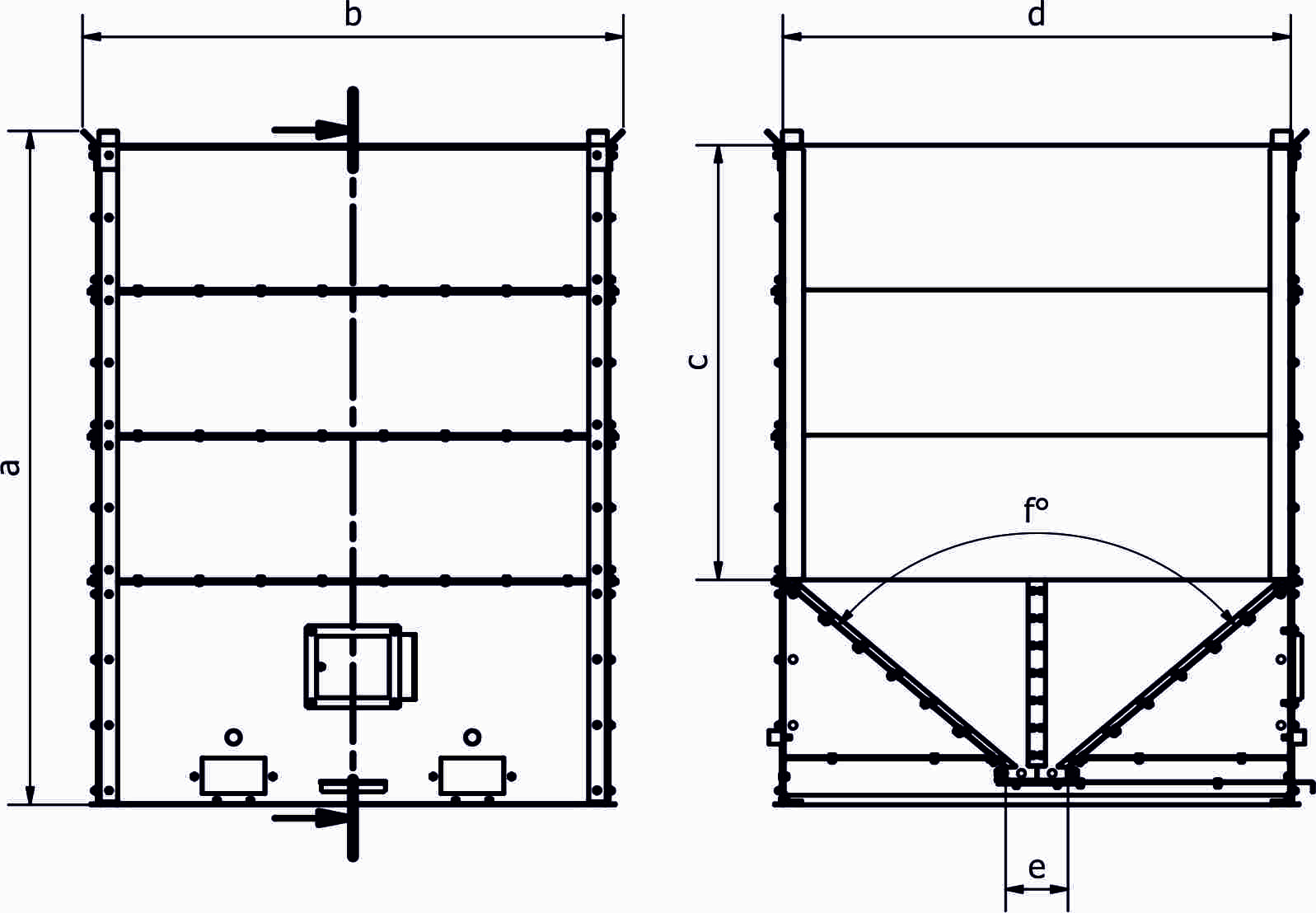

TypeArticlenumberOld Articlenumberabcdef
Air Box 3,2 1001617 4009099016037 1975 mm 1585 mm 1275 mm 1485 mm 183 mm 100°
TL 1001615 4009099016035
TU 1001616 4009099016036

You can find instruction manuals under the following link: Instruction manuals
