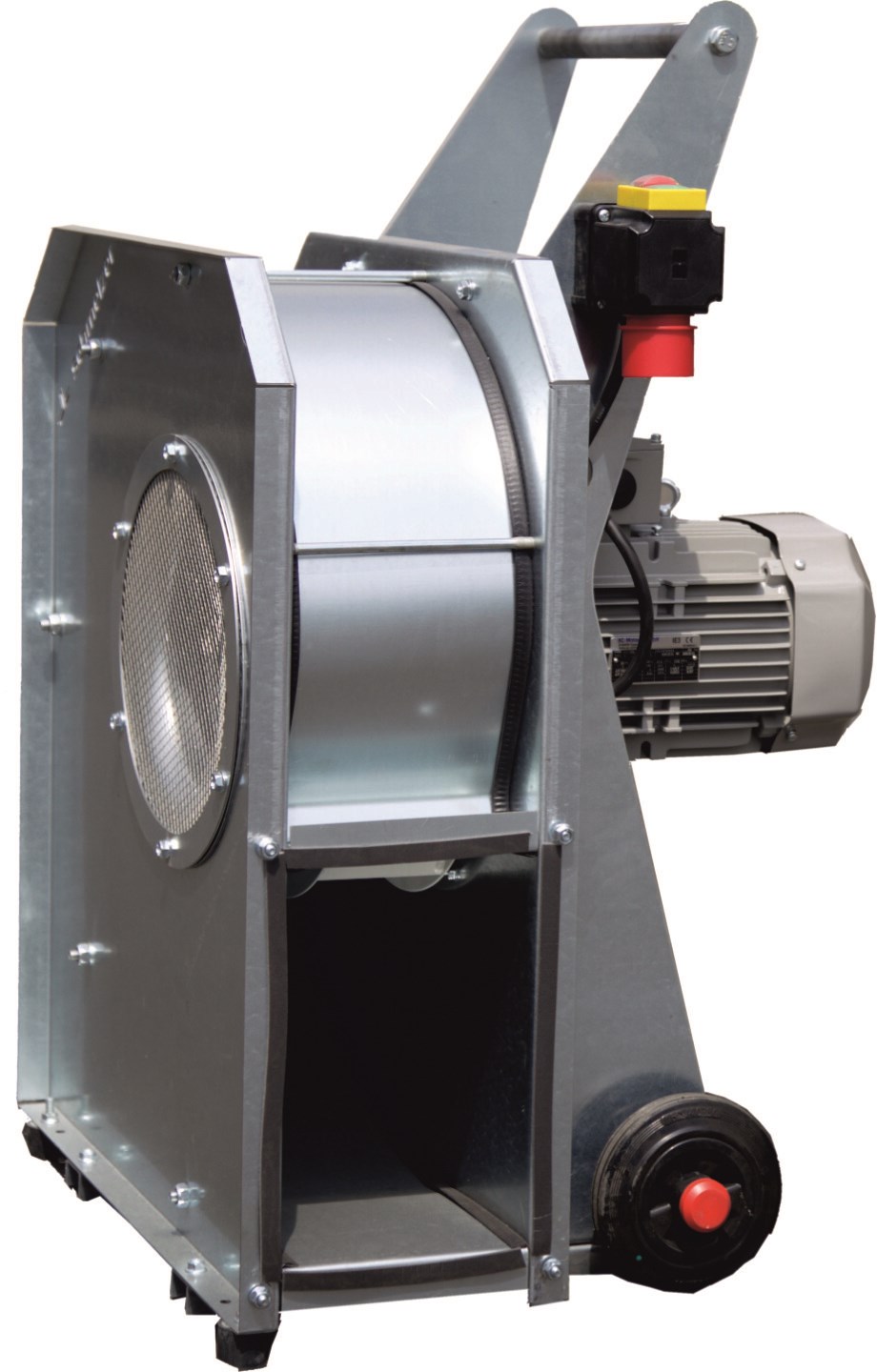

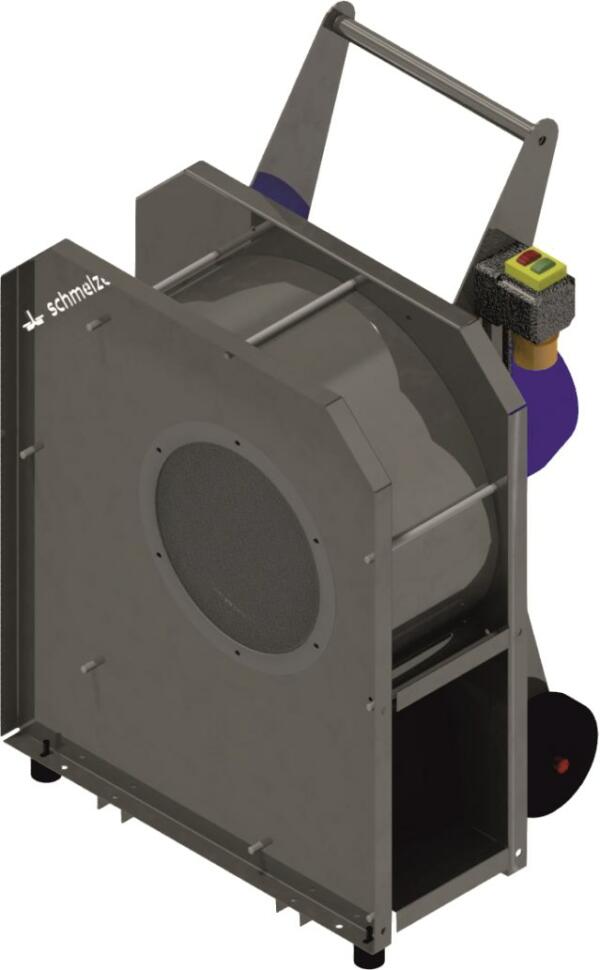

Air-Jet LC

Price on request or after logging in

plus shipping charges

  • housing position RD 270
  • stable welding construction
  • direct drive with high smoothness
  • screwed and robust construction
  • mobile wheels version
  • ready to use connection with included switch-plug-combination
  • including motor protection switch
  • fan with 3000 U/min
  • without transition

SKU: N/A Category:

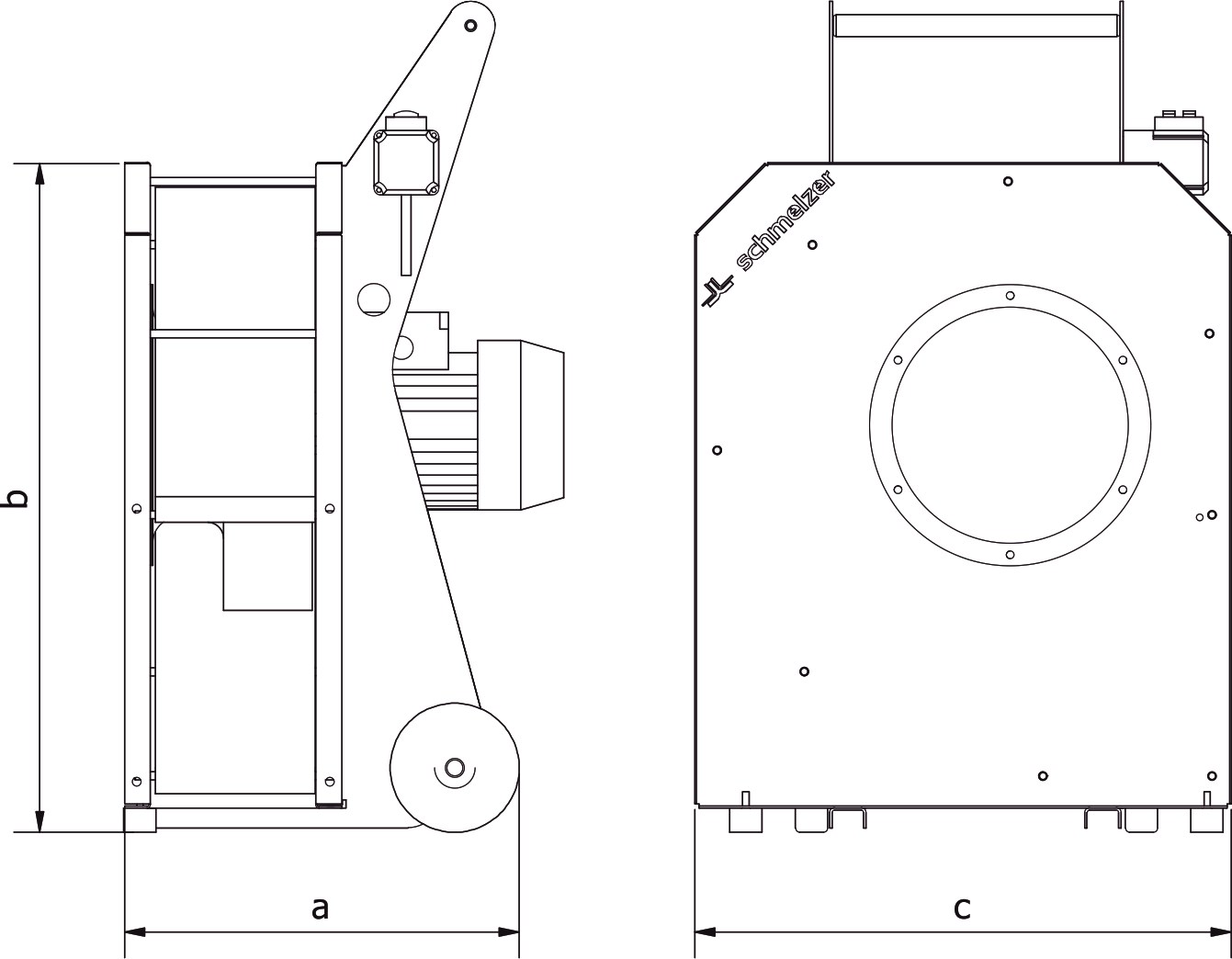

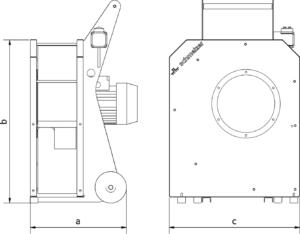

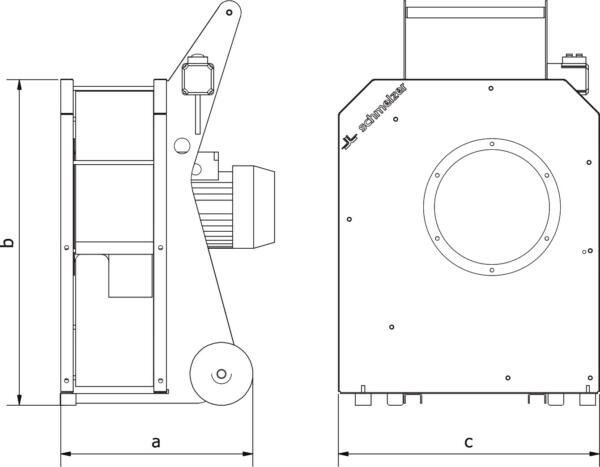

TypeArticlenumberOld ArticlenumberabckwU/minkg
1,1 kW 1001898 4009029015764 480 mm 463 mm 753 mm 1,1 2850 45,0
2,2 kW 1001899 4009029015765 600 mm 514 mm 882 mm 2,2 2880 59,0
3,0 kW 1001900 4009029015766 665 mm 537 mm 852 mm 3,0 2880 76,0
4,0 kW 1001901 4009029015767 665 mm 537 mm 852 mm 4,0 2920 90,0
5,5 kW 1001902 4009029015768 770 mm 653 mm 940 mm 5,5 2850 116,0
7,5 kW 1001903 4009029015769 770 mm 679 mm 940 mm 7,5 2850 131,0
11,0 kW 1001905 4009029015771 1055 mm 793 mm 780 mm 11 2850 238,0
15,0 kW 1001909 4009029015776 1055 mm 793 mm 780 mm 15 2850 248,0

You can find instruction manuals under the following link: Instruction manuals
