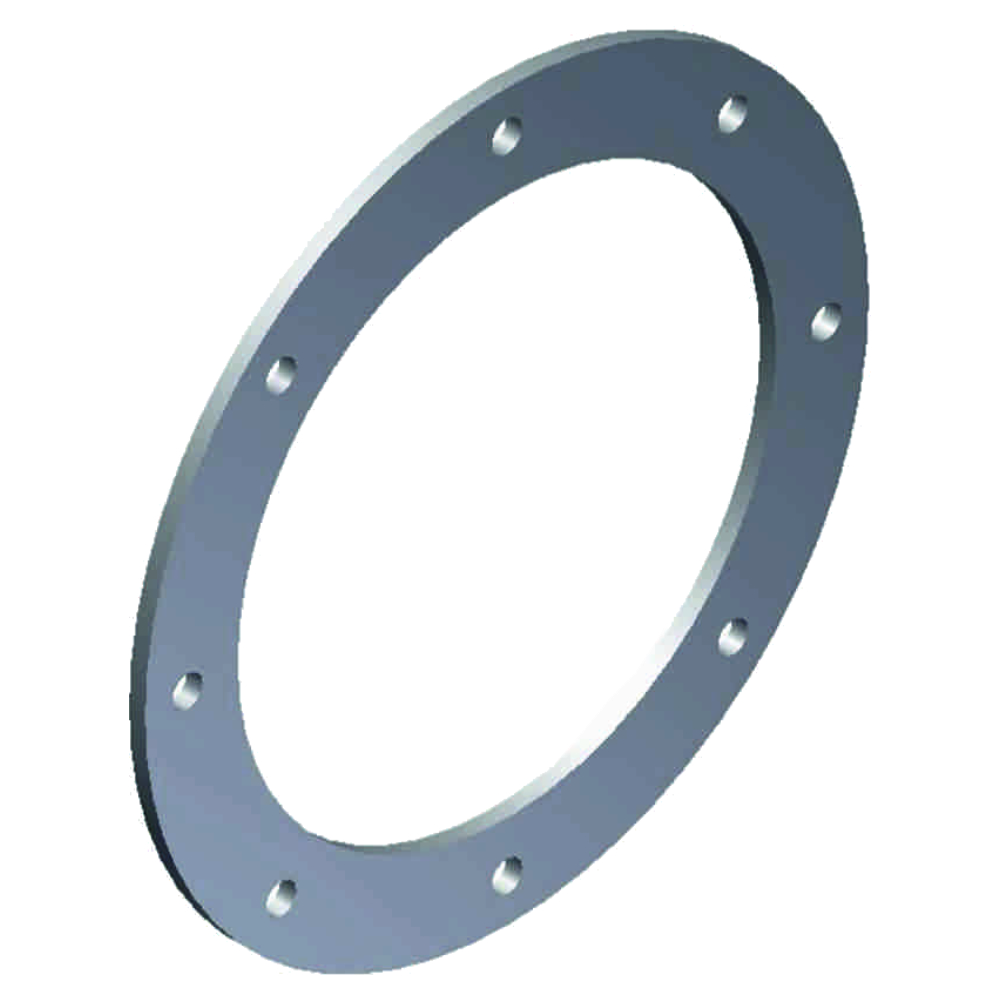

Flange RII
Price on request or after logging in
plus shipping charges; plus VAT
- galvanized
- flanges RII DIN 24154
- without seal

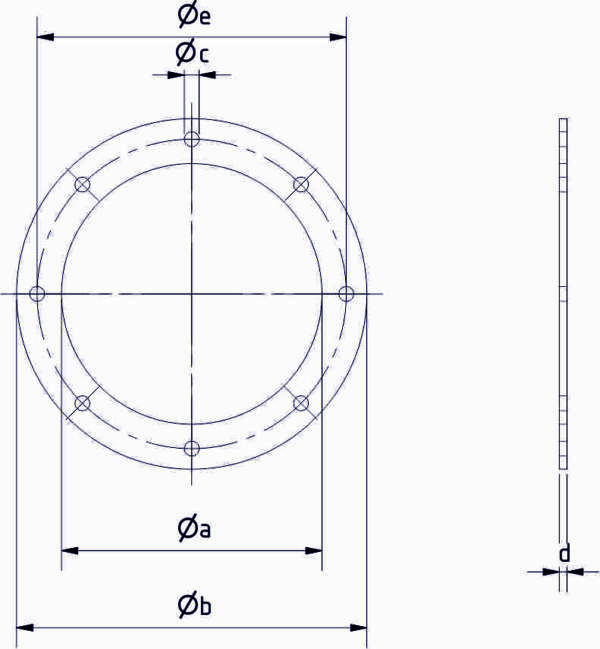

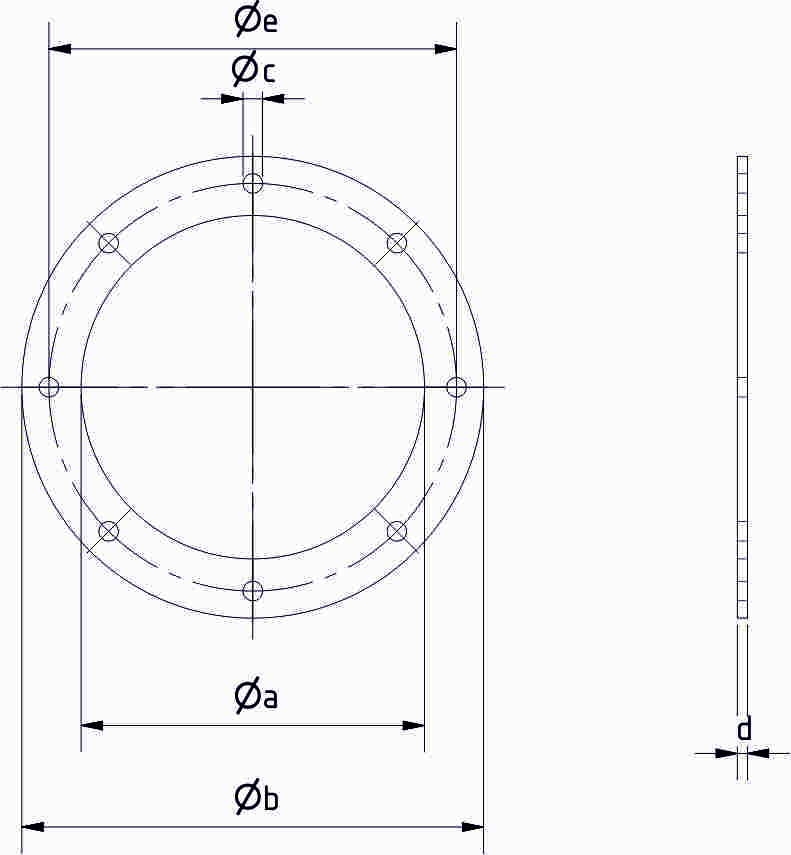

| Type | Articlenumber | Old Articlenumber | a | b | c | d | e | f | kg |
|---|---|---|---|---|---|---|---|---|---|
| DN 200 | 4000407 | 4010024015733 | 203 mm | 273 mm | 11,5 mm | 6 mm | 241 mm | 8 mm | 1,2 |
| DN 250 | 4000408 | 4010024015734 | 253 mm | 323 mm | 11,5 mm | 6 mm | 292 mm | 8 mm | 1,5 |
| DN 300 | 4000409 | 4010024015735 | 303 mm | 383 mm | 11,5 mm | 8 mm | 349 mm | 8 mm | 2,7 |
| DN 350 | 4000410 | 4010024015736 | 358 mm | 438 mm | 11,5 mm | 8 mm | 405 mm | 8 mm | 3,1 |
| DN 400 | 4000411 | 4010024015737 | 404 mm | 484 mm | 11,5 mm | 8 mm | 448 mm | 12 mm | 3,5 |
You can find instruction manuals under the following link: Instruction manuals
