Fork piece 1×45°

Price on request or after logging in

plus shipping charges

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized (vz.) or powder-coated (pb.)

SKU: N/A Category:

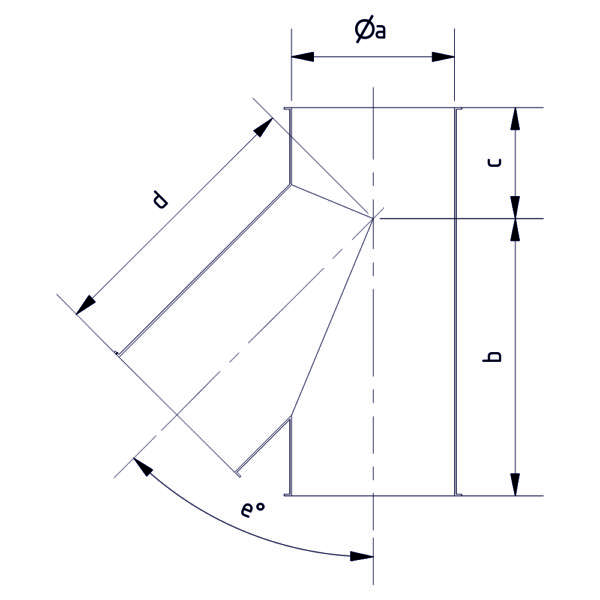

TypeArticlenumberOld Articlenumberabcdekg
DN 150 1,5mm vz. 1001425 4010008015666 149 mm 222 mm 58 mm 213 mm 45° 2,0
DN 150 2mm vz. 1001427 4010008015668 149 mm 222 mm 58 mm 213 mm 45° 2,9
DN 175 2mm vz. 1001446 4010008015706 174 mm 273 mm 67 mm 259 mm 45° 4,0
DN 200 2mm vz. 1001429 4010008015674 199 mm 320 mm 78 mm 280 mm 45° 5,3
DN 250 2mm vz. 1001431 4010008015676 249 mm 391 mm 101 mm 340 mm 45° 7,7
DN 300 2mm vz. 1001441 4010008015688 299 mm 418 mm 102 mm 412 mm 45°
350 2mm vz. 1001478 4010008015742 349 mm 497 mm 118 mm 473 mm 45°
DN 400 2mm vz. 1001479 4010008015743 399 mm 557 mm 128 mm 533 mm 45°
DN 200 3mm vz. 1001434 4010008015679 199 mm 709 mm 71 mm 280 mm 45° 7,7
DN 250 3mm vz. 1001435 4010008015680 249 mm 357 mm 88 mm 349 mm 45° 10,3
DN 300 3mm vz. 1001437 4010008015682 299 mm 418 mm 102 mm 412 mm 45° 15,5
DN 350 3mm vz. 1001448 4010008015708 349 mm 497 mm 118 mm 473 mm 45° 20,6
DN 400 3mm vz. 1001449 4010008015709 399 mm 557 mm 128 mm 533 mm 45° 23,4
DN 200 3mm pb. 1001464 4010008015724 199 mm 309 mm 71 mm 280 mm 45° 7,7
DN 250 3mm pb. 1001465 4010008015725 249 mm 357 mm 88 mm 349 mm 45° 10,3
DN 300 3mm pb. 1001466 4010008015726 299 mm 418 mm 102 mm 412 mm 45° 15,5
DN 350 3mm pb. 1001467 4010008015727 349 mm 497 mm 118 mm 473 mm 45° 20,6
DN 400 3mm pb. 1001468 4010008015728 399 mm 557 mm 128 mm 533 mm 45° 23,4

You can find instruction manuals under the following link: Instruction manuals

File
4010008015666-Gabelstück NW 150 1x45° (15.63 KB)
4010008015706-Gabelstück NW 175 1x45° (47.91 KB)
