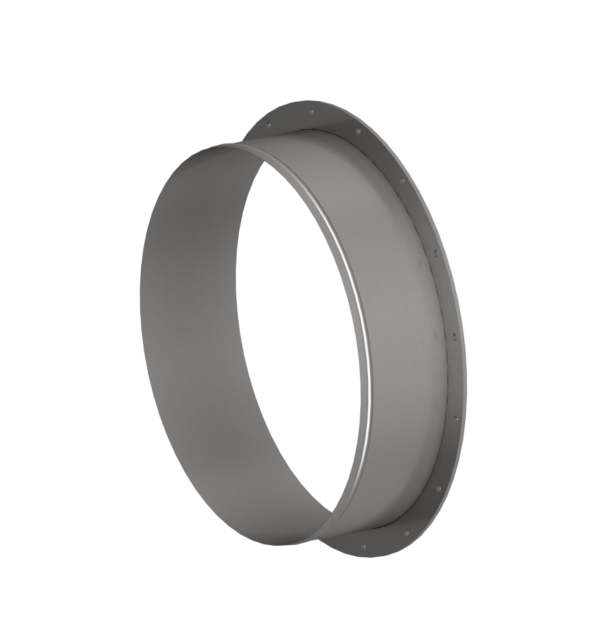

Intake manifold ASAJG

Price on request or after logging in

plus shipping charges

  • Intake manifold for ASAJG fans
  • Inner diameter a suitable for spiral seam mouldings
  • Alternative: External bead for expansion joint with tensioning strap or similar
  • Galvanised sheet steel
  • Short installation length



SKU: N/A Category:

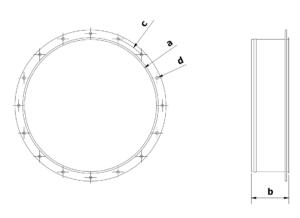

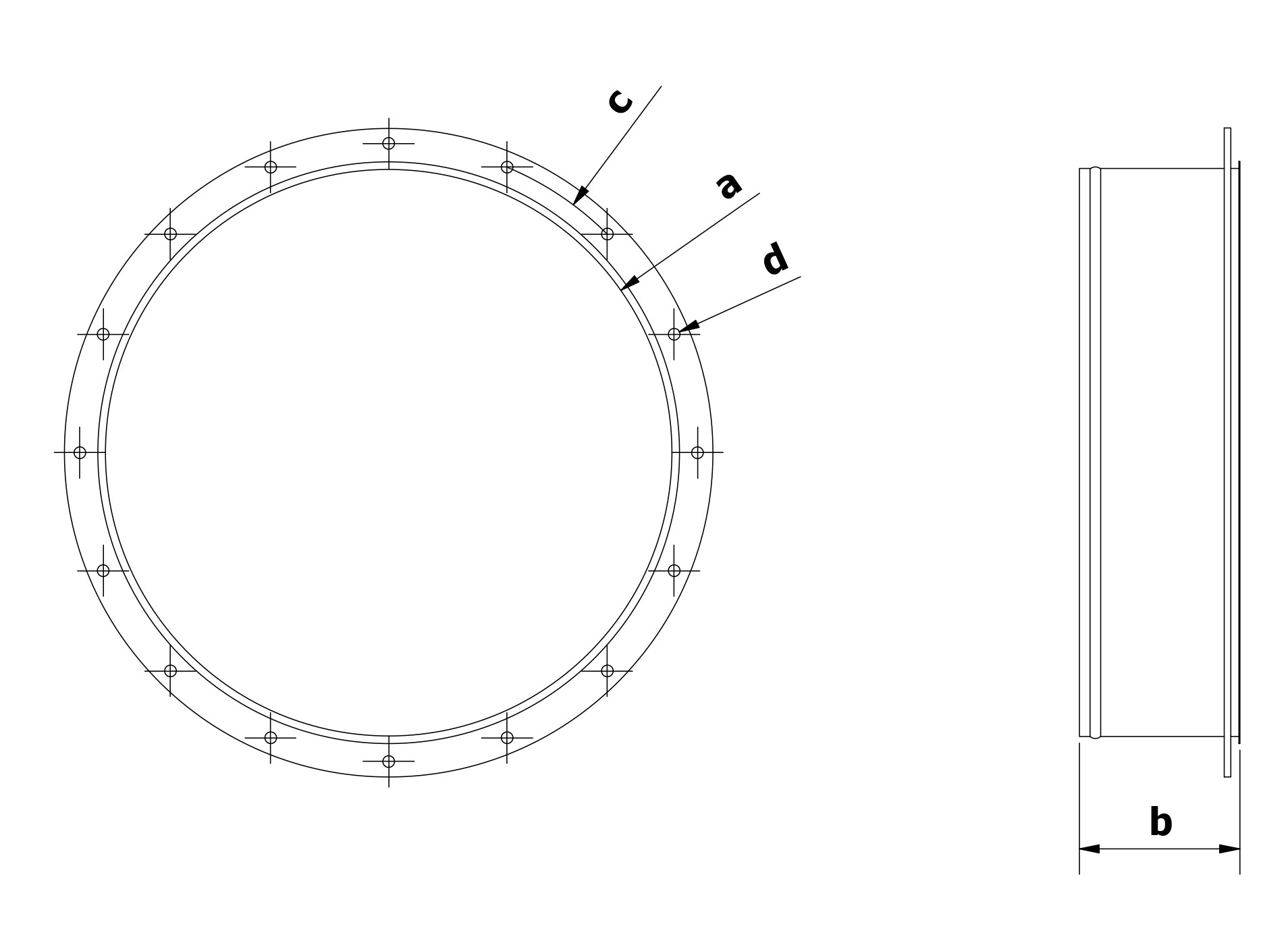

TypeArticlenumberabcdkg
5,5 / 7,5 kW 1003923 630 mm 200 mm 698 mm 16xØ14 mm 11
11,0 / 15,0 kW 1003924 710 mm 200 mm 775 mm 16xØ14 mm 12,5
18,5 / 22,0 kW 1003925 800 mm 200 mm 861 mm 16xØ14 mm 12
37,0 / 45,0 kW 1003926 900 mm 200 mm 958 mm 16xØ14 mm 16

You can find instruction manuals under the following link: Instruction manuals
