Modular two way valve 2×45° pneumatic
Price on request or after logging in
plus shipping charges
- modular construction
- motor can be mounted on both sides
- galvanized
- pulled in the tool
- without limit switch
- please order limit switch separately
- 5 bar operating pressure
- delivered unassembled

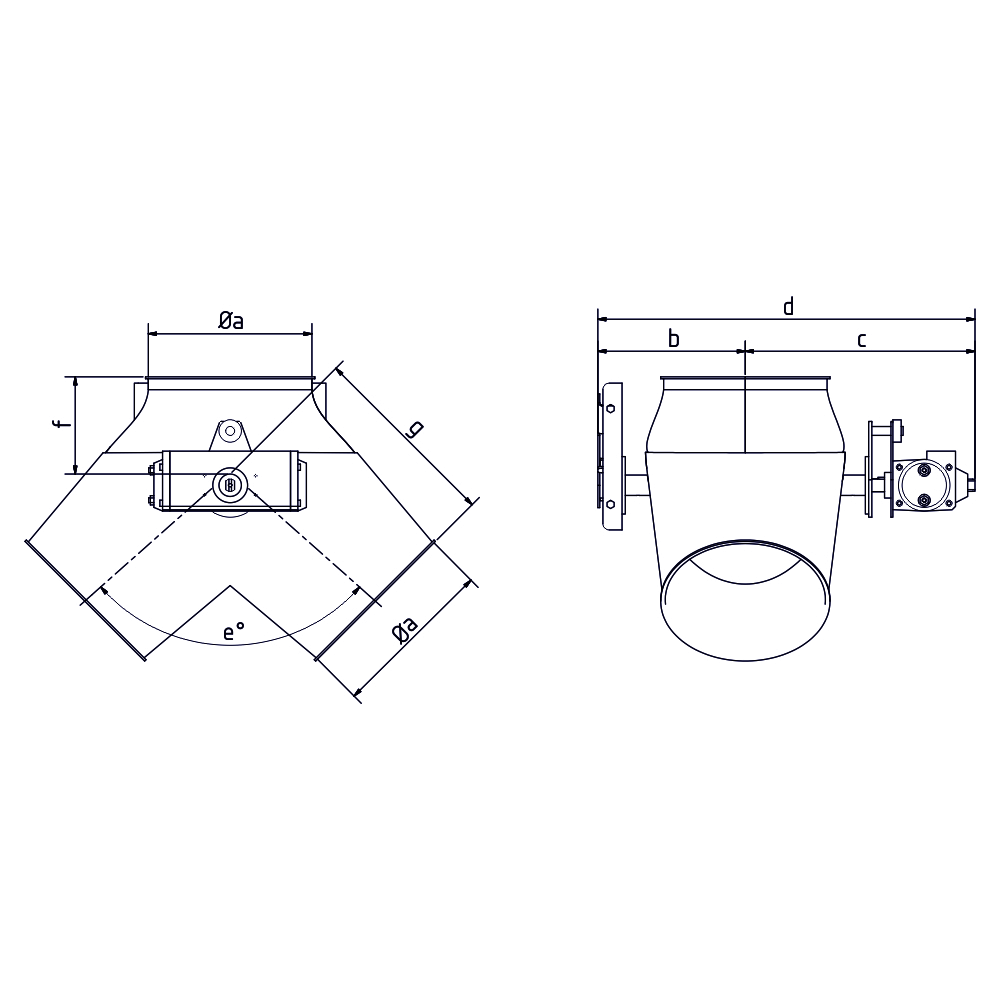

Type | Articlenumber | Old Articlenumber | a | b | c | d | e | f | g | kg |
---|---|---|---|---|---|---|---|---|---|---|
DN 150 2mm vz. | 1001284 | 4010010015896 | 149 mm | 203 mm | 303 mm | 506 mm | 90° | 66 mm | 191 mm | 9,7 |
DN 175 2mm vz. | 1001285 | 4010010015897 | 174 mm | 210 mm | 310 mm | 520 mm | 90° | 77 mm | 222 mm | 11,5 |
DN 200 2mm vz. | 1001286 | 4010010015898 | 199 mm | 233 mm | 333 mm | 566 mm | 90° | 102 mm | 254 mm | 13,3 |
DN 250 2mm vz. | 1001287 | 4010010015899 | 249 mm | 263 mm | 263 mm | 626 mm | 90° | 124 mm | 322 mm | 17,0 |
DN 300 2mm vz. | 1001288 | 4010010015900 | 299 mm | 293 mm | 393 mm | 686 mm | 90° | 148 mm | 386 mm | 23,1 |
DN 200 3mm vz. | 1001289 | 4010010015901 | 199 mm | 233 mm | 333 mm | 566 mm | 90° | 102 mm | 254 mm | 16,3 |
DN 250 3mm vz. | 1001290 | 4010010015902 | 249 mm | 263 mm | 363 mm | 626 mm | 90° | 124 mm | 322 mm | 22,2 |
DN 300 3mm vz. | 1001291 | 4010010015903 | 299 mm | 293 mm | 393 mm | 686 mm | 90° | 148 mm | 386 mm | 28,3 |
You can find instruction manuals under the following link: Instruction manuals
