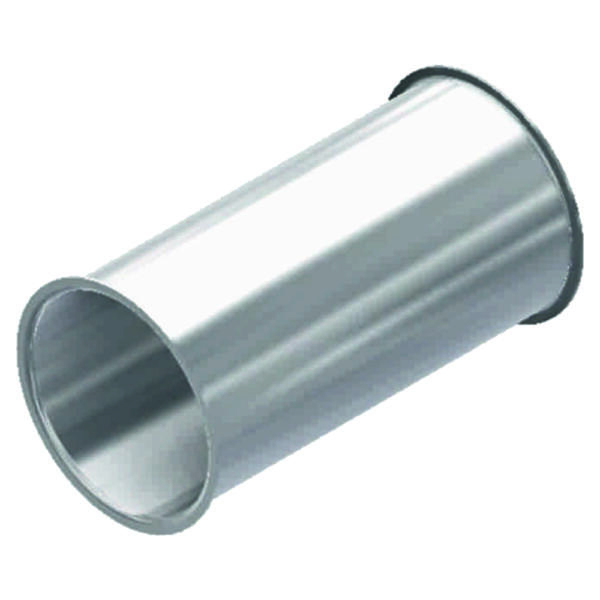

Pipe ASW nominal length 250
Price on request or after logging in
plus shipping charges
- superior roundness
- Schmelzer flanged edge
- calibrated inside
- sendzimir galvanized (vz.) or powder-coated (pb.)
- laser welded

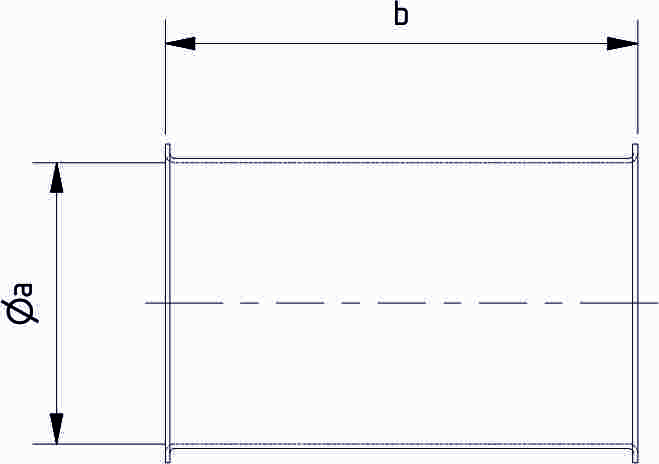

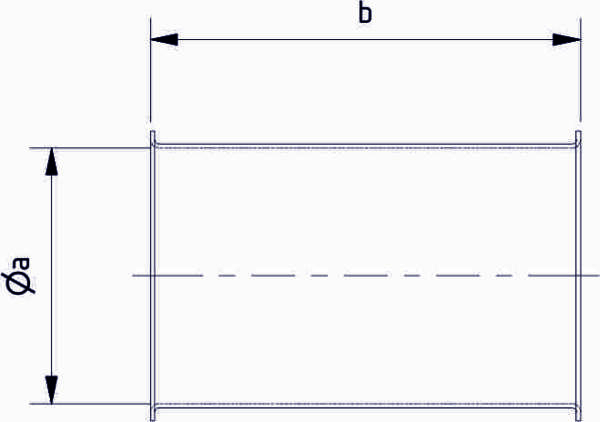

Type | Articlenumber | Old Articlenumber | a | b | kg |
---|---|---|---|---|---|
DN 100 1mm vz. | 1001372 | 4010014015886 | 99 mm | 238 mm | 0,6 |
DN 120 1mm vz. | 1001380 | 4010014015895 | 119 mm | 238 mm | 0,7 |
DN 150 1mm vz. | 1001301 | 4010014015669 | 149 mm | 238 mm | 0,9 |
DN 200 1mm vz. | 1001367 | 4010014015878 | 199 mm | 238 mm | 1,2 |
DN 250 1mm vz. | 1001374 | 4010014015889 | 249 mm | 238 mm | 1,5 |
DN 300 1mm vz. | 1001375 | 4010014015890 | 299 mm | 238 mm | 1,8 |
DN 150 2mm vz. | 1001379 | 4010014015894 | 149 mm | 238 mm | 1,8 |
DN 175 2mm vz. | 1001385 | 4010014015902 | 174 mm | 238 mm | 2,1 |
DN 200 2mm vz. | 1001378 | 4010014015893 | 199 mm | 238 mm | 2,5 |
DN 250 2mm vz. | 1001368 | 4010014015879 | 249 mm | 238 mm | 3,1 |
DN 300 2mm vz. | 1001369 | 4010014015880 | 299 mm | 238 mm | 3,7 |
DN 200 3mm vz. | 1001365 | 4010014015860 | 199 mm | 238 mm | 5,1 |
DN 250 3mm vz. | 1001366 | 4010014015861 | 249 mm | 238 mm | 6,3 |
DN 200 3mm pb. | 1001401 | 4010014015920 | 199 mm | 238 mm | 5,1 |
DN 250 3mm pb. | 1001402 | 4010014015921 | 249 mm | 238 mm | 6,3 |
350 2mm vz. | 1001038 | 4010014015941 | 349 mm | 238 mm | |
DN 400 2mm vz. | 1001039 | 4010014015942 | 399 mm | 238 mm | |
DN 300 3mm vz. | 1001377 | 4010014015892 | 299 mm | 238 mm | 6,5 |
DN 350 3mm vz. | 1001386 | 4010014015903 | 349 mm | 238 mm | 6,8 |
DN 400 3mm vz. | 1001387 | 4010014015904 | 399 mm | 238 mm | 7,8 |
DN 300 3mm pb. | 1001403 | 4010014015922 | 299 mm | 238 mm | 6,5 |
DN 350 3mm pb. | 1001404 | 4010014015923 | 349 mm | 238 mm | 6,8 |
DN 400 3mm pb. | 1001405 | 4010014015924 | 399 mm | 238 mm | 7,8 |
You can find instruction manuals under the following link: Instruction manuals
