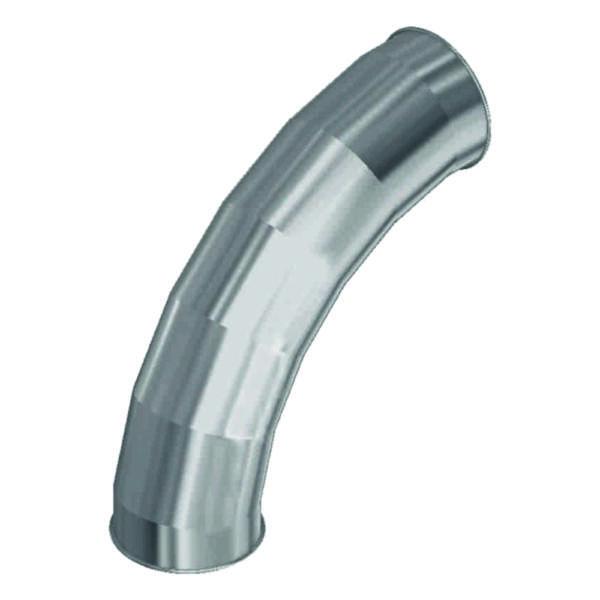

Pipe elbow with beaded flange r=750
Price on request or after logging in
plus shipping charges
- superior roundness
- beaded flange connection
- sendzimir galvanized
- horizontal folded
| Type | Articlenumber | Old Articlenumber | a | b | c | d | t |
|---|---|---|---|---|---|---|---|
| DN 250 15° | 1003680 | 4002015015785 | 250 mm | 750 mm | 15° | 8 mm | 0,88 mm |
| DN 250 30° | 1003672 | 4002015015770 | 250 mm | 750 mm | 30° | 8 mm | 0,88 mm |
| DN 250 45° | 1003673 | 4002015015771 | 250 mm | 750 mm | 45° | 8 mm | 0,88 mm |
| DN 250 90° | 1003677 | 4002015015782 | 250 mm | 750 mm | 90° | 8 mm | 0,88 mm |
You can find instruction manuals under the following link: Instruction manuals
