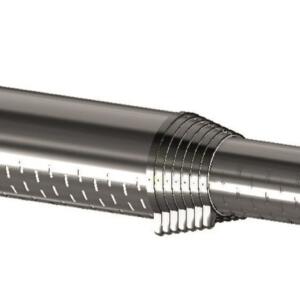

Telescope ventilation pipe

Price on request or after logging in

plus shipping charges

  • including extension cable
  • also suitable for rapeseed
  • easy handling and cleaning
  • air outlet area 22% of the total length
  • loadable up to 5m high

SKU: N/A Category:

TypeArticlenumberOld ArticlenumberPartsabckg
4 1002331 4009003016423 2 300 mm 2000 mm 3900 mm 42
6 1002332 4009003016424 3 300 mm 2100 mm 5800 mm 60
8 1002333 4009003016425 4 300 mm 2100 mm 7800 mm 75
10 1002334 4009003016426 5 300 mm 2200 mm 9700 mm 90
12 1002335 4009003016427 6 300 mm 2200 mm 12000 mm 103
14 1002336 4009003016428 7 300 mm 2200 mm 14000 mm 117
16 1002337 4009003016429 8 300 mm 2300 mm 15000 mm 129
18 1002338 4009003016430 9 300 mm 2300 mm 17000 mm 140
20 1002339 4009003016431 10 300 mm 2400 mm 19000 mm 150
22 1002346 4009003016438 11 300 mm 2800 mm 22000 mm 162
24 1002347 4009003016439 12 300 mm 2800 mm 23000 mm 174
26 1002348 4009003016440 13 300 mm 2900 mm 25000 mm 187
28 1002349 4009003016441 14 300 mm 2900 mm 27000 mm 200
30 1002350 4009003016442 15 300 mm 3000 mm 29000 mm 214

You can find instruction manuals under the following link: Instruction manuals
