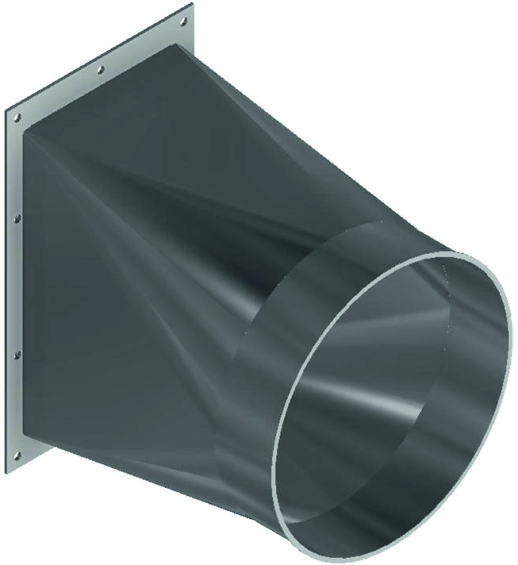

Transition Cyclone – ASW

Price on request or after logging in

  • Schmelzer flanged edge
  • sendzimir galvanized
  • for ASW pipe / coupling for joining of spiral duct / or loose rear head pipe flange

SKU: N/A Category:

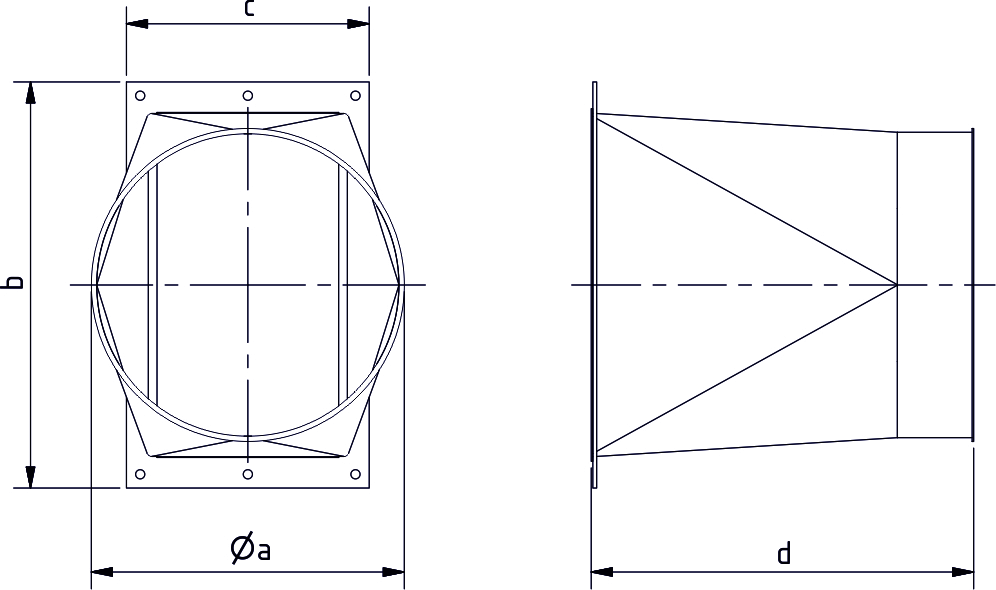

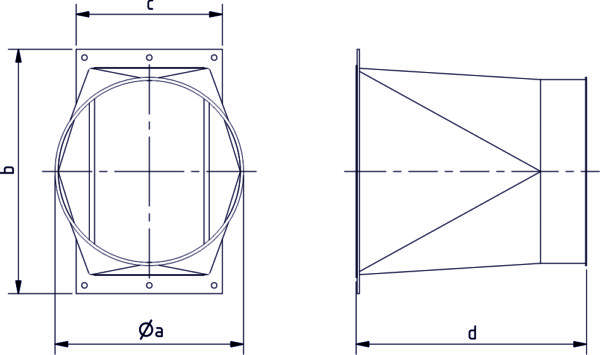

TypeArticlenumberOld Articlenumberabcdkg
ZZ20 4014023015691 250 mm 321 mm 266 mm 300 mm 3,5
ZZ40 1000693 4014023015695 250 mm 362 mm 266 mm 300 mm 3,7
ZZ60 1000694 4014023015696 350 mm 532 mm 318 mm 350 mm 5,8
ZZ80 1000695 4014023015697 400 mm 557 mm 322 mm 400 mm 7,1
ZZ100 1000696 4014023015698 450 mm 642 mm 382 mm 450 mm 8,9
ZZ120 1000697 4014023015699 450 mm 712 mm 397 mm 450 mm 9,5

You can find instruction manuals under the following link: Instruction manuals
