Valve standard plus type Helix-air

Price on request or after logging in

  • priming coated
  • flanges RII DIN 24154
  • bearing bush
  • electric acutator
  • with loose flange connection

SKU: N/A Category:

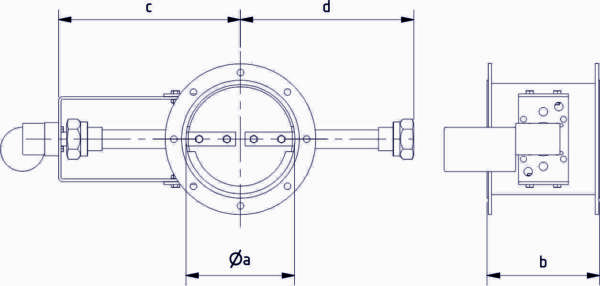

TypeArticlenumberOld Articlenumberabcdtkg
DN 160 1002632 4006030015680 159 mm 200 mm 399 mm 369 mm 2 mm 14,2
DN 180 1002633 4006030015681 179 mm 200 mm 409 mm 379 mm 2 mm 14,5
DN 200 1002634 4006030015682 200 mm 200 mm 420 mm 390 mm 2 mm 14,9
DN 250 1002635 4006030015683 250 mm 200 mm 445 mm 415 mm 2 mm 15,7
DN 280 1002636 4006030015684 280 mm 200 mm 460 mm 430 mm 2 mm 20,6
DN 315 1002637 4006030015685 315 mm 500 mm 477 mm 447 mm 2 mm 23,1
DN 355 1002638 4006030015686 355 mm 500 mm 497 mm 467 mm 2 mm 26,0
DN 400 1002639 4006030015687 401 mm 500 mm 520 mm 490 mm 2 mm 29,5
DN 450 1002640 4006030015688 451 mm 500 mm 545 mm 515 mm 2 mm 33,4
DN 500 1002641 4006030015689 501 mm 500 mm 570 mm 540 mm 2 mm 37,7
DN 560 1002642 4006030015690 561 mm 500 mm 600 mm 570 mm 2 mm 45,5
DN 630 1002643 4006030015691 631 mm 500 mm 635 mm 605 mm 2 mm 52,1
DN 710 1002644 4006030015692 711 mm 500 mm 675 mm 645 mm 2 mm 69,5
DN 800 1002645 4006030015693 801 mm 500 mm 720 mm 690 mm 2 mm 81,3
DN 900 1002646 4006030015694 901 mm 500 mm 770 mm 740 mm 2 mm 97,9
DN 1000 1002647 4006030015695 1002 mm 500 mm 821 mm 791 mm 2 mm 104,2

You can find instruction manuals under the following link: Instruction manuals
