Valve standard plus
Price on request or after logging in
plus shipping charges
- superior roundness
- Schmelzer flanged edge
- calibrated inside
- sendzimir galvanized
- bearing bush
- electric actuator

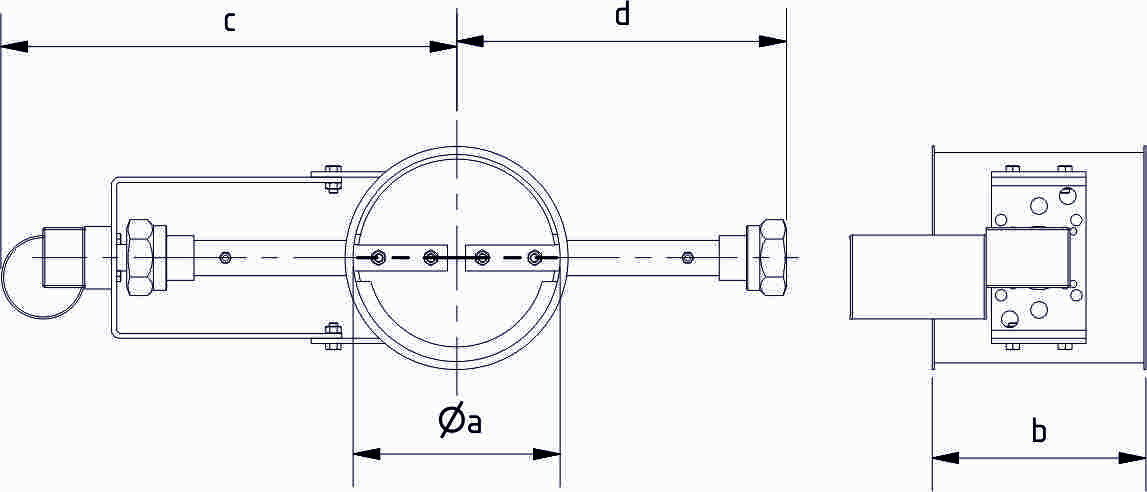

Type | Articlenumber | Old Articlenumber | a | b | c | d | kg |
---|---|---|---|---|---|---|---|
DN 100 2mm vz. | 1001213 | 4010010015795 | 99 mm | 200 mm | 435 mm | 315 mm | 5,6 |
DN 120 2mm vz. | 1001214 | 4010010015796 | 119 mm | 200 mm | 455 mm | 335 mm | 6,3 |
DN 150 2mm vz. | 1001215 | 4010010015797 | 149 mm | 200 mm | 485 mm | 365 mm | 7,7 |
DN 175 2mm vz. | 1001216 | 4010010015798 | 174 mm | 200 mm | 510 mm | 390 mm | 8,2 |
DN 200 2mm vz. | 1001217 | 4010010015799 | 199 mm | 200 mm | 535 mm | 415 mm | 10,4 |
DN 250 2mm vz. | 1001218 | 4010010015800 | 249 mm | 200 mm | 585 mm | 465 mm | 12,3 |
DN 300 2mm vz. | 1001219 | 4010010015801 | 299 mm | 500 mm | 635 mm | 515 mm | 25,4 |
350 2mm vz. | 1001220 | 4010010015802 | 349 mm | 500 mm | 685 mm | 565 mm | 25,4 |
DN 400 2mm vz. | 1001221 | 4010010015803 | 399 mm | 500 mm | 735 mm | 605 mm | 32,2 |
You can find instruction manuals under the following link: Instruction manuals
