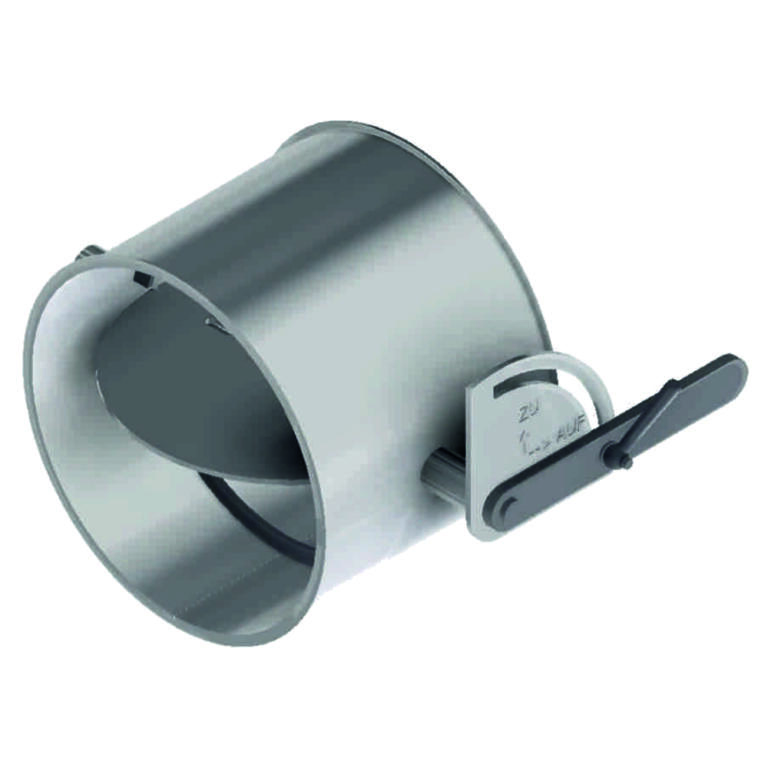

Valve standard

Price on request or after logging in

plus shipping charges

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • sendzimir galvanized
  • manual actuator for tightening

SKU: N/A Category:

TypeArticlenumberOld Articlenumberabcdkg
DN 100 2mm vz. 4000431 4010010015786 99 mm 200 mm 170 mm 100 mm 4,8
DN 120 2mm vz. 1001209 4010010015787 119 mm 200 mm 180 mm 110 mm 5,3
DN 150 2mm vz. 4000432 4010010015788 149 mm 200 mm 195 mm 125 mm 6,6
DN 175 2mm vz. 1001210 4010010015789 174 mm 200 mm 207 mm 137 mm 7,3
DN 200 2mm vz. 4000433 4010010015790 199 mm 200 mm 220 mm 150 mm 8,4
DN 250 2mm vz. 4000434 4010010015791 249 mm 200 mm 245 mm 175 mm 10,3
DN 300 2mm vz. 1001211 4010010015792 299 mm 500 mm 270 mm 200 mm 22,0
DN 350 2mm vz. 1001212 4010010015793 349 mm 500 mm 295 mm 225 mm 25,8
DN 400 2mm vz. 4000435 4010010015794 399 mm 500 mm 320 mm 250 mm 29,5

You can find instruction manuals under the following link: Instruction manuals
