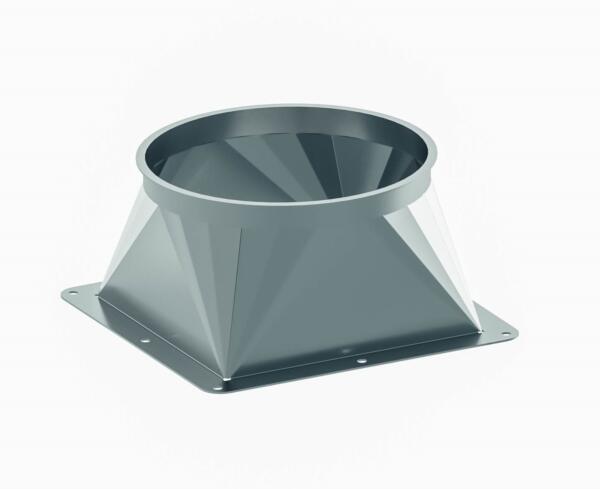

Adapter straigt

Price on request or after logging in

plus shipping charges

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • galvanized
  • powder coated available on request

Marked with *: suitable for modular sliders

SKU: N/A Category:

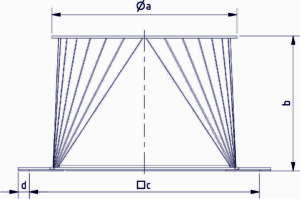

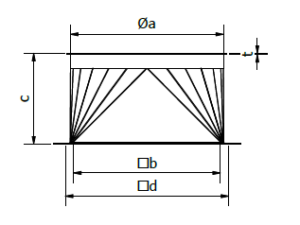

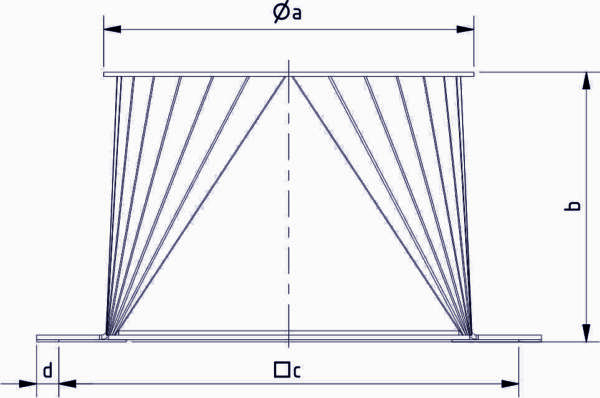

TypeArticlenumberOld Articlenumberabcdtkg
DN 150 1,5mm 1000976 4010023015673 150 mm 160 mm 120 mm 195 (4xØ8,5) mm 1,5 mm 1,1
DN 150 2mm 1000978 4010023015675 150 mm 159 mm 120 mm 195 (4xØ8,5) mm 2 mm 1,5
DN 200 2mm 1000980 4010023015677 199 mm 216 mm 122 mm 235 (4xØ9) mm 2 mm 1,8
DN 200 2mm* 1000080 4018023015670 199 mm 199 mm 150 mm 233 (8xØ9) mm 2 mm 2,2
DN 250 2mm 1000984 4010023015687 249 mm 266 mm 120 mm 290 (4xØ9) mm 2 mm 2,3
DN 250 2mm* 1000081 4018023015671 249 mm 249 mm 150 mm 283 (8xØ9) mm 2 mm 2,7
DN 300 2mm* 1000082 4018023015672 299 mm 299 mm 150 mm 333 (8xØ9) mm 2 mm 3,2
DN 350 2mm* 1000095 4018023015698 349 mm 349 mm 150 mm 383 (8xØ9) mm 2 mm 3,7
DN 350 2mm* 1000025 4018060015737 349 mm 399 mm 150 mm 433 (12xØ9) mm 2 mm 4,2
DN 400 2mm* 1000094 4018023015697 399 mm 399 mm 150 mm 433 (12xØ9) mm 2 mm 4,3

You can find instruction manuals under the following link: Instruction manuals
