Awaiting product image

Entry

Price on request or after logging in

plus shipping charges

  • without lining
  • galvanized

SKU: N/A Category:

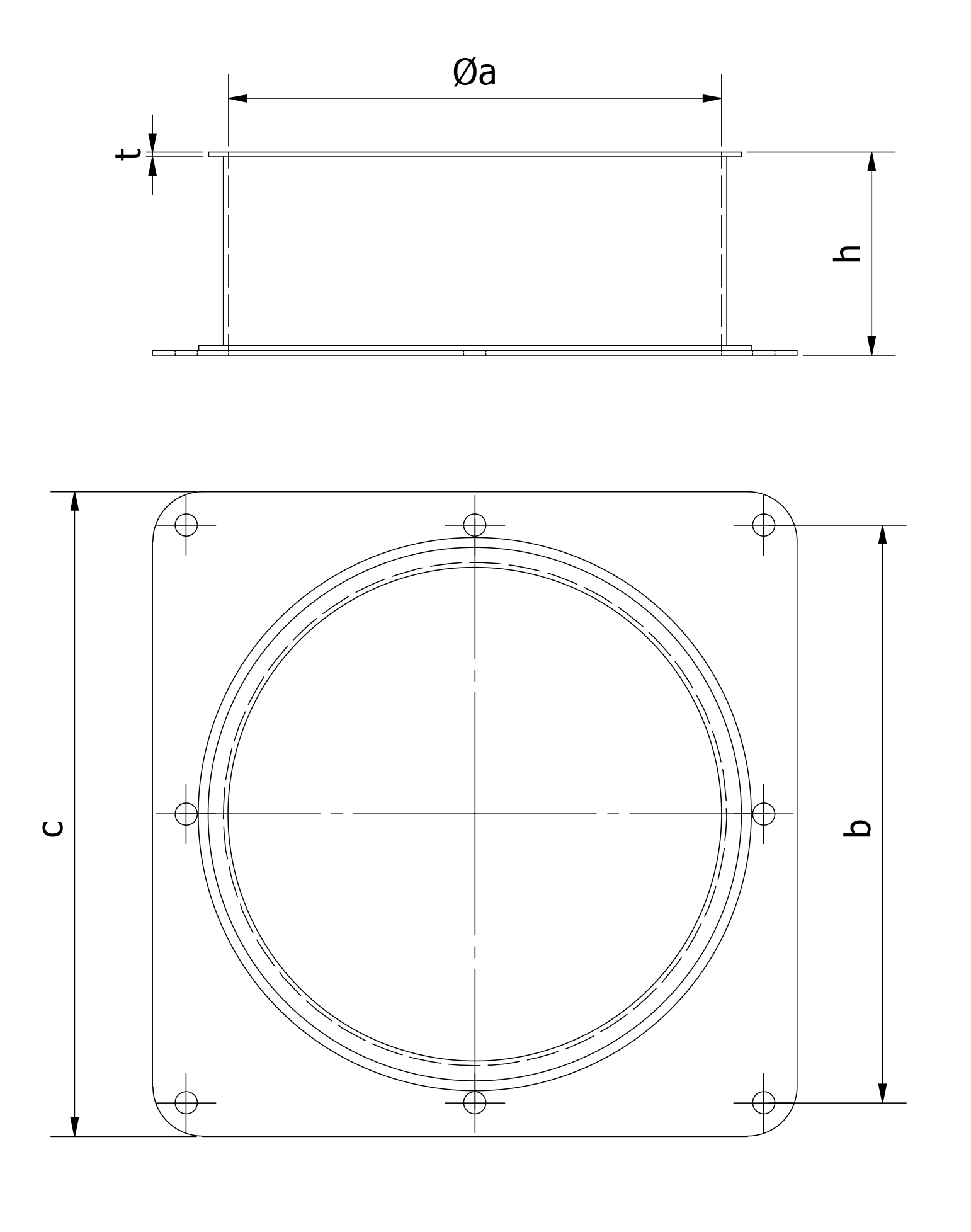

TypeArticlenumberOld Articlenumberabchtkg
DN 200 1000086 4018023015681 199 mm 233 (8xØ9) mm 260 mm 82 mm 2 mm 1,5
DN 250 1000087 4018023015682 249 mm 283 (8xØ9) mm 310 mm 82 mm 2 mm 1,9
DN 300 1000088 4018023015683 299 mm 333 (8xØ9 mm 360 mm 82 mm 2 mm 2,3
DN 350 1000096 4018023015699 349 mm 383 (8xØ9) mm 410 mm 82 mm 2 mm 2,8
DN 400 1000097 4018023015700 399 mm 433 (12xØ9) mm 460 mm 82 mm 2 mm 3,3

You can find instruction manuals under the following link: Instruction manuals
