Air-Jet ASAJG

Price on request or after logging in

plus shipping charges

  • housing positin RD 270
  • stable welding construction
  • direct drive with high smoothness
  • high quality corrosion protection RAL 5010
  • medium pressure fan with 1500 U/min // 1000 U/min
  • alternatively available with motor protection swich
  • including intake protection
  • individual components available on request
  • optionally steel construction for transport by forklift also available
  • without transition

SKU: N/A Category:

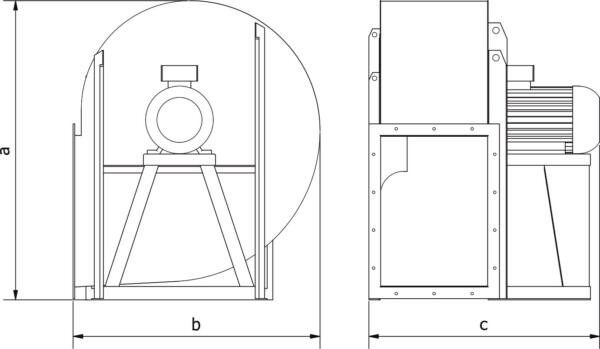

TypeArticlenumberOld ArticlenumberabckwLp(A)*U/minkg
5,5 kW 1001890 4009029015741 1262 mm 1252 mm 964 mm 5,5 83 dB 1470 202
7,5 kW 1001843 4009029015676 1262 mm 1252 mm 964 mm 7,5 83 dB 1470 214
11kW 1001857 4009029015691 1415 mm 1189 mm 1196 mm 11,0 84 dB 1475 315
15,0 kW 1001844 4009029015677 1415 mm 1189 mm 1196 mm 15,0 86 dB 1475 326
18,5 kW 1001858 4009029015692 1591 mm 1314 mm 1224 mm 18,5 87 dB 1475 465
22,0 kW 1001845 4009029015678 1591 mm 1314 mm 1224 mm 22,0 87 dB 1475 484
37,0 kW 4000532 4009029015783 1780 mm 1475 mm 1374 mm 37 89 dB 1475 840
45,0 kW 4000536 4009029015805 1780 mm 1475 mm 1374 mm 45 91 dB 1475 847

You can find instruction manuals under the following link: Instruction manuals
