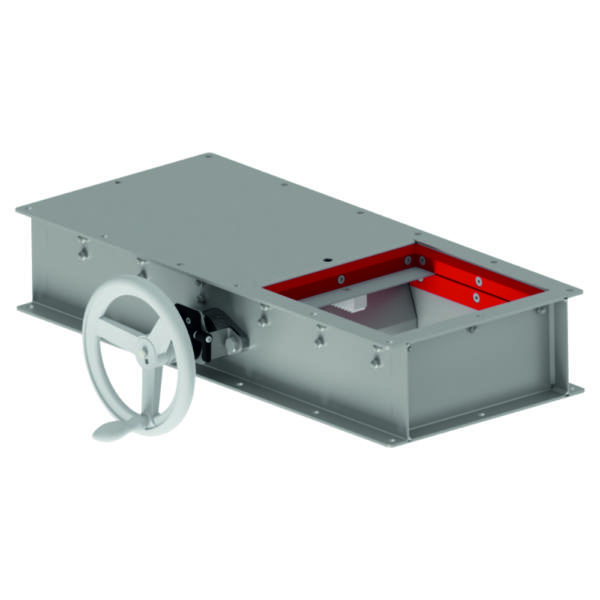

Discharge valve with hand wheel
Price on request or after logging in
plus shipping charges; plus VAT
- Manual operation by handwheel
- Hot-dip galvanized frame
- Mechanical limit switches in end position included (1000801)
- Without transitions
- With sealing strip

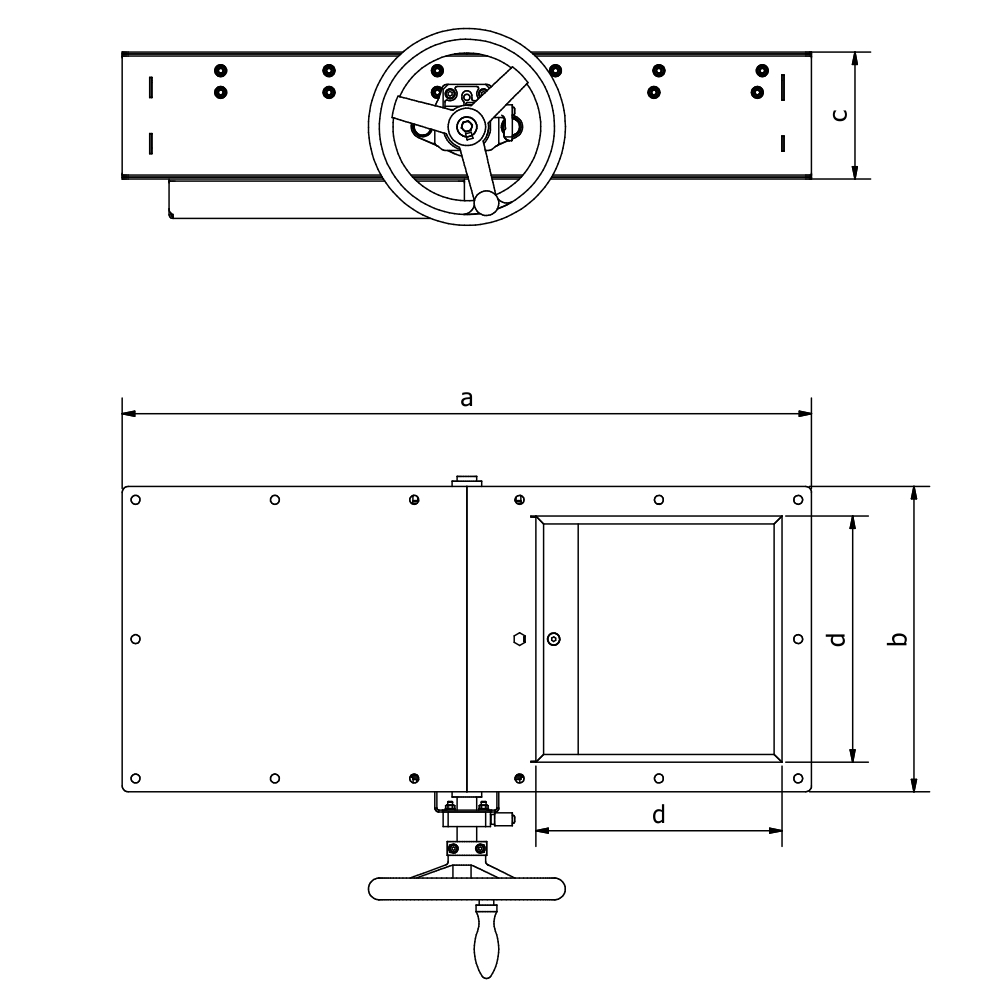

| Type | Articlenumber | Old Articlenumber | a | b | c | d |
|---|---|---|---|---|---|---|
| DN 200 2mm vz. | 1000901 | 4010017015722 | 600 mm | 260 mm | 129 mm | 200 mm |
| DN 250 2mm vz. | 1000905 | 4010017015726 | 700 mm | 310 mm | 129 mm | 250 mm |
| DN 300 2mm vz. | 1000909 | 4010017015730 | 800 mm | 360 mm | 129 mm | 300 mm |
| DN 350 2mm vz. | 1000914 | 4010017015735 | 900 mm | 410 mm | 129 mm | 350 mm |
| DN 400 2mm vz. | 1000918 | 4010017015739 | 1000 mm | 460 mm | 129 mm | 400 mm |
You can find instruction manuals under the following link: Instruction manuals
