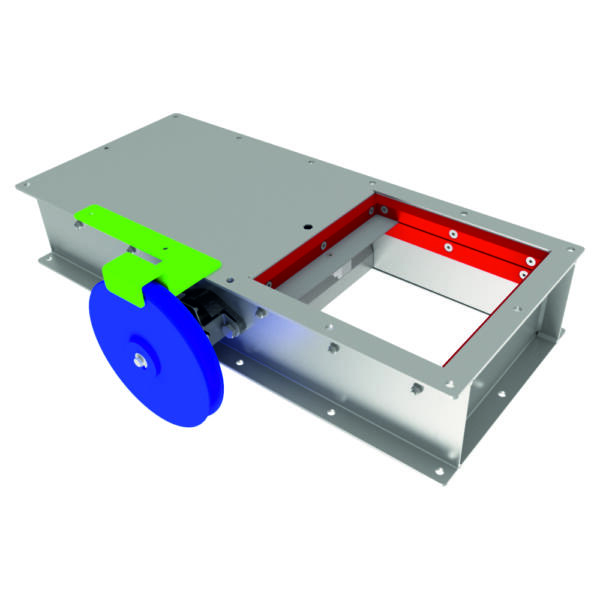

Outlet slider with chain wheel
Price on request or after logging in
plus shipping charges
- Modular
- Chain wheel
- Galvanized
- Incl. 2 mechanical limit switches (1000801)

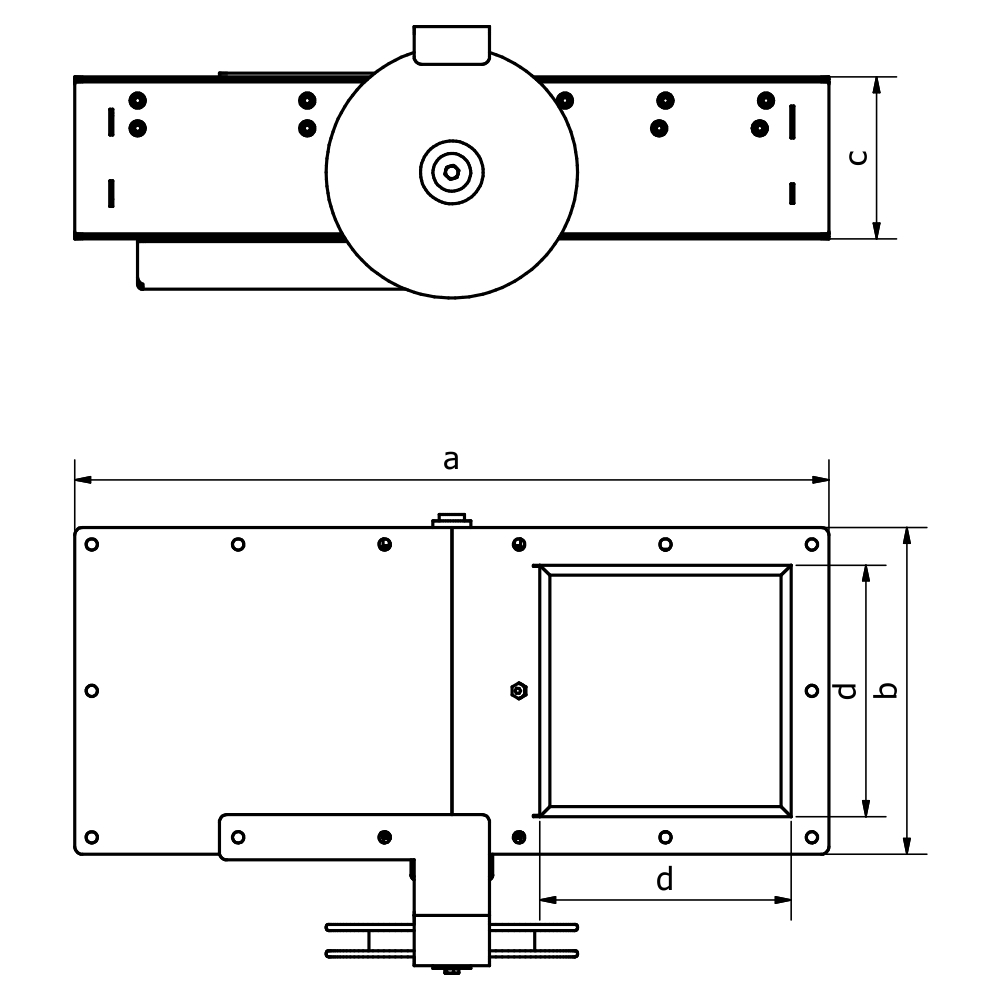

| Type | Articlenumber | Old Articlenumber | a | b | c | d |
|---|---|---|---|---|---|---|
| DN 200 2mm vz. | 1000903 | 4010017015724 | 600 mm | 260 mm | 129 mm | 200 mm |
| DN 250 2mm vz. | 1000907 | 4010017015728 | 700 mm | 310 mm | 129 mm | 250 mm |
| DN 300 2mm vz. | 1000911 | 4010017015732 | 800 mm | 360 mm | 129 mm | 300 mm |
| DN 350 2mm vz. | 1000916 | 4010017015737 | 900 mm | 410 mm | 129 mm | 350 mm |
| DN 400 2mm vz. | 1000920 | 4010017015741 | 1000 mm | 460 mm | 129 mm | 400 mm |
You can find instruction manuals under the following link: Instruction manuals
