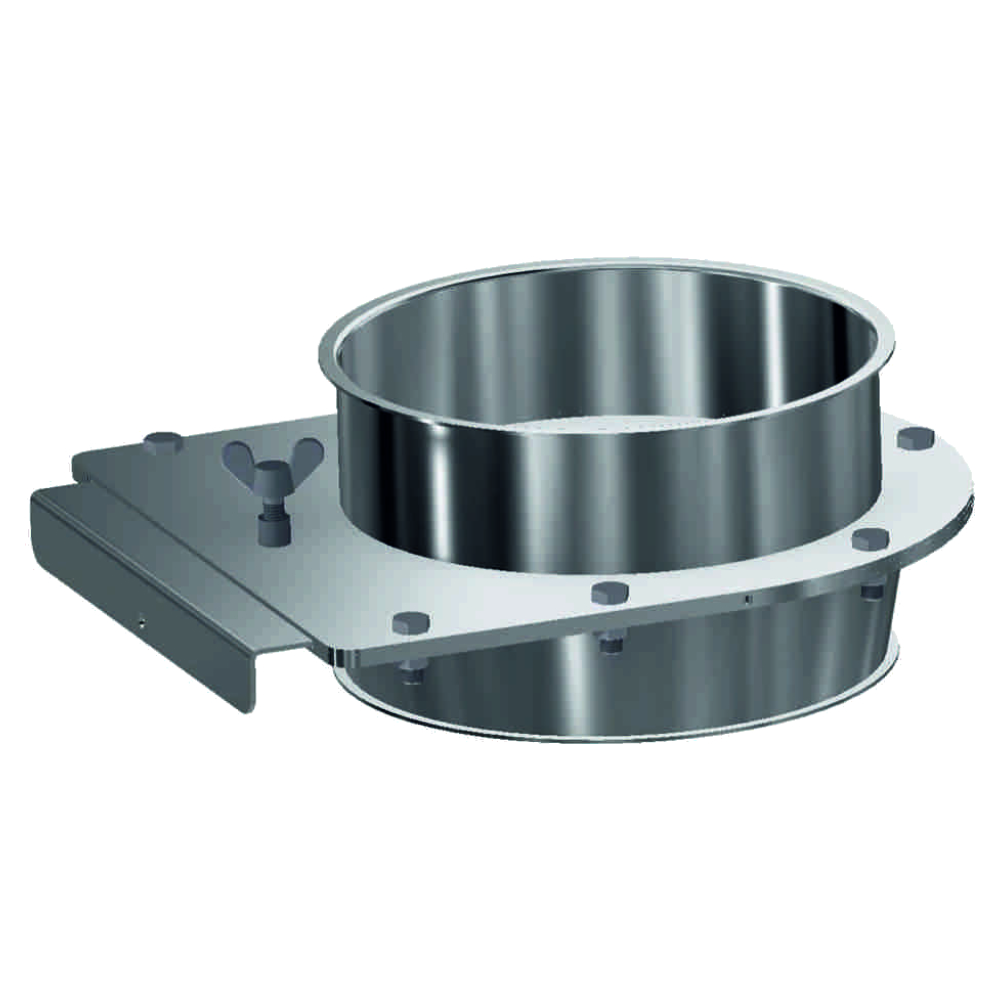

Flat slider
Flat slider - Image 2

Flat slider

Price on request or after logging in

plus shipping charges; plus VAT

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized (vz.) or powder-coated (pb.)
  • high tightness even when the slider is opened
  • cleaning opening for guide rails
  • fixing gate valve
SKU: N/A Category:

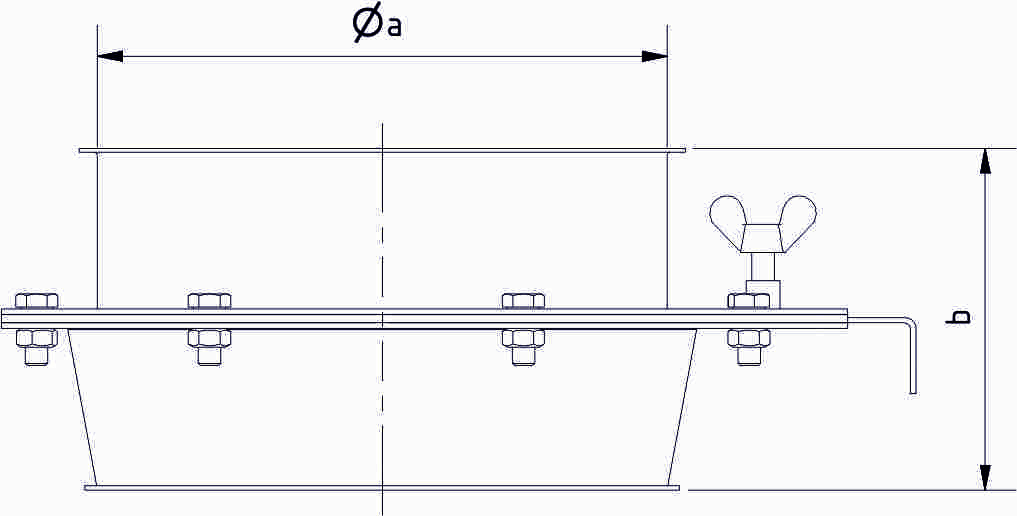

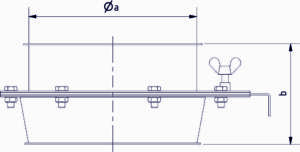

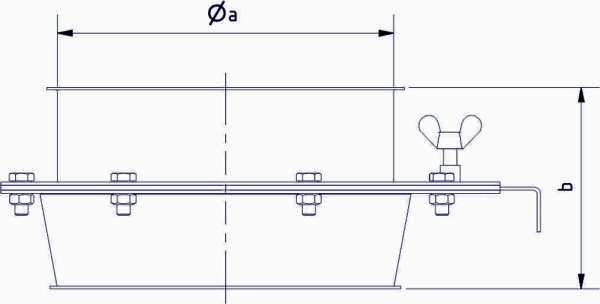

TypeArticlenumberOld Articlenumberabkg
DN 150 1,5mm vz. 1000892 4010017015711 149 mm 120 mm 2,8
DN 175 1,5mm vz. 1000893 4010017015712 174 mm 120 mm 3,4
DN 200 2mm vz. 1000891 4010017015710 199 mm 120 mm 5,9
DN 250 2mm vz. 1000894 4010017015713 249 mm 120 mm 6,5
DN 300 2mm vz. 1000895 4010017015714 299 mm 120 mm 7,2
350 2mm vz. 1000889 4010017015697 349 mm 120 mm 9,4
DN 400 2mm vz. 1000890 4010017015698 399 mm 120 mm 13,0

You can find instruction manuals under the following link: Instruction manuals

File
4010017015710 - Absperrschieber d200-2mm als Flachschieber-Zusammenbau (116.61 KB)
4010017015713 - Absperrschieber d250-2mm als Flachschieber-Zusammenbau (111.73 KB)
