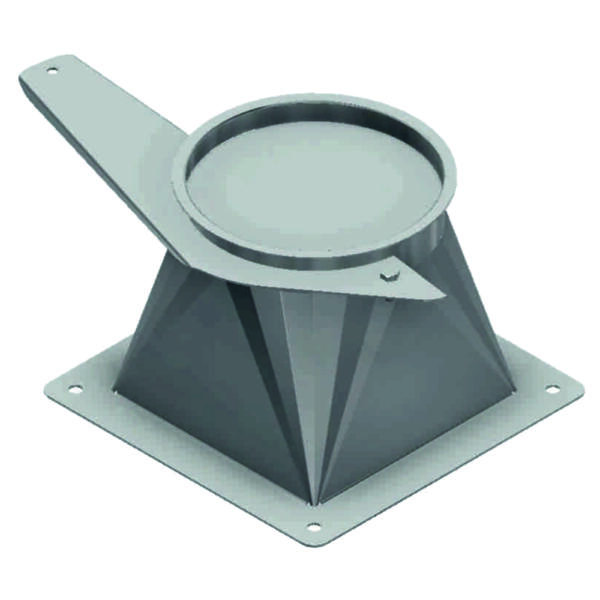

Outlet hatch straight
Price on request or after logging in
plus shipping charges; plus VAT
- superior roundness
- Schmelzer flanged edge
- calibrated inside
- sendzimir galvanized (vz.) or powder-coated (pb.)
- with Rotary slide

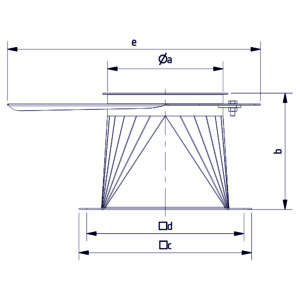

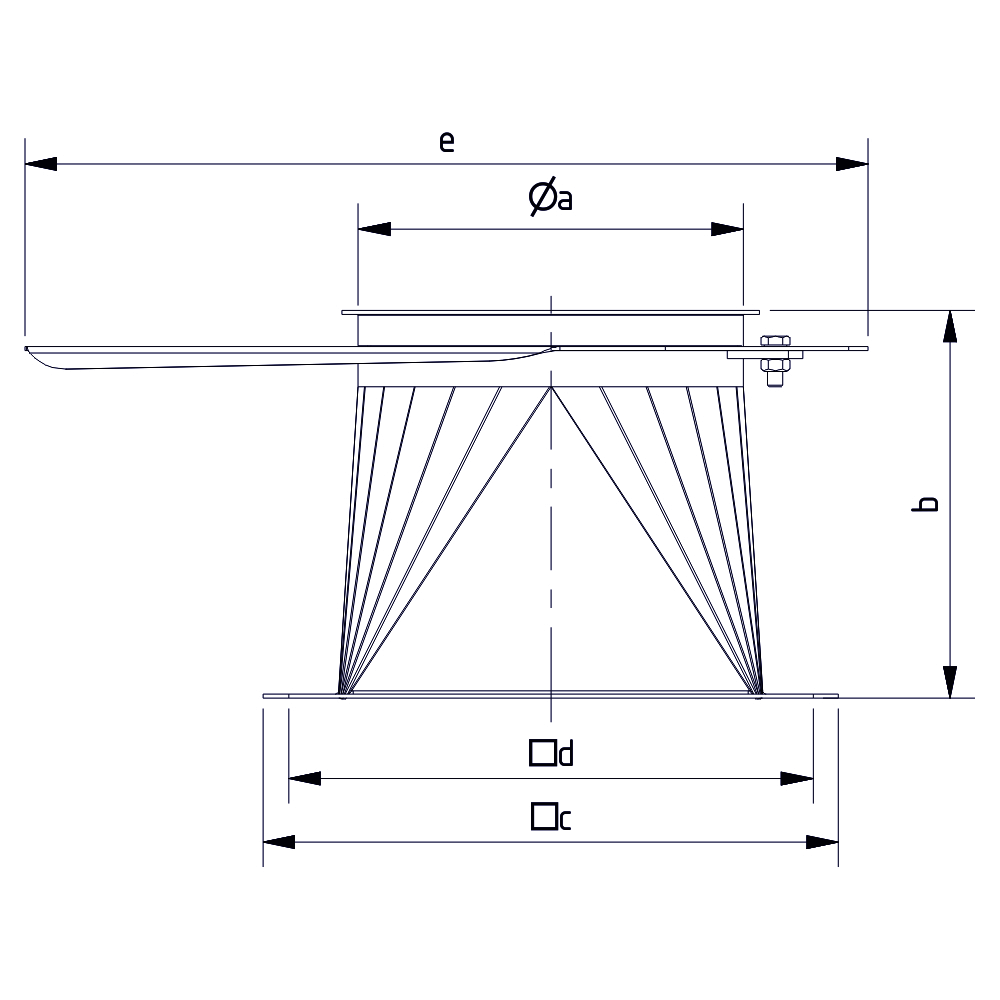

| Type | Articlenumber | Old Articlenumber | a | b | c | d | e | kg |
|---|---|---|---|---|---|---|---|---|
| DN 150 1,5mm | 1001406 | 4010001015665 | 150 mm | 153 mm | 227 mm | 207 mm | 333 mm | 1,4 |
| DN 150 2mm | 1001408 | 4010001015667 | 150 mm | 153 mm | 227 mm | 207 mm | 333 mm | 1,9 |
| DN 200 2mm | 1001410 | 4010001015669 | 200 mm | 190 mm | 270 mm | 240 mm | 430 mm | 3,8 |
| DN 250 2mm | 1001412 | 4010001015671 | 250 mm | 185 mm | 290 mm | 320 mm | 520 mm | 4,7 |
You can find instruction manuals under the following link: Instruction manuals
