Outlet hatch 45°
Price on request or after logging in
plus shipping charges
- superior roundness
- Schmelzer flanged edge
- calibrated inside
- sendzimir galvanized (vz.) or powder-coated (pb.)
- standard execution

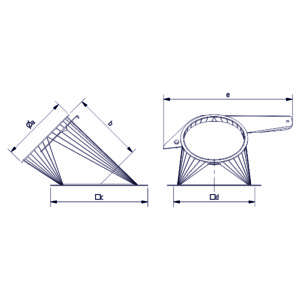

| Type | Articlenumber | Old Articlenumber | a | b | c | d | e | kg |
|---|---|---|---|---|---|---|---|---|
| DN 150 1,5mm | 1001407 | 4010001015666 | 150 mm | 177 mm | 240 mm | 201 mm | 318 mm | 2,0 |
| DN 150 2mm | 1001409 | 4010001015668 | 150 mm | 177 mm | 240 mm | 201 mm | 318 mm | 2,1 |
| DN 200 2mm | 1001411 | 4010001015670 | 200 mm | 264 mm | 350 mm | 320 mm | 432 mm | 4,0 |
| DN 250 2mm | 1001413 | 4010001015672 | 250 mm | 295 mm | 412 mm | 382 mm | 518 mm | 5,0 |
You can find instruction manuals under the following link: Instruction manuals
