Pipe system Helix-air with flange nominal length 1000

Price on request or after logging in

plus shipping charges

  • superior roundness
  • priming coated
  • available from NW 500 – 3mm wall thickness
  • lower quantities are longitudinal welded
  • flanges RII DIN 24154
  • with loose flange connection

SKU: N/A Category:

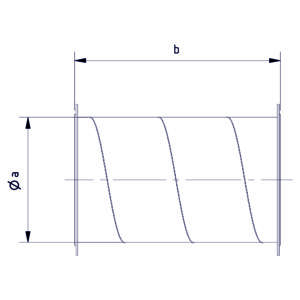

TypeArticlenumberOld Articlenumberabtkg
DN 160 1003034 4006014016060 156 mm 1000 mm 2 mm 10,1
DN 180 1003035 4006014016061 176 mm 1000 mm 2 mm 11,3
DN 200 1003036 4006014016062 196 mm 1000 mm 2 mm 12,5
DN 250 1003037 246 mm 1000 mm 2 mm 15,6
DN 280 1003038 4006014016064 276 mm 1000 mm 2 mm 19,2
DN 315 1003039 4006014016065 311 mm 1000 mm 2 mm 21,5
DN 355 1003040 4006014016066 351 mm 1000 mm 2 mm 24,1
DN 400 1003041 4006014016067 396 mm 1000 mm 2 mm 27,1
DN 450 1003042 4006014016068 446 mm 1000 mm 2 mm 30,4
DN 500 1003043 4006014016069 496 mm 1000 mm 2 mm 33,7
DN 560 1003044 4006014016070 556 mm 1000 mm 2 mm 40,3
DN 630 1003045 4006014016071 626 mm 1000 mm 2 mm 45,2
DN 710 1003046 4006014016072 706 mm 1000 mm 2 mm 50,8
DN 800 1003047 4006014016073 796 mm 1000 mm 2 mm 57,1
DN 900 1003048 4006014016074 896 mm 1000 mm 2 mm 64,1
DN 1000 1003049 4006014016075 996 mm 1000 mm 2 mm 71,1
DN 1120 1003050 4006014016076 1114 mm 1000 mm 3 mm 119,5
DN 1250 1003051 4006014016077 1544 mm 1000 mm 3 mm 133,2
DN 1400 1003052 4006014016078 1394 mm 1000 mm 3 mm 148,9
DN 1600 1003053 4006014016079 1594 mm 1000 mm 3 mm 169,9
DN 1800 1003054 4006014016080 1794 mm 1000 mm 3 mm 190,1
DN 2000 1003055 4006014016081 1994 mm 1000 mm 3 mm 211,9

You can find instruction manuals under the following link: Instruction manuals
