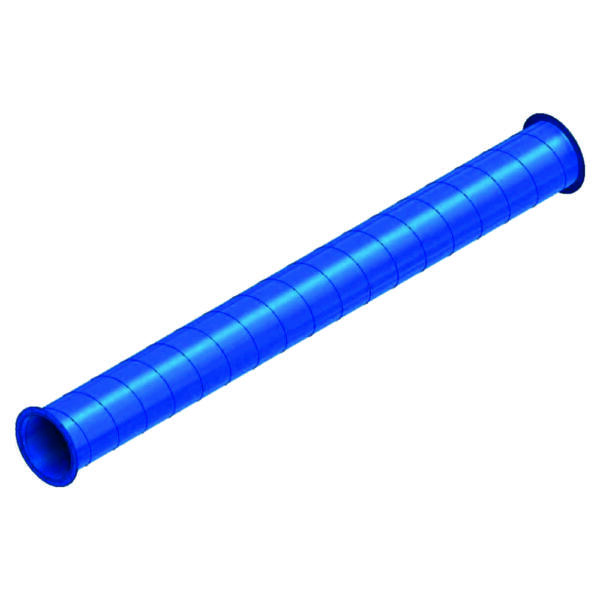

Pipe system Helix-air with flange nominal length 4000
Pipe system Helix-air with flange nominal length 4000 - Image 2

Pipe system Helix-air with flange nominal length 4000

Price on request or after logging in

plus shipping charges; plus VAT

  • superior roundness
  • priming coated
  • available from NW 500 – 3mm wall thickness
  • lower quantities are longitudinal welded
  • flanges RII DIN 24154
  • with loose flange connection

SKU: N/A Category:

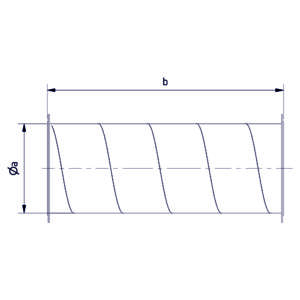

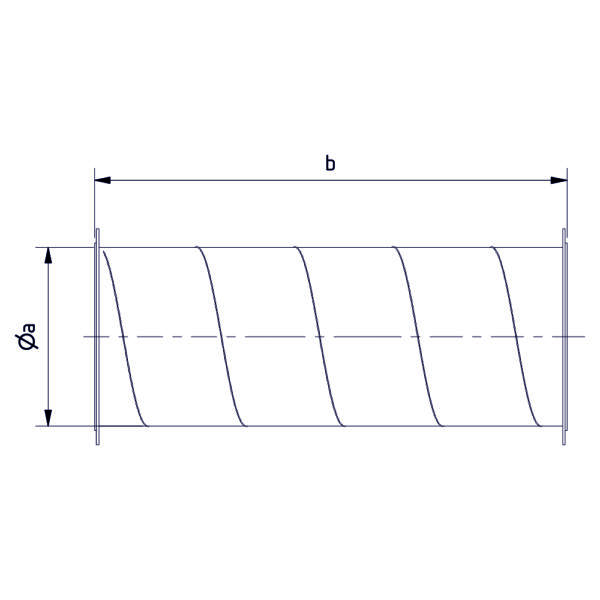

TypeArticlenumberOld Articlenumberabtkg
DN 160 1003078 4006014016104 156 mm 4000 mm 2 mm 34,2
DN 180 1003079 4006014016105 176 mm 4000 mm 2 mm 38,4
DN 200 1003080 4006014016106 196 mm 4000 mm 2 mm 42,7
DN 250 1003081 4006014016107 246 mm 4000 mm 2 mm 53,3
DN 280 1003082 4006014016108 276 mm 4000 mm 2 mm 61,4
DN 315 1003083 4006014016109 311 mm 4000 mm 2 mm 69,0
DN 355 1003084 4006014016110 351 mm 4000 mm 2 mm 77,7
DN 400 1003085 4006014016111 396 mm 4000 mm 2 mm 87,4
DN 450 1003086 4006014016112 446 mm 4000 mm 2 mm 98,3
DN 500 1003087 4006014016113 496 mm 4000 mm 2 mm 109,1
DN 560 1003088 4006014016114 556 mm 4000 mm 2 mm 124,7
DN 630 1003089 4006014016115 626 mm 4000 mm 2 mm 140,2
DN 710 1003090 4006014016116 706 mm 4000 mm 2 mm 157,8
DN 800 1003091 4006014016117 796 mm 4000 mm 2 mm 177,7
DN 900 1003092 4006014016118 896 mm 4000 mm 2 mm 199,8
DN 1000 1003093 4006014016119 996 mm 4000 mm 2 mm 221,9
DN 1120 1003094 4006014016120 1114 mm 4000 mm 3 mm 372,8
DN 1250 1003095 4006014016121 1544 mm 4000 mm 3 mm 415,9
DN 1400 1003096 4006014016122 1394 mm 4000 mm 3 mm 465,6
DN 1600 1003097 4006014016123 1594 mm 4000 mm 3 mm 531,8
DN 1800 1003098 4006014016124 1794 mm 4000 mm 3 mm 598,1
DN 2000 1003099 4006014016125 1994 mm 4000 mm 3 mm 664,3

You can find instruction manuals under the following link: Instruction manuals
