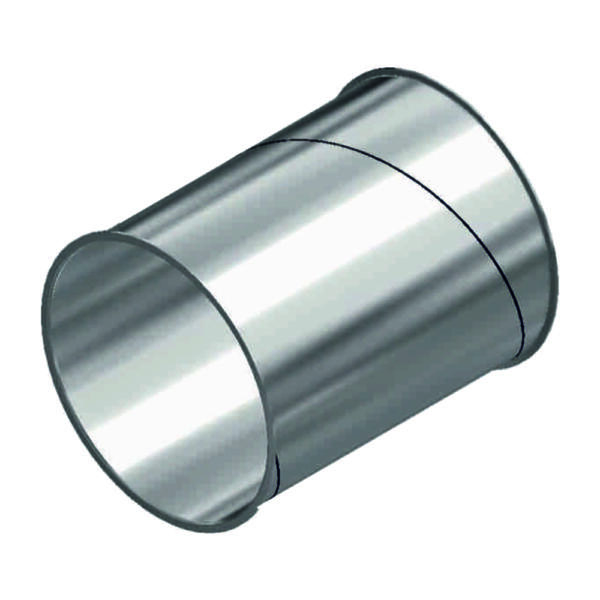

Pipe system Helix nominal length 250

Price on request or after logging in

plus shipping charges

  • flanged edge (B) or welded flange RII DIN 24154 (F)
  • hot-dip galvanized
  • superior roundness
  • no deformation due to longitudinal and cross seams
  • mild steel (DD11) or wear-resistant steel (S355MC)

SKU: N/A Category:

TypeArticlenumberOld Articlenumberabtkg
DN 160 2mm DD11 (F) 1003144 4006014016170 156 mm 238 mm 2 mm 2,0
DN 160 2mm S355MC (F) 1003151 4006014016177 156 mm 238 mm 2 mm 2,0
DN 160 2mm DD11 (B) 1003286 4006014015932 156 mm 238 mm 2 mm 2,0
DN 160 2mm S355MC (B) 1003293 4006014015939 156 mm 238 mm 2 mm 2,0
DN 175 2mm DD11 (F) 1003145 4006014016171 174 mm 238 mm 2 mm 2,2
DN 175 2mm S355MC (F) 1003152 4006014016178 174 mm 238 mm 2 mm 2,2
DN 175 2mm DD11 (B) 1003287 4006014015933 174 mm 238 mm 2 mm 2,2
DN 175 2mm S355MC (B) 1003294 4006014015940 174 mm 238 mm 2 mm 2,2
DN 200 2mm DD11 (F) 1003146 4006014016172 196 mm 238 mm 2 mm 2,5
DN 200 2mm S355MC (F) 1003153 4006014016179 196 mm ^238 mm 2 mm 2,5
DN 200 2mm DD11 (B) 1003288 4006014015934 196 mm 238 mm 2 mm 2,5
DN 200 2mm S355MC (B) 1003295 4006014015941 196 mm 238 mm 2 mm 2,5
DN 250 2mm DD11 (F) 1003147 4006014016173 246 mm 238 mm 2 mm 3,2
DN 250 2mm S355MC (F) 1003154 4006014016180 246 mm 238 mm 2 mm 3,2
DN 250 2mm DD11 (B) 1003289 4006014015935 246 mm 238 mm 2 mm 3,2
DN 250 2mm S355MC (B) 1003296 4006014015942 246 mm 238 mm 2 mm 3,2
DN 300 2mm DD11 (F) 1003148 4006014016174 301 mm 238 mm 2 mm 3,8
DN 300 2mm S355MC (F) 1003155 4006014016181 301 mm 238 mm 2 mm 3,8
DN 300 2mm DD11 (B) 1003290 4006014015936 301 mm 238 mm 2 mm 3,8
DN 300 2mm S355MC (B) 1003297 4006014015943 301 mm 238 mm 2 mm 3,8
DN 350 2mm DD11 (F) 1003149 4006014016175 351 mm 238 mm 2 mm 4,4
DN 350 2mm S355MC (F) 1003156 4006014016182 351 mm 238 mm 2 mm 4,4
DN 350 2mm DD11 (B) 1003291 4006014015937 351 mm 238 mm 2 mm 4,4
DN 350 2mm S355MC (B) 1003298 4006014015944 351 mm 238 mm 2 mm 4,4
DN 400 2mm DD11 (F) 1003150 4006014016176 396 mm 238 mm 2 mm 5,0
DN 400 2mm S355MC (F) 1003157 4006014016183 396 mm 238 mm 2 mm 5,0
DN 400 2mm DD11 (B) 1003292 4006014015938 396 mm 238 mm 2 mm 5,0
DN 400 2mm S355MC (B) 1003299 4006014015945 396 mm 238 mm 2 mm 5,0

You can find instruction manuals under the following link: Instruction manuals
