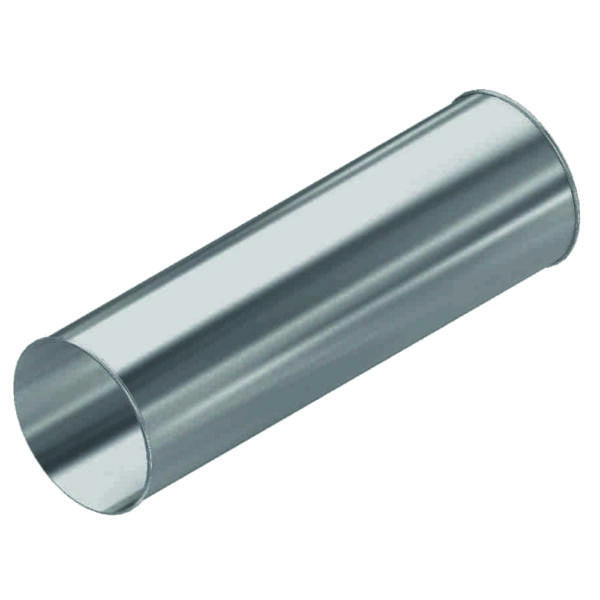

Pipe with beaded flange nominal length 1000
Price on request or after logging in
plus shipping charges
- superior roundness
- beaded flange connection
- sendzimir galvanized
- horizontal folded

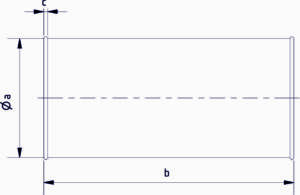

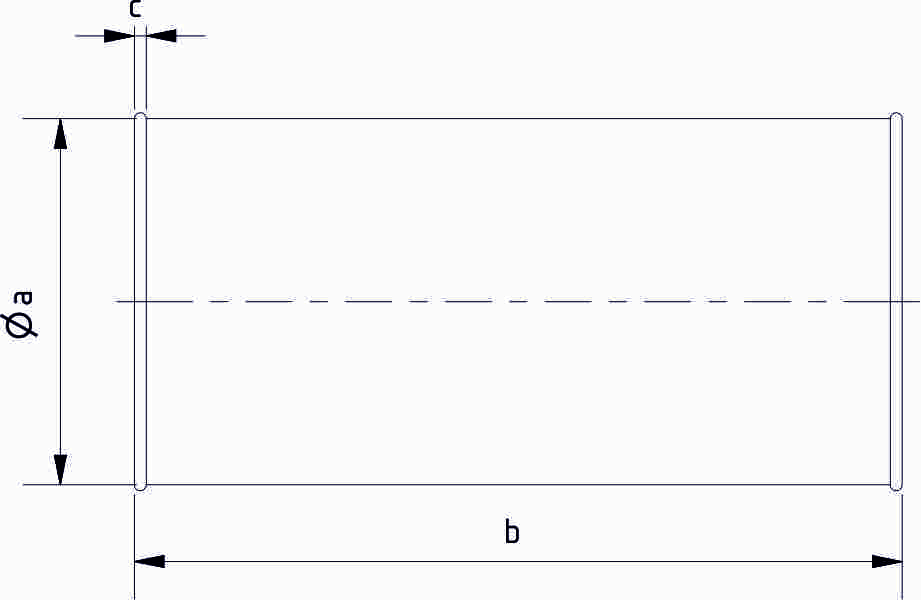

Type | Articlenumber | a | b | c | t |
---|---|---|---|---|---|
DN 200 | 4002014015843 | 200 mm | 960 mm | 8 mm | 0,88 mm |
DN 225 | 4002014015796 | 225 mm | 960 mm | 8 mm | 0,88 mm |
DN 250 | 4002014015859 | 250 mm | 960 mm | 8 mm | 0,88 mm |
DN 300 2mm* | 4002014015907 | 300 mm | 950 mm | 10 mm | 0,88 mm |
DN 310 | 4002014015866 | 310 mm | 950 mm | 10 mm | 0,88 mm |
DN 350 | 4002014015687 | 350 mm | 950 mm | 10 mm | 0,88 mm |
DN 380 | 4002014015873 | 380 mm | 950 mm | 10 mm | 0,88 mm |
DN 450 | 4002014015881 | 450 mm | 950 mm | 10 mm | 1,00 mm |
DN 500 | 4002014015890 | 500 mm | 950 mm | 10 mm | 0,88 mm |
DN 630 | 4002014015893 | 630 mm | 950 mm | 10 mm | 0,88 mm |
You can find instruction manuals under the following link: Instruction manuals
