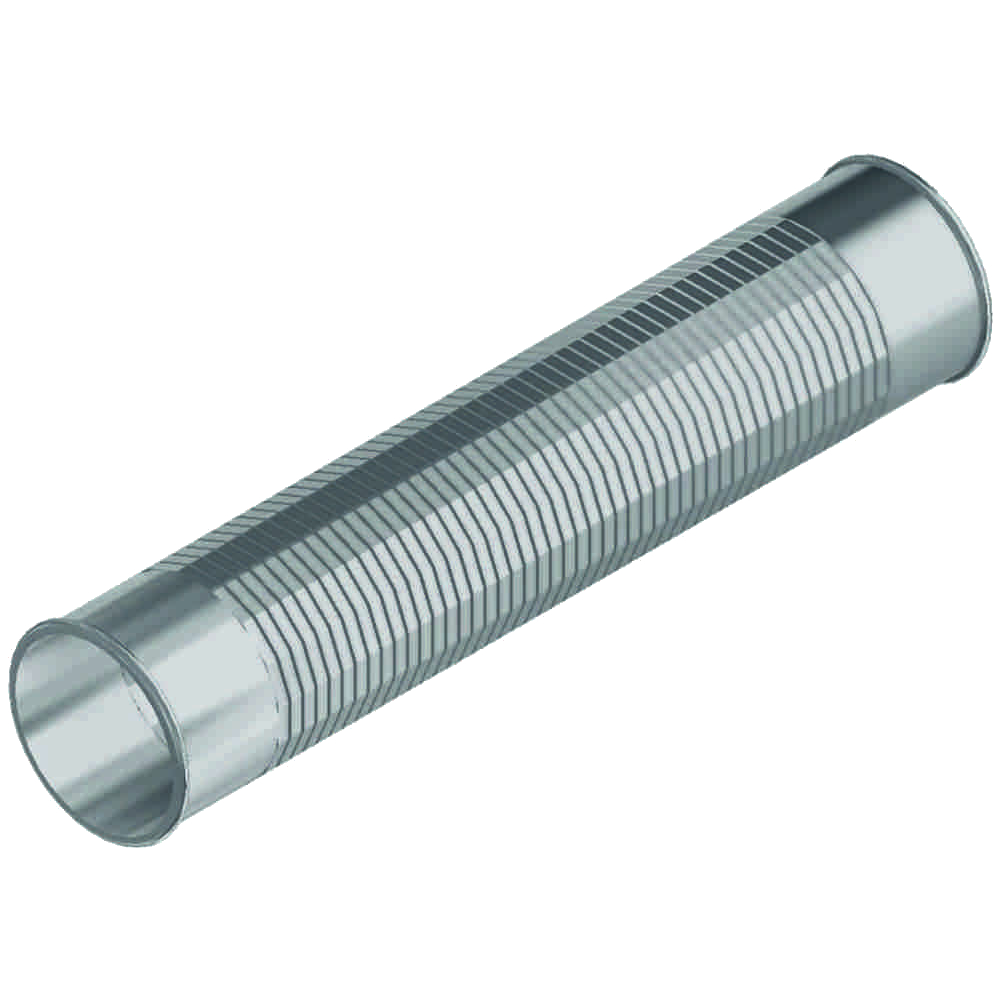

Flexible tube with beaded flange
Price on request or after logging in
plus shipping charges
- superior roundness
- beaded flange connection
- sendzimir galvanized
- flexible

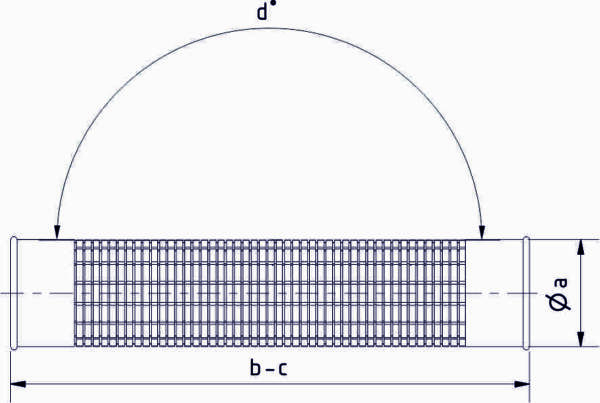

Type | Articlenumber | Old Articlenumber | a | b | c | d |
---|---|---|---|---|---|---|
DN 250 45° | 1003566 | 4002019015667 | 250 mm | 1200 mm | 1600 mm | 45° |
DN 310 45° | 1003568 | 4002019015669 | 310 mm | 1200 mm | 1600 mm | 45° |
DN 380 45° | 1003570 | 4002019015671 | 380 mm | 1200 mm | 1600 mm | 45° |
DN 250 90° | 1003567 | 4002019015668 | 250 mm | 1200 mm | 1600 mm | 90° |
DN 310 90° | 1003569 | 4002019015670 | 310 mm | 1200 mm | 1600 mm | 90° |
DN 380 90° | 1003571 | 4002019015672 | 380 mm | 1200 mm | 1600 mm | 90° |
You can find instruction manuals under the following link: Instruction manuals
