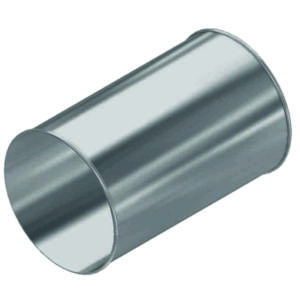

Pipe with beaded flange nominal length 2000
Price on request or after logging in
plus shipping charges
- superior roundness
- beaded flange connection
- sendzimir galvanized
- horizontal folded

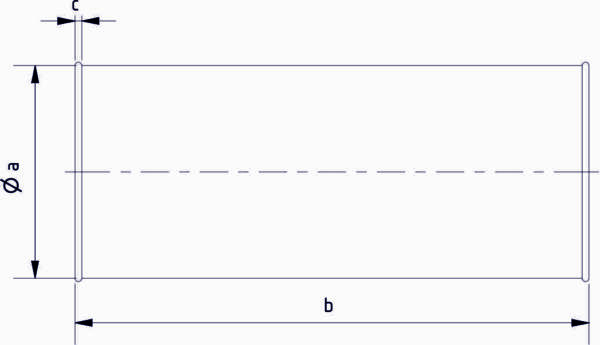

Type | Articlenumber | Old Articlenumber | a | b | c | t |
---|---|---|---|---|---|---|
DN 200 | 1003850 | 4002014015844 | 200 mm | 1960 mm | 8 mm | 0,88 mm |
DN 225 | 1003843 | 4002014015795 | 225 mm | 1960 mm | 8 mm | 0,88 mm |
DN 250 | 1003857 | 4002014015860 | 250 mm | 1960 mm | 8 mm | 0,88 mm |
DN 300 | 1003890 | 4002014015908 | 300 mm | 1950 mm | 10 mm | 0,88 mm |
DN 310 | 1003863 | 4002014015867 | 310 mm | 1950 mm | 10 mm | 0,88 mm |
DN 350 | 1003837 | 4002014015688 | 350 mm | 1950 mm | 10 mm | 0,88 mm |
DN 380 | 1003869 | 4002014015874 | 380 mm | 1950 mm | 10 mm | 0,88 mm |
DN 450 | 1003875 | 4002014015882 | 450 mm | 1950 mm | 10 mm | 0,80 mm |
DN 500 | 1003879 | 4002014015891 | 500 mm | 1935 mm | 10 mm | 0,88 mm |
DN 630 | 1003882 | 4002014015894 | 630 mm | 1935 mm | 10 mm | 0,88 mm |
You can find instruction manuals under the following link: Instruction manuals
