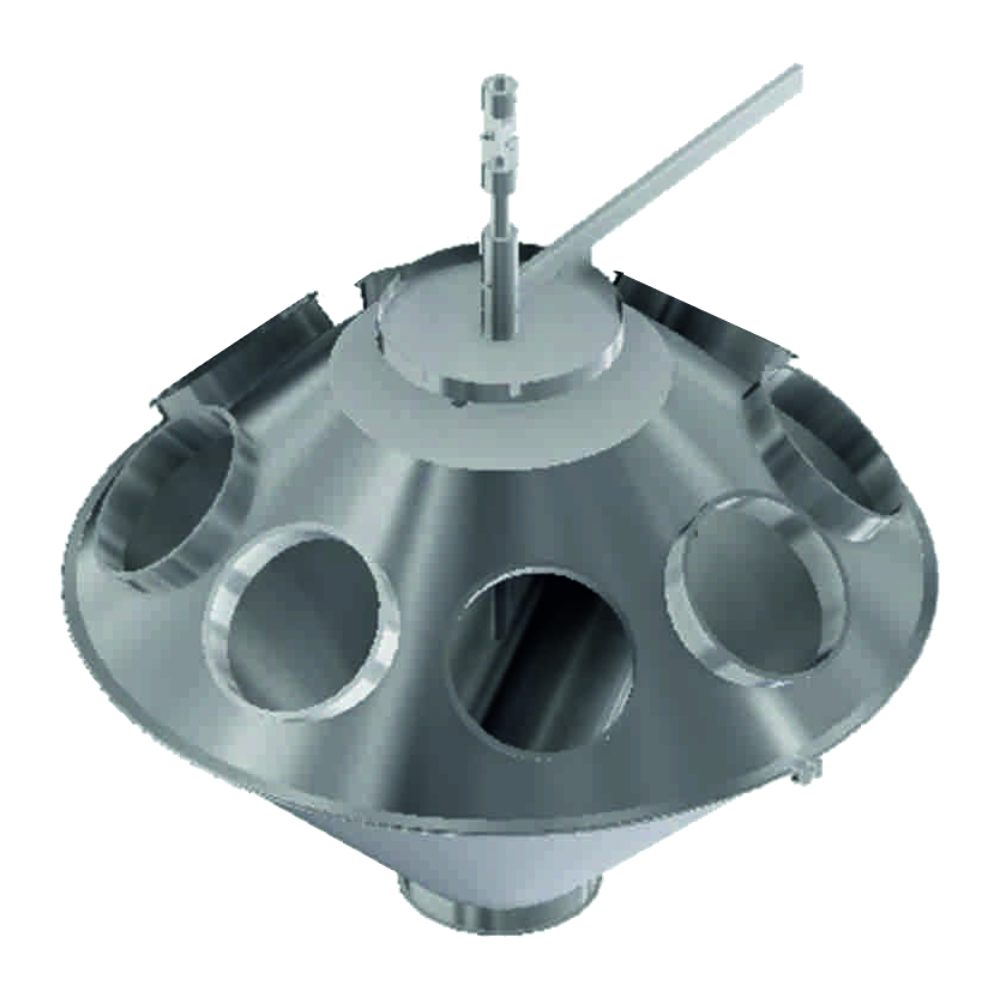

Rotary distributor eight-fold
Price on request or after logging in
plus shipping charges; plus VAT
- galvanized
- manually operated

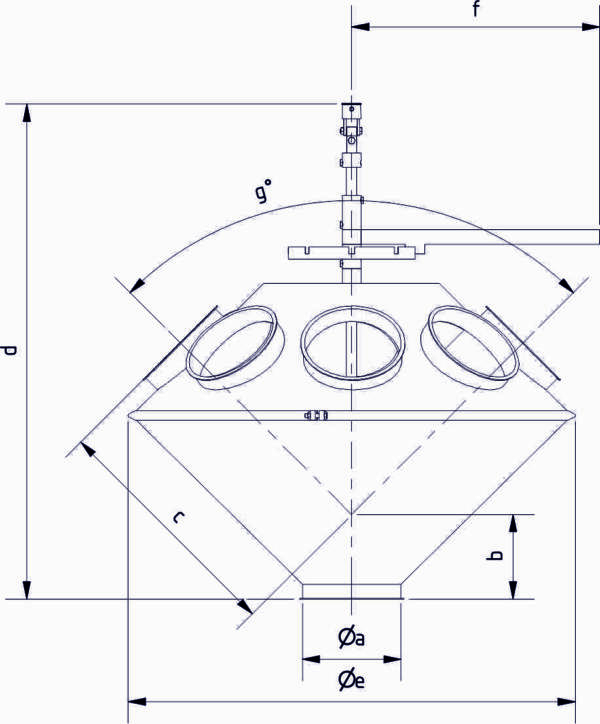

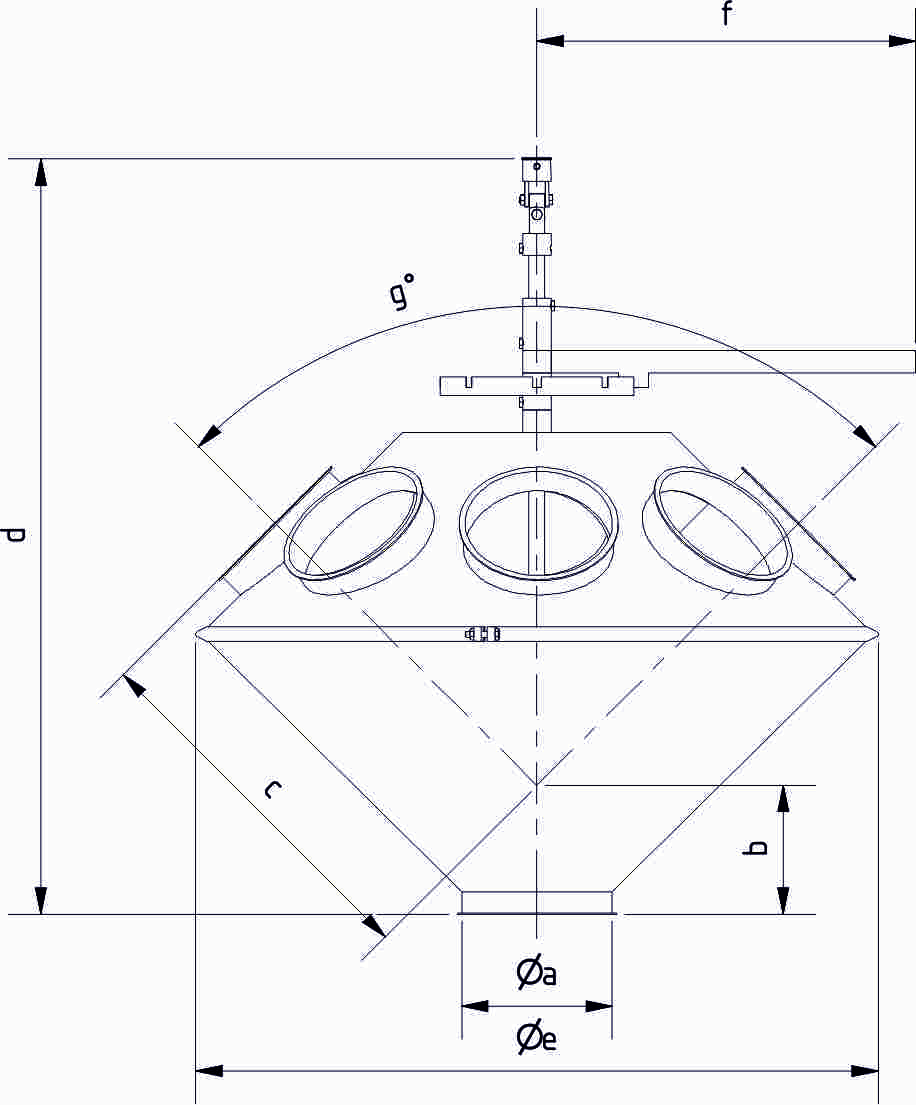

| Type | Articlenumber | Old Articlenumber | a | b | c | d | e | f | g | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| DN 150 2mm vz. | 1000818 | 4010025015673 | 149 mm | 160 mm | 340 mm | 920 mm | 688 mm | 509 mm | 90° | 25 |
| DN 200 2mm vz. | 1000822 | 4010025015677 | 199 mm | 152 mm | 495 mm | 990 mm | 918 mm | 509 mm | 90° | 41 |
| DN 250 2mm vz. | 1000827 | 4010025015691 | 249 mm | 210 mm | 615 mm | 1180 mm | 1148 mm | 509 mm | 90° | 62 |
You can find instruction manuals under the following link: Instruction manuals
