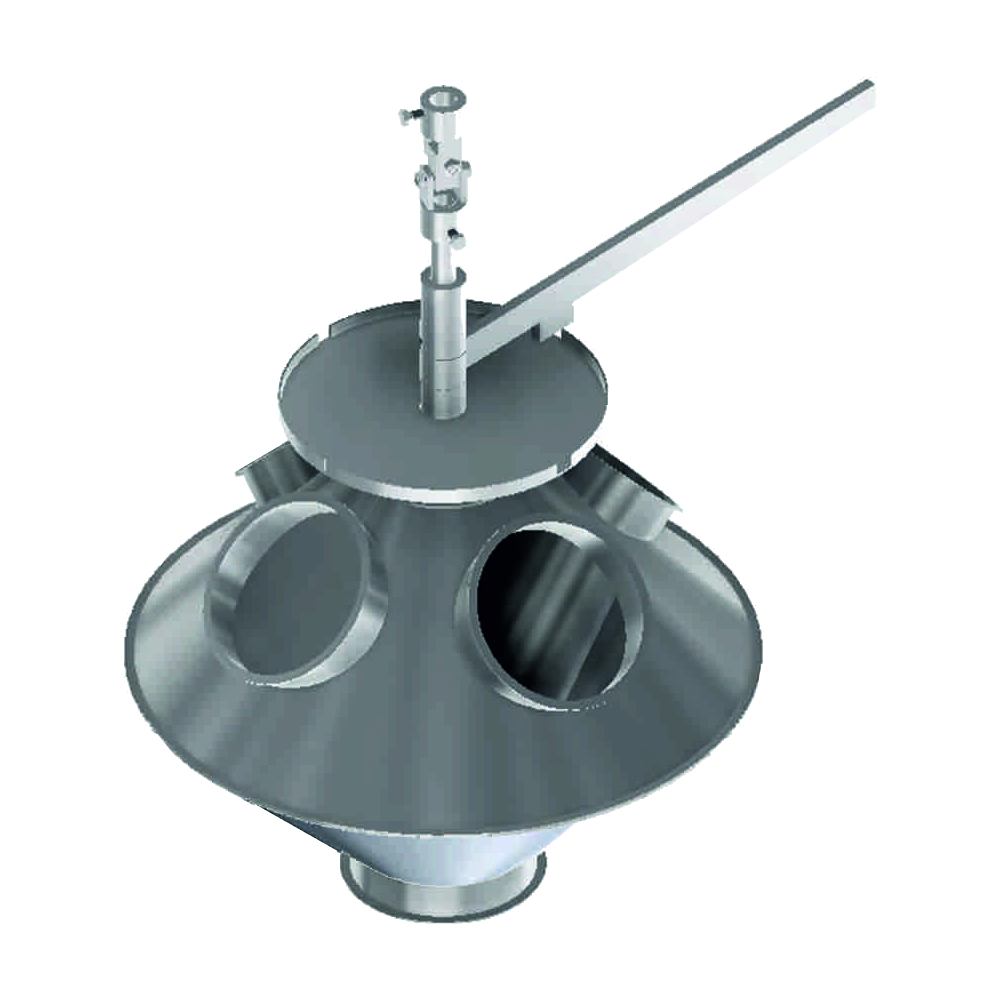

Rotary distributor four-fold
Price on request or after logging in
plus shipping charges; plus VAT
- galvanized
- manually operated
| Type | Articlenumber | Old Articlenumber | a | b | c | d | e | f | g | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| DN 150 2mm vz. | 1000816 | 4010025015671 | 149 mm | 180 mm | 230 mm | 770 mm | 570 mm | 509 mm | 90° | 19 |
| DN 200 2mm vz. | 1000820 | 4010025015675 | 199 mm | 172 mm | 315 mm | 823 mm | 702 mm | 509 mm | 90° | 25 |
| DN 250 2mm vz. | 1000825 | 4010025015689 | 249 mm | 220 mm | 370 mm | 950 mm | 817 mm | 509 mm | 90° | 35 |
You can find instruction manuals under the following link: Instruction manuals
