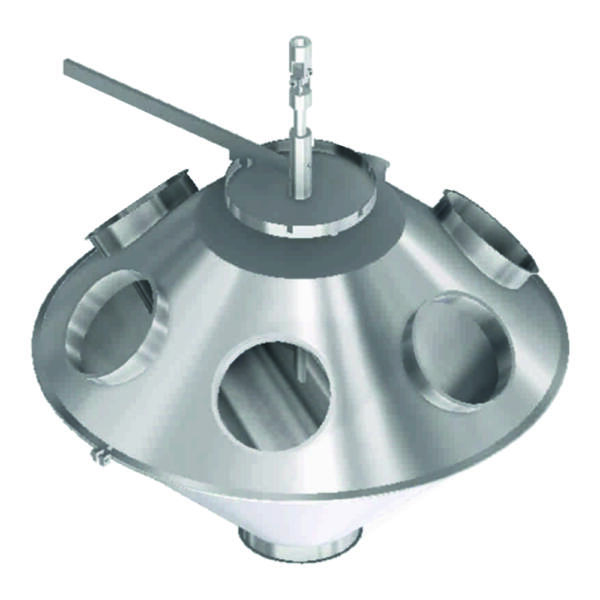

Rotary distributor six-fold

Price on request or after logging in

plus shipping charges

  • galvanized
  • manually operated

SKU: N/A Category:

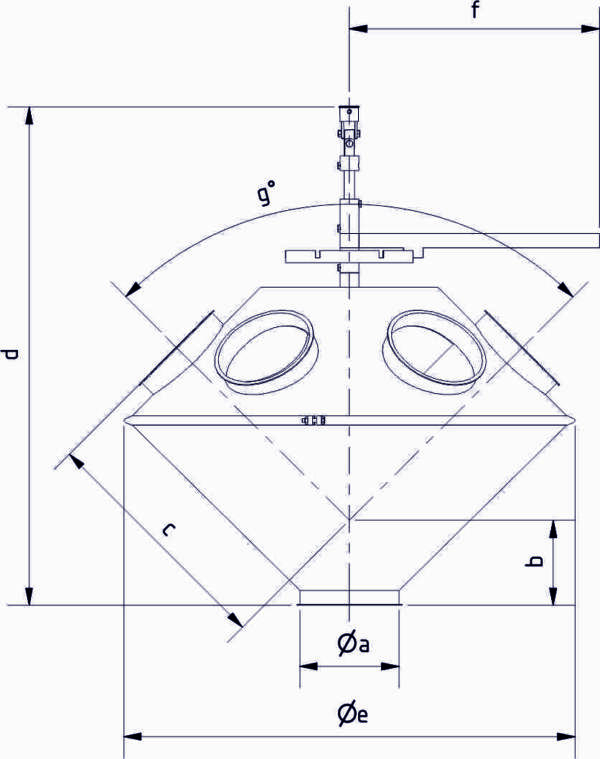

TypeArticlenumberOld Articlenumberabcdefgkg
DN 150 2mm vz. 1000817 4010025015672 149 mm 848 mm 400 mm 575 mm 818 mm 520 mm 90° 17,5
DN 200 2mm vz. 1000821 4010025015676 199 mm 948 mm 526 mm 701 mm 918 mm 520 mm 90° 31,0
DN 250 2mm vz. 1000826 4010025015690 249 mm 1102 mm 643 mm 818 mm 1072 mm 520 mm 90° 44,5

You can find instruction manuals under the following link: Instruction manuals
