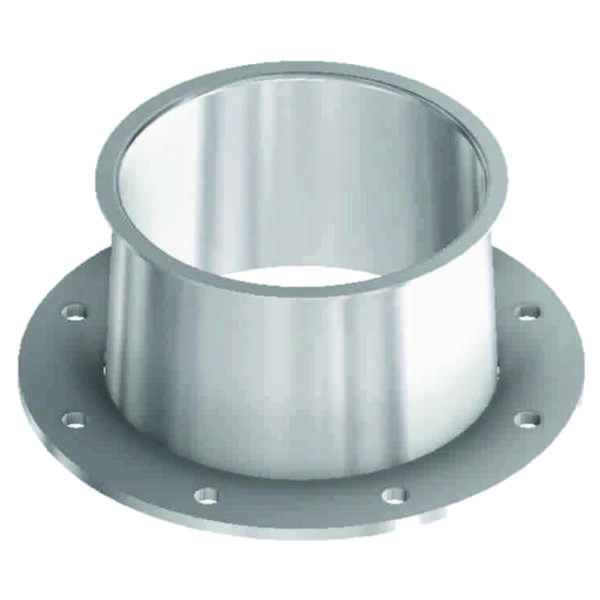

Transitions board-flange

Price on request or after logging in

plus shipping charges

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • sendzimir galvanized (vz.) or powder-coated (pb.)

SKU: N/A Category:

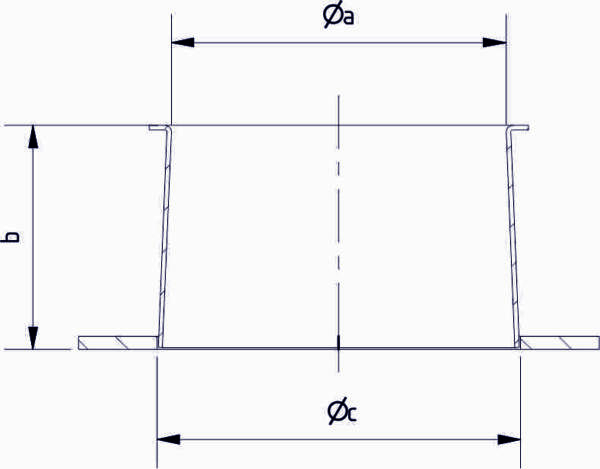

TypeArticlenumberOld Articlenumberabckg
DN 100 2mm vz. 1001011 4010023015763 99 mm 100 mm DN 100 DIN 24154 RII mm
DN 120 2mm vz. 1001012 4010023015764 119 mm 100 mm DN 125 DIN 24154 RII mm 1,0
DN 150 2mm vz. 1001013 4010023015765 149 mm 100 mm DN 160 DIN 24154 RII mm 1,4
DN 175 2mm vz. 1001014 4010023015766 174 mm 100 mm DN 180 DIN 24154 RII mm 1,6
DN 200 2mm vz. 1001015 4010023015767 199 mm 100 mm DN 200 DIN 24154 RII mm 1,9
DN 250 2mm vz. 1001016 4010023015768 249 mm 100 mm DN250 DIN 24154 RII mm 2,8
DN 300 2mm vz. 1001017 4010023015769 299 mm 100 mm DN315 DIN 24154 RII mm 3,4
350 2mm vz. 1001018 4010023015770 349 mm 100 mm DN355 DIN 24154 RII mm
DN 400 2mm vz. 1001019 4010023015771 399 mm 100 mm DN400 DIN 24154 RII mm 5,5

You can find instruction manuals under the following link: Instruction manuals
