Convex segment 5° 1,5 D (APS; Super APS; Super APS food)
Convex segment 5° 1,5 D (APS; Super APS; Super APS food) - Image 2

Convex segment 5° 1,5 D (APS; Super APS; Super APS food)

Price on request or after logging in

plus shipping charges; plus VAT

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized
  • longer service life
  • light assembly weight
  • exchangeable lining
SKU: N/A Category:

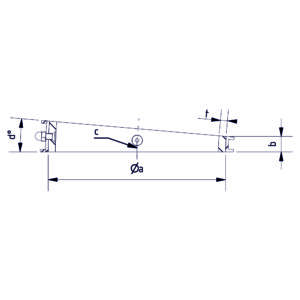

TypeArticlenumberOld Articlenumberabcdtkg
DN 200 2mm APS 4000034 4018015015664 199 mm 17 mm 298,5 mm 5° 8 mm 0,8
DN 250 2mm APS 4000038 4018015015668 249 mm 21 mm 373,5 mm 5° 10 mm 0,9
DN 300 2mm APS 4000042 4018015015676 299 mm 29 mm 448,5 mm 5° 10 mm 1,0
DN 200 2mm Super APS 4000054 4018015015688 199 mm 17 mm 298,5 mm 5° 6 mm 0,8
DN 250 2mm Super APS 4000055 4018015015689 249 mm 21 mm 373,5 mm 5° 6 mm
DN 300 2mm Super APS 4000056 4018015015690 299 mm 29 mm 448,5 mm 5° 6 mm 1,0
DN 200 2mm Super APS food 4000057 4018015015691 199 mm 17 mm 298,5 mm 5° 6 mm 0,8
DN 250 2mm Super APS food 4000058 4018015015692 249 mm 21 mm 373,5 mm 5° 6 mm 0,9
DN 300 2mm Super APS food 4000059 4018015015693 299 mm 29 mm 448,5 mm 5° 6 mm 1,0

You can find instruction manuals under the following link: Instruction manuals
