Convex segment 45° 1,5 D (APS; Super APS; Super APS food)
Convex segment 45° 1,5 D (APS; Super APS; Super APS food) - Image 2

Convex segment 45° 1,5 D (APS; Super APS; Super APS food)

Price on request or after logging in

plus shipping charges; plus VAT

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized
  • longer service life
  • light assembly weight
  • exchangeable lining
  • * 3mm material thickness

SKU: N/A Category:

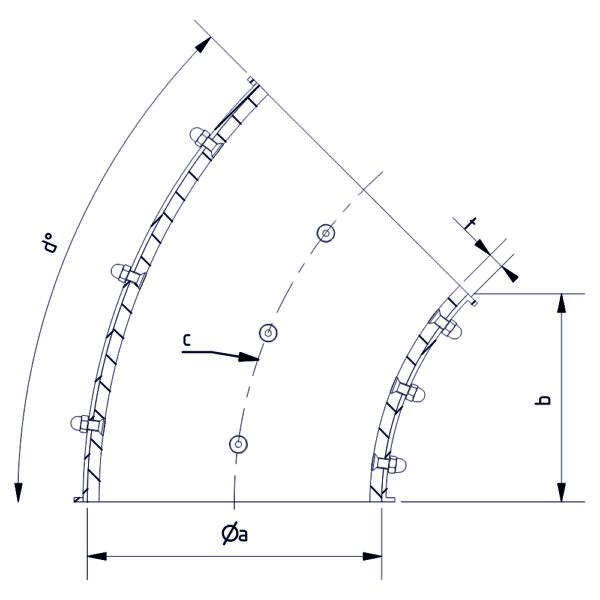

TypeArticlenumberOld Articlenumberabcdtkg
DN 200 2mm APS 4000037 4018015015667 199 mm 134 mm 298,5 mm 45° 8 mm 4,9
DN 250 2mm APS 4000041 4018015015671 249 mm 170 mm 373,5 mm 45° 10 mm 8,3
DN 300 3mm APS 4000045 4018015015679 299 mm 209 mm 448,5 mm 45° 10 mm
DN 200 3mm Super APS 4000072 4018015015706 199 mm 134 mm 298,5 mm 45° 6 mm
DN 250 2mm Super APS 4000073 4018015015707 249 mm 170 mm 373,5 mm 45° 6 mm
DN 300 3mm Super APS 4000074 4018015015708 299 mm 209 mm 448,5 mm 45° 6 mm
DN 200 3mm Super APS food 4000075 4018015015709 199 mm 134 mm 298,5 mm 45° 6 mm
DN 250 3mm Super APS food 4000076 4018015015710 249 mm 170 mm 373,5 mm 45° 6 mm
DN 300 3mm Super APS food 4000077 4018015015711 299 mm 209 mm 448,5 mm 45° 6 mm

You can find instruction manuals under the following link: Instruction manuals
