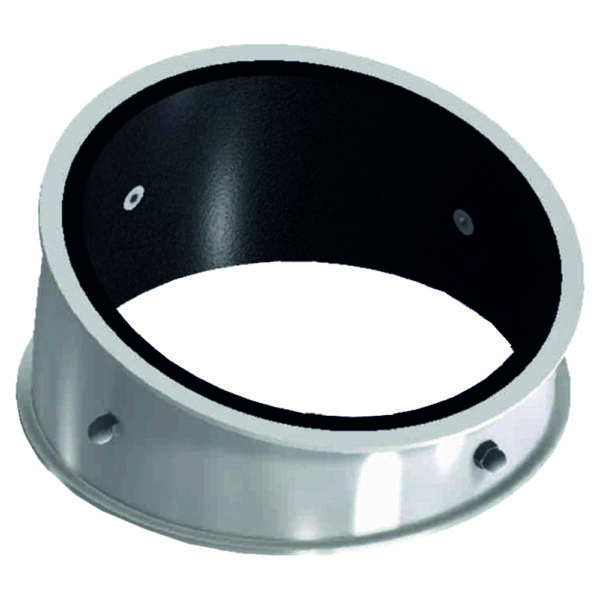

Convex segment 15° 1,5 D

Price on request or after logging in

  •  superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized
  • longer service life
  • light assembly weight
  • exchangeable lining

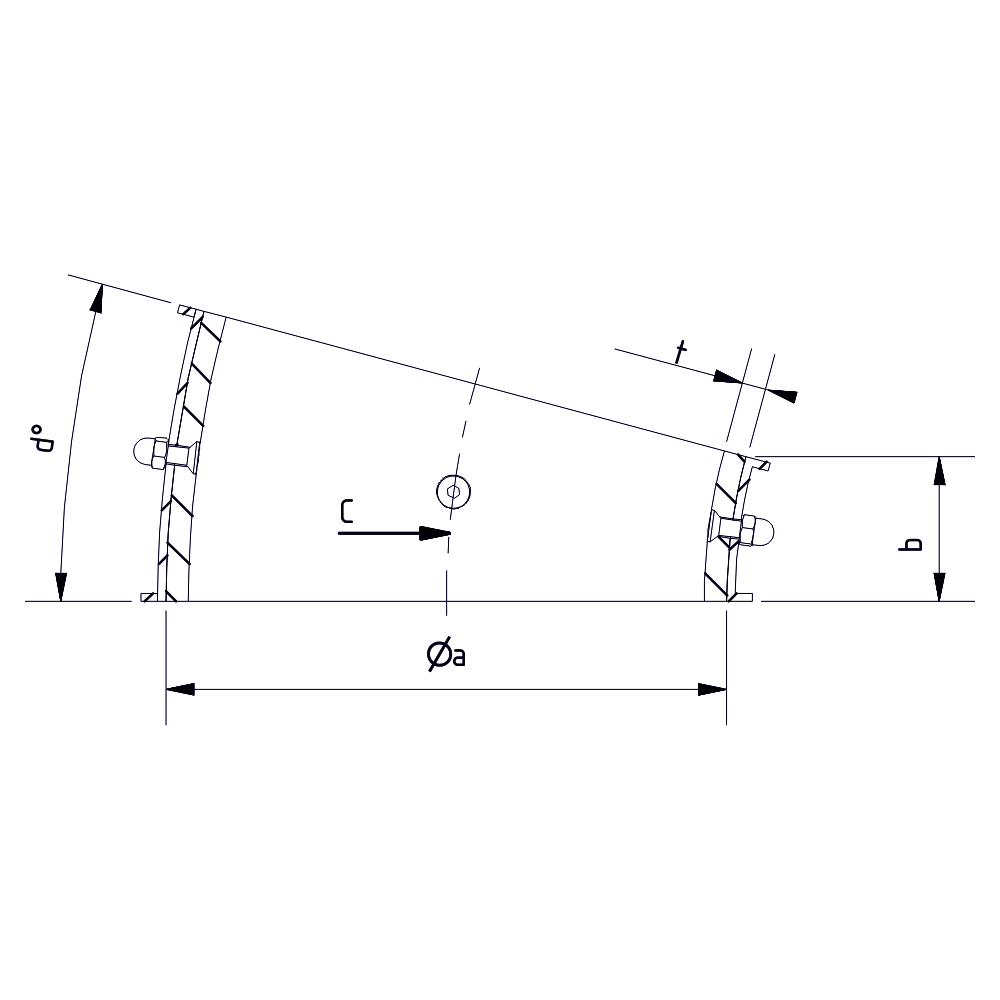

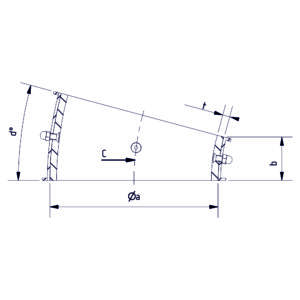

TypeArticlenumberOld Articlenumberabcdtkg
DN 200 2mm APS 4000035 4018015015665 199 mm 49 mm 298,5 mm 15° 8 mm 2,0
DN 250 2mm APS 4000039 4018015015669 249 mm 62 mm 373,5 mm 15° 10 mm 2,8
DN 300 2mm APS 4000043 4018015015677 299 mm 79 mm 448,5 mm 15° 10 mm 3,7
DN 200 2mm Super APS 4000060 4018015015694 199 mm 49 mm 298,5 mm 15° 6 mm
DN 250 2mm Super APS 4000061 4018015015695 249 mm 62 mm 373,5 mm 15° 6 mm
DN 300 2mm Super APS 4000062 4018015015696 299 mm 79 mm 448,5 mm 15° 6 mm
DN 200 2mm Super APS food 4000063 4018015015697 199 mm 49 mm 298,5 mm 15° 6 mm
DN 250 2mm Super APS food 4000064 4018015015698 249 mm 62 mm 373,5 mm 15° 6 mm
DN 300 2mm Super APS food 4000065 4018015015699 299 mm 79 mm 448,5 mm 15° 6 mm

You can find instruction manuals under the following link: Instruction manuals
