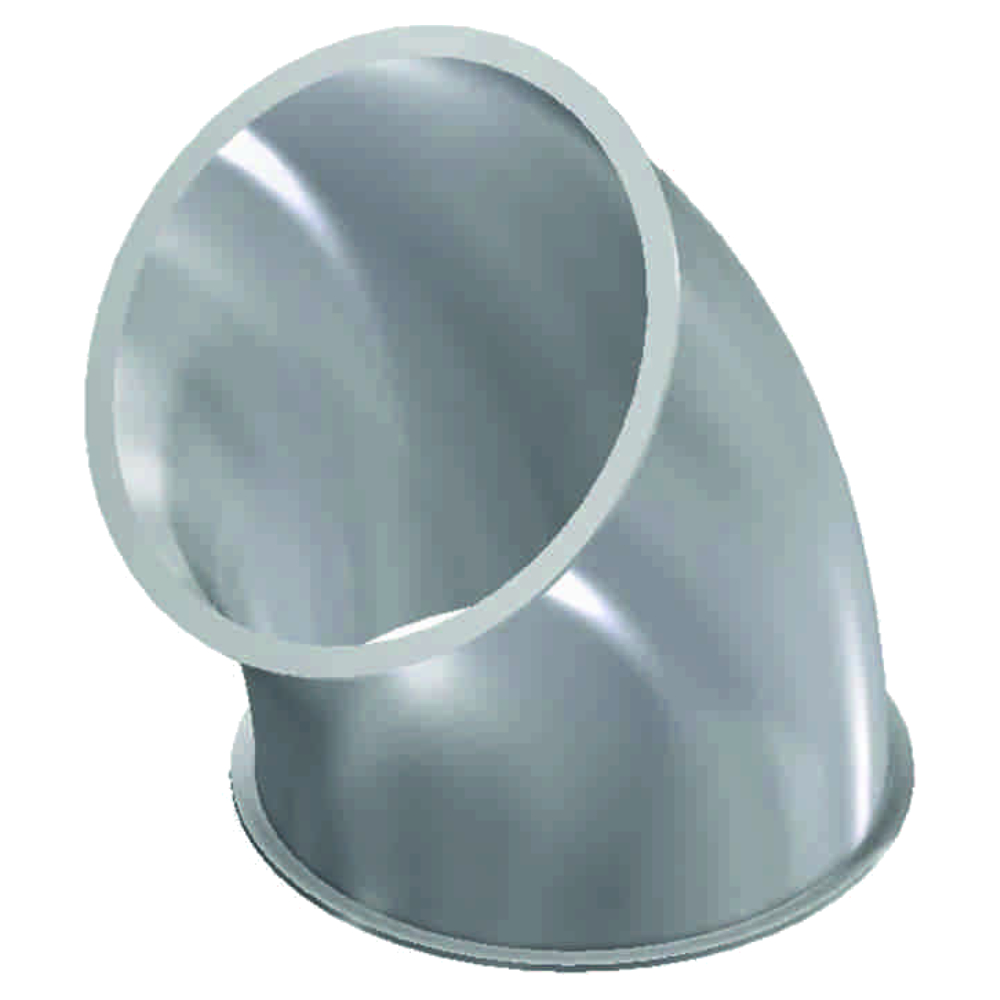

Convex segments 45°
Convex segments 45° - Image 2
Convex segments 45° - Image 3

Convex segments 45°

Price on request or after logging in

plus shipping charges; plus VAT

  • pulled inside the tool
  • hot-dip galvanized (vz.) or powder-coated (pb.)

SKU: N/A Category:

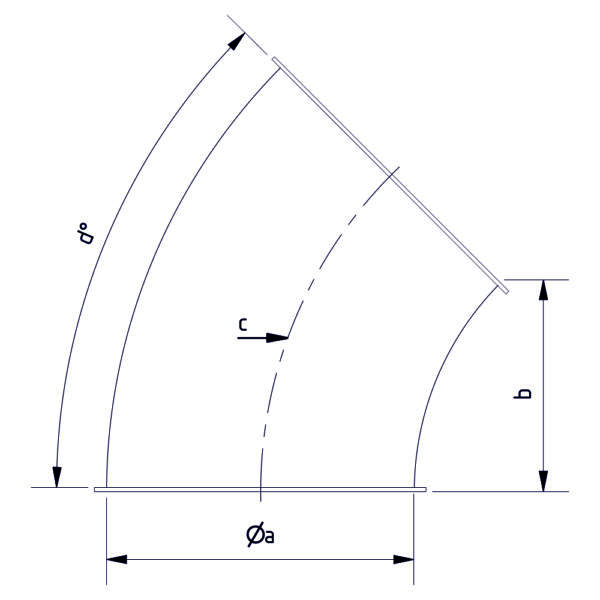

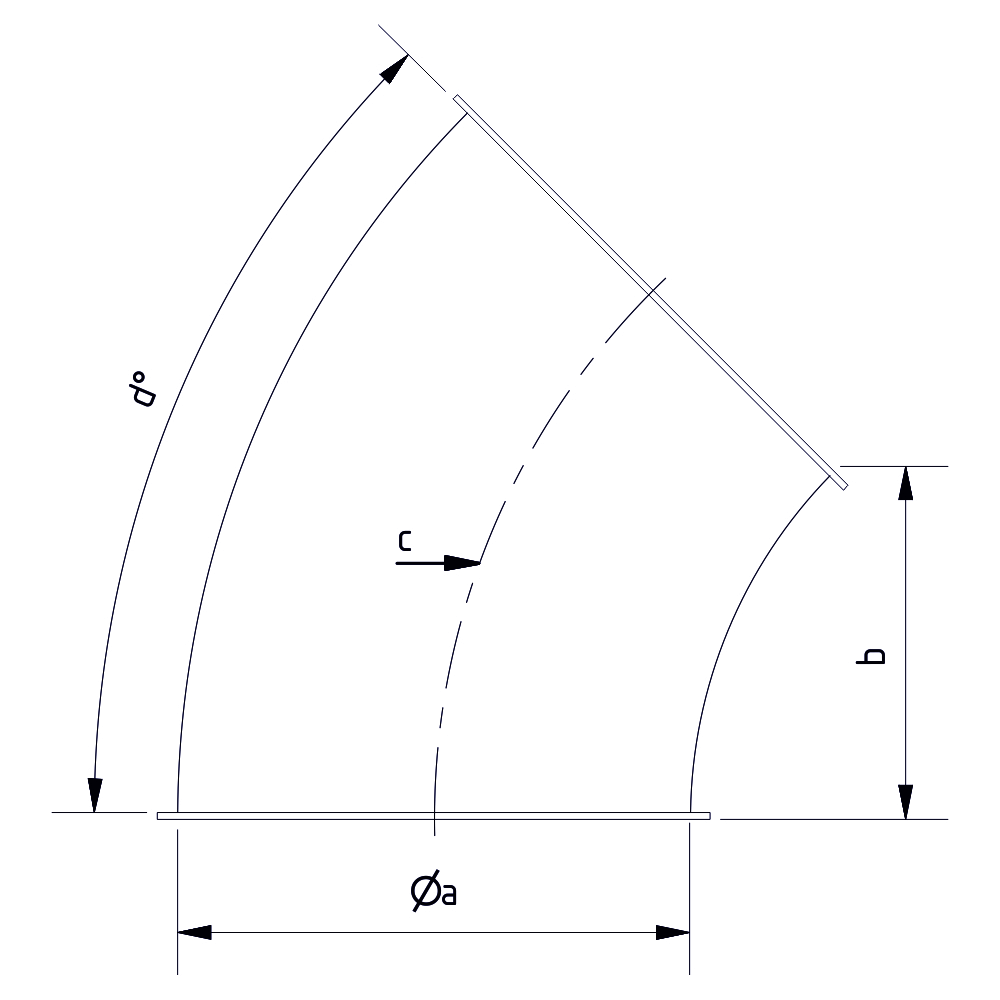

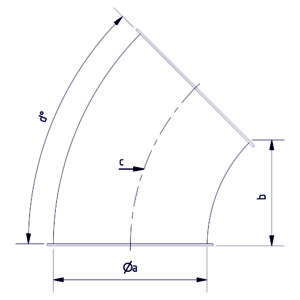

TypeArticlenumberOld Articlenumberabcdkg
DN 150 2mm vz. 1001127 4010015015728 149 mm 40 mm 150 mm 45° 0,9
DN 200 2mm vz. 1001131 4010015015733 199 mm 60 mm 195 mm 45° 1,6
DN 250 2mm vz. 1001135 4010015015738 249 mm 45 mm 195 mm 45° 1,9
DN 300 2mm vz. 1001139 4010015015745 299 mm 30 mm 205 mm 45° 2,5
DN 200 3mm vz. 1001117 4010015015717 199 mm 60 mm 195 mm 45° 2,3
DN 250 3mm vz. 1001113 4010015015712 249 mm 45 mm 195 mm 45° 2,9
DN 300 3mm vz. 1001123 4010015015723 299 mm 30 mm 205 mm 45° 3,7

You can find instruction manuals under the following link: Instruction manuals

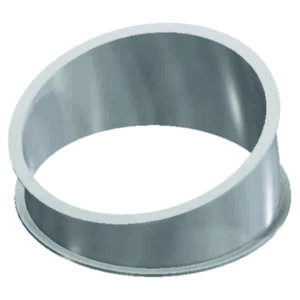

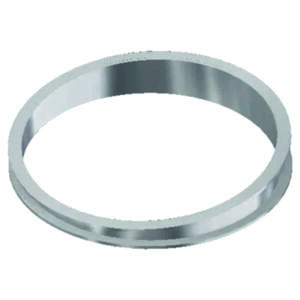

Related products
