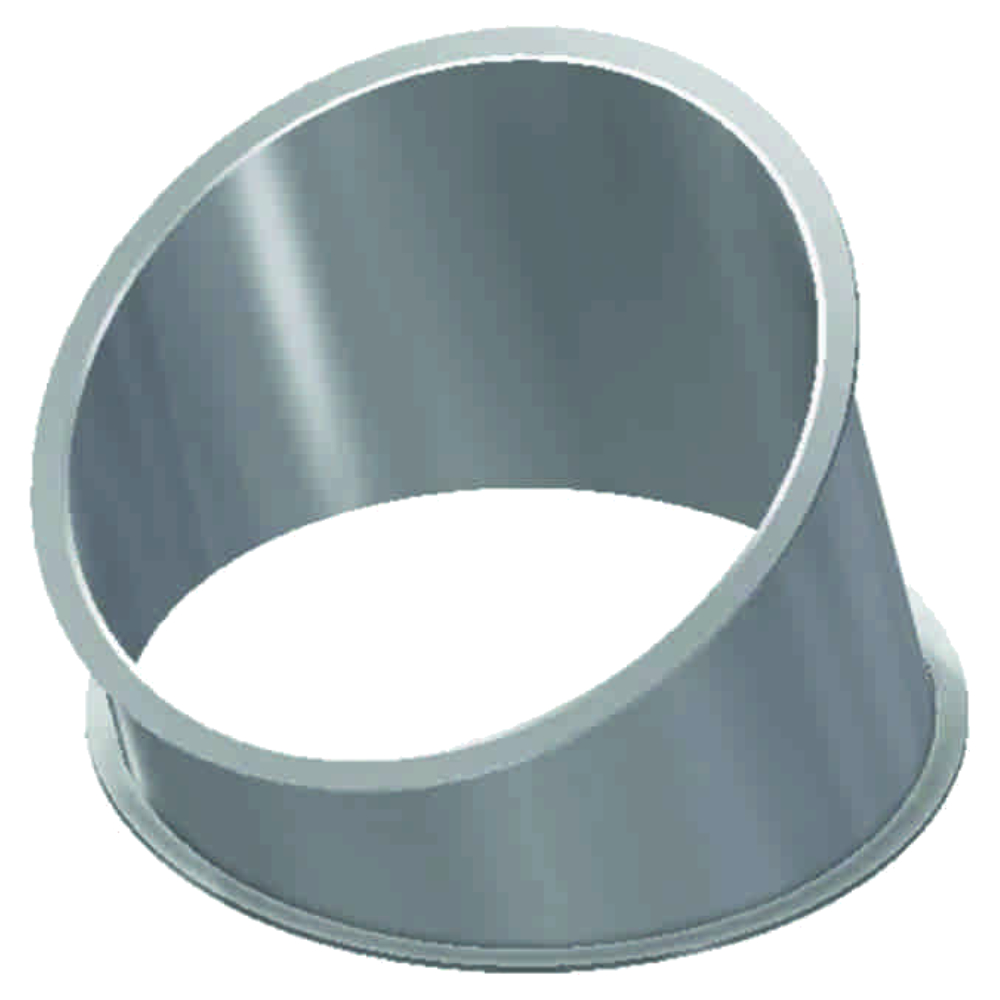

Straight segments 30°

Price on request or after logging in

  • superior roundness
  • Schmelzer flanged edge
  • calibrated inside
  • hot-dip galvanized (vz.) or powder-coated (pb.)
  • one-part or two-part (*)

SKU: N/A Category:

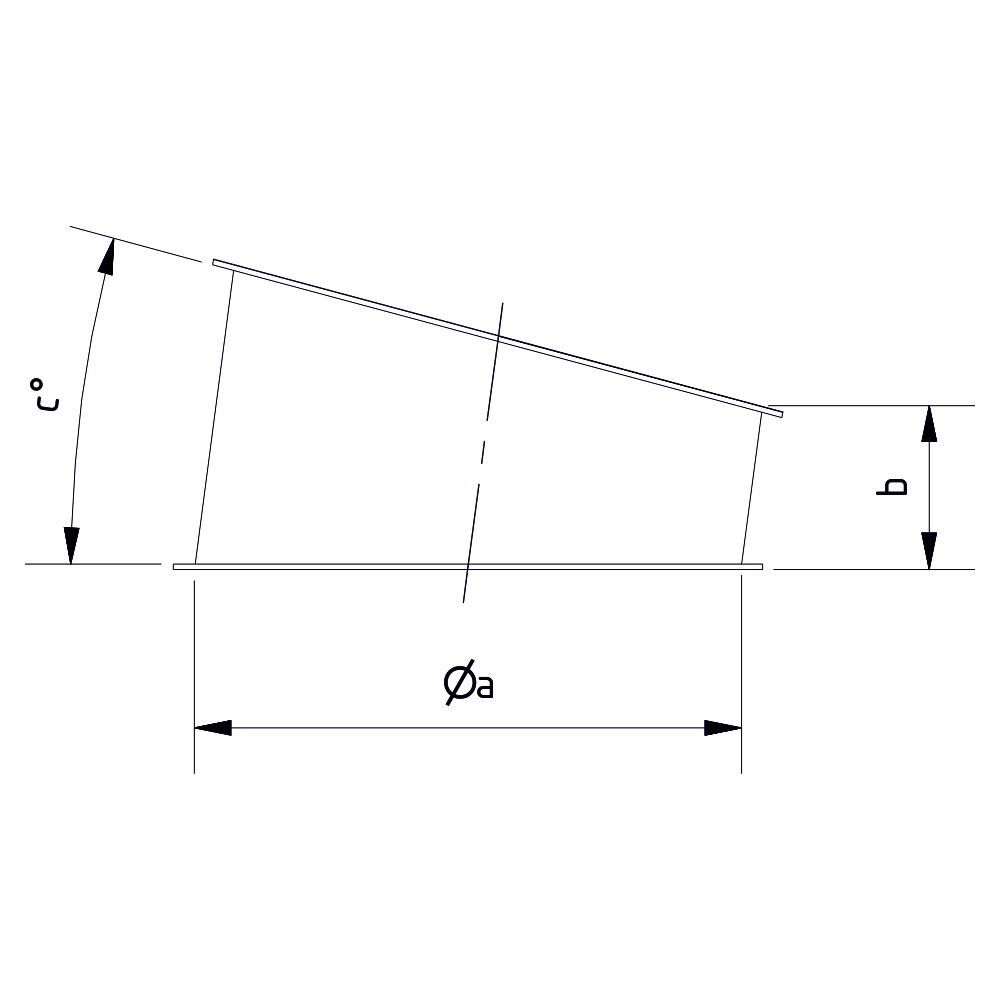

TypeArticlenumberOld Articlenumberabckg
DN 150 1,5mm vz. 1001088 4010015015667 149 mm 39 mm 30° 0,6
DN 150 2mm vz. 1001092 4010015015672 149 mm 39 mm 30° 0,7
DN 175 2mm vz. 1001163 4010015015784 174 mm 39 mm 30° 1,0
DN 200 2mm vz. 1001096 4010015015682 199 mm 39 mm 30° 1,1
DN 250 2mm vz. 1001104 4010015015692 249 mm 39 mm 30° 1,5
DN 300 2mm vz. 1001143 4010015015750 299 mm 39 mm 30° 2,0
DN 350 2mm vz. 1000841 (*) 4010015015842 349 mm 39 mm 30° 5,1
DN 400 2mm vz. 1000842 (*) 4010015015843 399 mm 39 mm 30°
DN 200 3mm vz. 1001100 4010015015687 199 mm 39 mm 30° 1,6
DN 250 3mm vz. 1001108 4010015015697 249 mm 39 mm 30° 2,2
DN 300 3mm vz. 1001119 4010015015719 299 mm 39 mm 30° 3,0
DN 350 3mm vz. 1001169 (*) 4010015015790 349 mm 39 mm 30° 8,0
DN 400 3mm vz. 1001170 (*) 4010015015791 399 mm 39 mm 30° 10,0
DN 200 3mm pb. 1001192 4010015015813 199 mm 39 mm 30° 1,6
DN 250 3mm pb. 1001193 4010015015814 249 mm 39 mm 30° 2,2
DN 300 3mm pb. 1001194 4010015015815 299 mm 39 mm 30° 3,0
DN 350 3mm pb. 1001195 (*) 4010015015816 349 mm 39 mm 30° 8,0
DN 400 3mm pb. 1001196 (*) 4010015015817 399 mm 39 mm 30° 10,0

You can find instruction manuals under the following link: Instruction manuals
